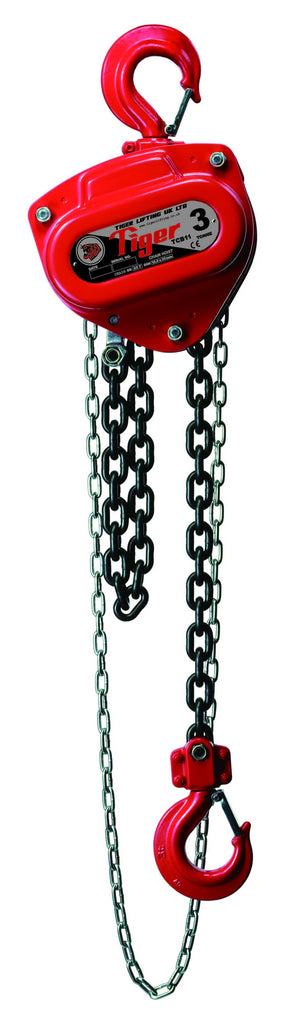

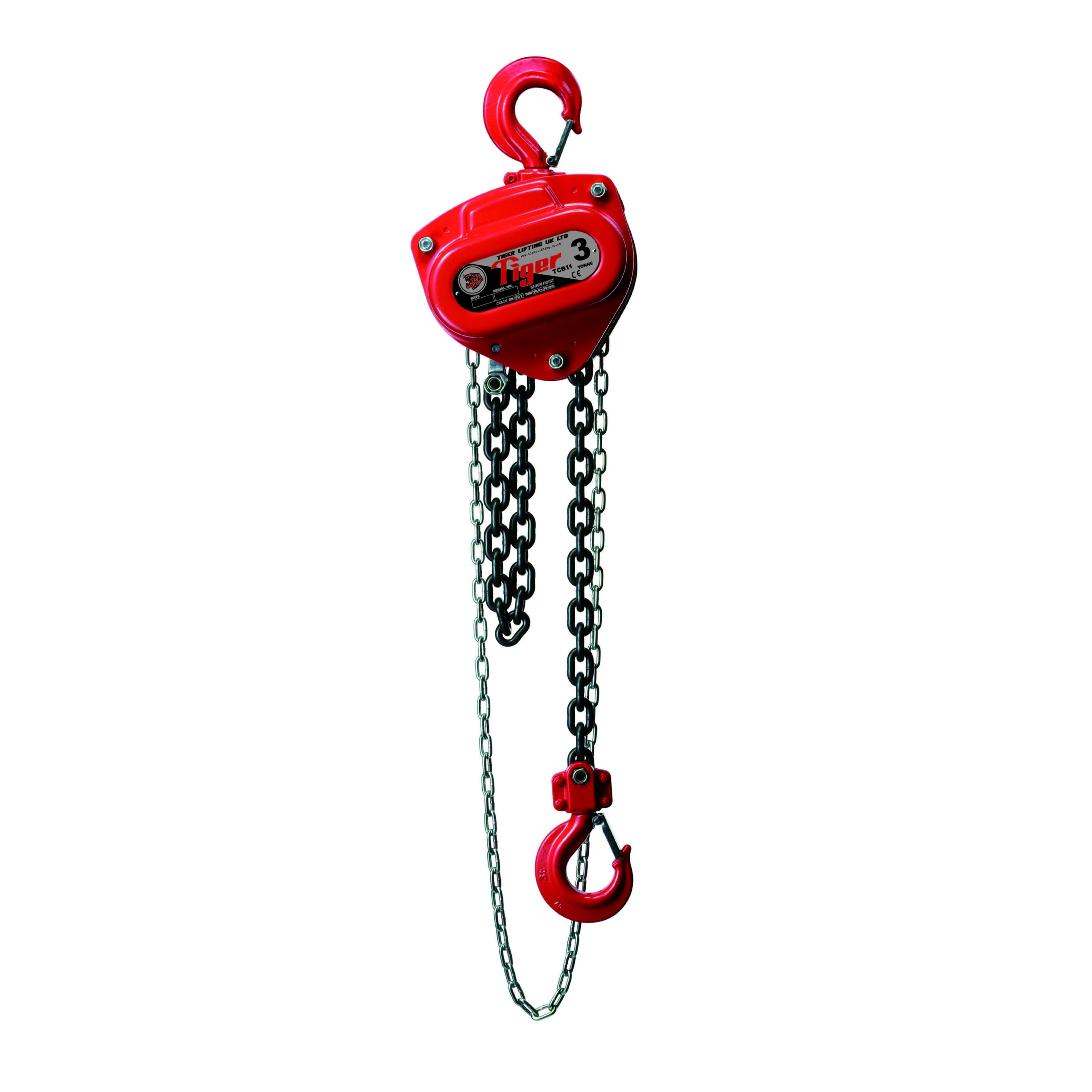

TIGER CHAIN BLOCK PROCB, 20.0t CAPACITY with WLL
The PROCB14 is manufactured from the highest quality steel materials, offering a lightweight, compact and rugged construction, producing an exceptionally strong product resistant to impact damage. The exceptional short head room allows for easy installation where every centimetre must be achieved. Using only the highest quality materials precisely machined in our own factory, the TCB is the ideal block for long term use with less maintenance and servicing costs. These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009, ANSI/ASME B30.16, AS1418.2 and SANS 1594.
DNV GL Verification tested according to NORSOK R-002
- Range from 500kg – 30000kg
- Rugged steel body construction
- Drop forged & heat treated alloy hooks
- Certified 2% light load protection
- Proof tested to 1.5 times rated capacity
- Suitable for underground mining use
- Available with stainless steel load chain
- Available with forged clevis adaptor components
- Lightweight and portable
- High quality alloy calibrated load chain
- Heat treated alloy steel triple spur gears and pinion shaft
- Can be chained to meet your exact requirements
- Tested and certified for “fleeting” and “cross-hauling” applications up to 45°
- Meets or exceeds all international standards
- 8t, 15t and 30t capacity units available
- Double cover protection for brake chamber
- Safe reliable twin pawl mechanical brake
- Operating temperature of -40°C to +50°C
- Individual spares readily available
- Overload protection available
