Tiger SGT Screw Bar Geared Trolley

Name: Tiger SGT Screw Bar Geared Trolley
Brand: Tiger Products
SKU: 245-1-1
Price: 93.00 GBP
Availability: InStock

Tiger Products SKU: 245-1-1

1 1

Tiger SGT Screw Bar Geared Trolley Versatile all-purpose geared travel trolley for use with any hook suspended hoist Load Capacity: Range from 0.5t to 5.0t Smooth Operation: Wheels run on sealed bearings... Read More

£93.00

Sale TODAY'S PRICE £93.00

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more tiger industrial range hoists trolleys

Description

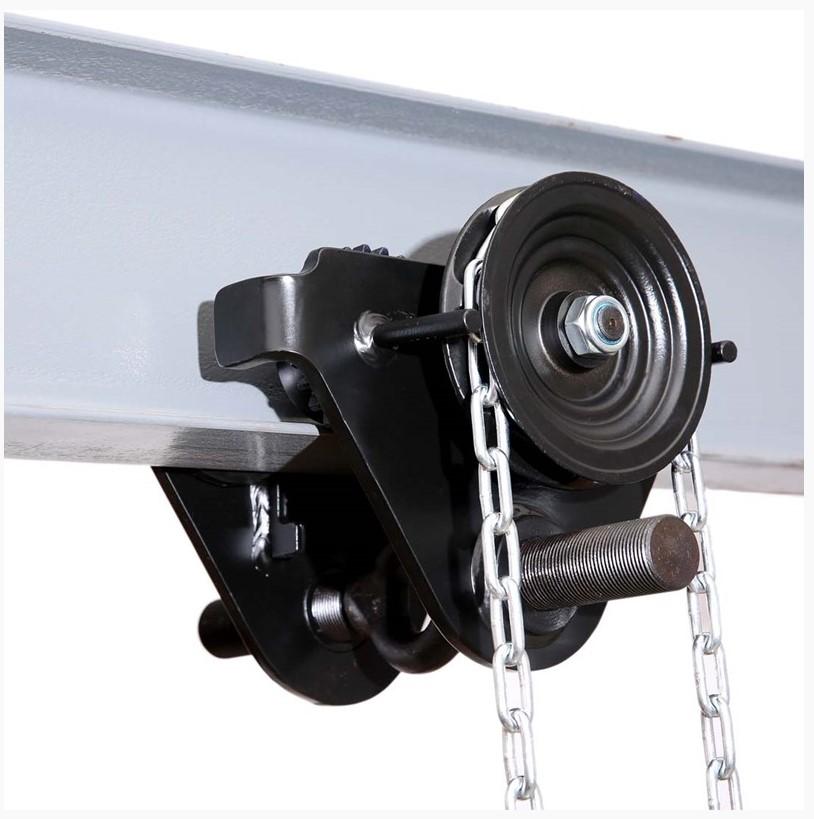

Tiger SGT Screw Bar Geared Trolley

Versatile all-purpose geared travel trolley for use with any hook suspended hoist
Load Capacity: Range from 0.5t to 5.0t
Smooth Operation: Wheels run on sealed bearings for smoother rolling with less effort and maintenance
Geared Type: Comes with a hand chain length tailored to your requirements
Safety Factor: 4:1 factor of safety allows for use with manual or powered hoists
Safety Features: Anti-drop plates design ensures extra safety and prevents damage to the wheels when contacting end rail stoppers

Specification

SKU	CAPACITY (TONNE)	D - TRACK WIDTH		DIMENSIONS (MM)									MIN. CURVE RATIO (M)	NET WEIGHT (KG)	TECHNICAL DRAWING
SKU	CAPACITY (TONNE)	RANGE 1 (MM)	RANGE 2 (MM)	A	B	C	E	F	G	H	J	K	MIN. CURVE RATIO (M)	NET WEIGHT (KG)	TECHNICAL DRAWING
245-1-1	0.5	50-220		300	210	190	33	3				25	TBA	9.0
245-1-2	1.0	64-220		300	260	211	31	3				30	1.0	13.0
245-1-3	2.0	88-220		310	310	236	32	3				40	1.1	20.5
245-1-4	3.0	102-220		320	390	295	46	3				48	1.3	30.0
245-1-5	5.0	114-220		330	450	334	47	3				60	1.4	45.0
