TIGER HORIZONTAL PLATE CLAMP - CPH (Pair)

Name: TIGER HORIZONTAL PLATE CLAMP - CPH (Pair)
Brand: Tiger Products
Price: 158.76 GBP
Availability: OutOfStock

Tiger Products SKU: 240-2-1

1 4

We stock Tiger Horizontal Plate Clamp on next day delivery. Take a look at our products today. Read More

£158.76

Sale TODAY'S PRICE £158.76

Out of stock (0)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

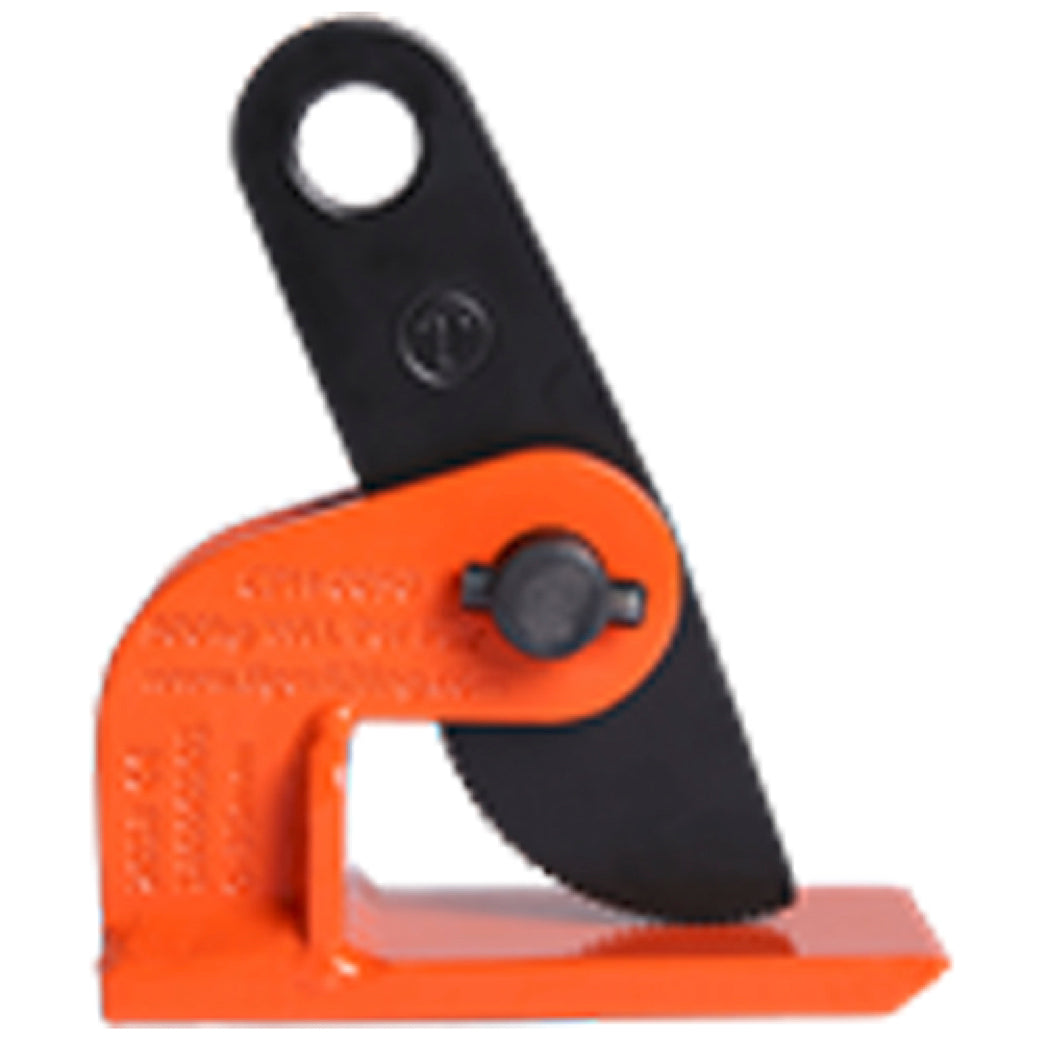

The Tiger CPH clamp is a horizontal lifting clamp intended to be used in pairs, sets of pairs, or in a tripod arrangement for transporting steel plates horizontally. They can be used to lift all types of materials in plate form providing that the plate can withstand the forces imposed on it. These clamps are only suitable for lifting single plates with a surface hardness below 300 Brinell (HB) / 32 Rockwell C (HRC).

*The capacities shown in the table are based on a set of two clamps.

Prices are per pair

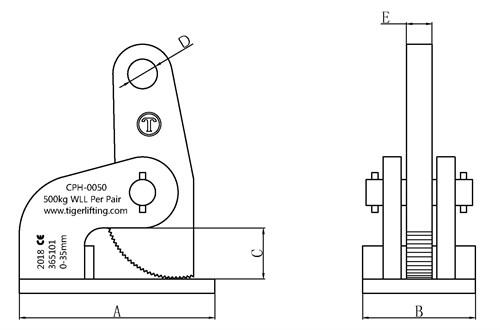

	Product Code	Capacity* (tonne)	Dimensions (mm)						Net Weight (kg)
SKU	Product Code	Capacity* (tonne)	Jaw Opening C (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Net Weight (kg)
240-2-1	CPH-0050	0.5t	0-35	140	65	38	20	16	2.3
240-2-2	CPH-0100	1.0t	0-60	180	80	68	25	16	5.8
240-2-3	CPH-0200	2.0t	0-60	180	80	68	25	16	6.7

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with our sales team when ordering.
