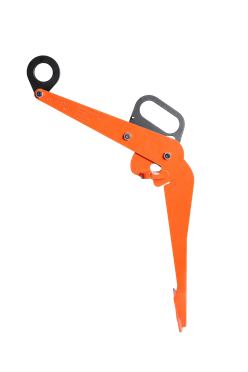

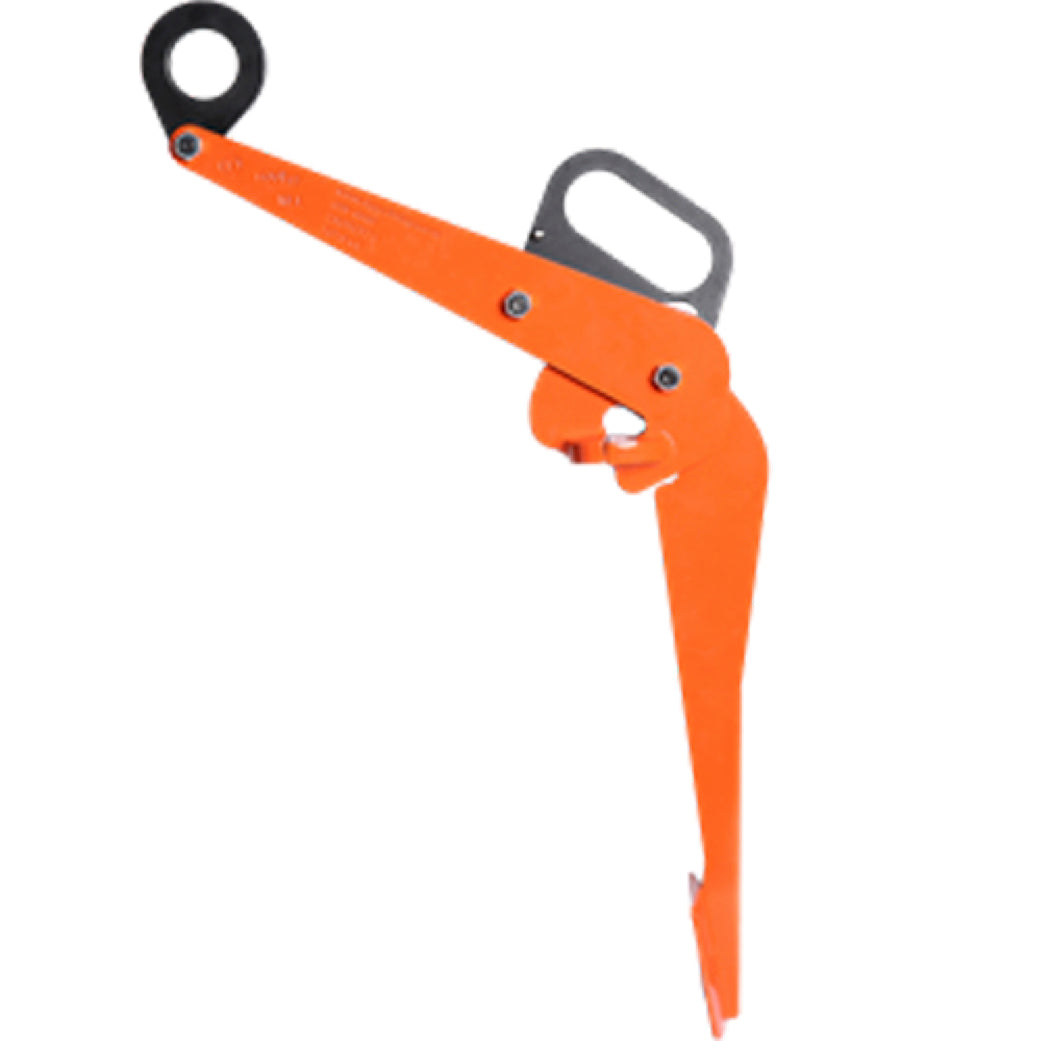

TIGER VERTICAL DRUM CLAMP - CDV Ref: 240-7
Features and benefits:
- Lightweight design for easy handling in tight spaces between other drums
- Tough quality heavy duty welded shell body
- Equipped with a manual safety lock mechanism so that the clamp is locked in the open position
- Maintenance-friendly, easy to exchange parts which are available upon request
|
Product Code
|
Capacity (tonne)
|

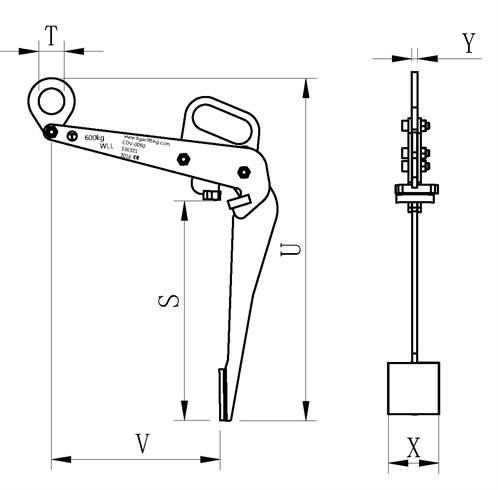

Dimensions (mm)
|
Net Weight (kg)
|
SKU |
U
(mm)
|
S
(mm)
|
V
(mm)
|
T
(mm)
|
X
(mm)
|
Y
(mm)
|
240-7-1 |
CDV-0060
|
0.6t
|
765
|
434
|
305
|
50
|
100
|
12
|
7.0
|
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
