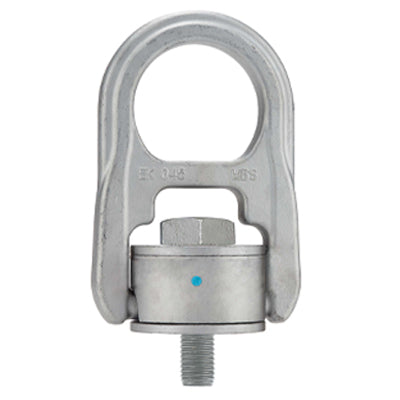

YOKE Digital Hoist Ring - UNC Thread
- Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction
- Manufactured from forged alloy steel, quenched and tempered
- Manufactured and tested in accordance with EN1677-1
- Load rated parts are 100% magnaflux crack detected
- Individual forged parts and cap screw are traceable to Test Certification
- Bolts are UNC thread
- Proof tested to 2.5 times the WLL
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
- Quick and simple assembly, just a tapped hole is required
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
Spec
SKU |
Capacity (t) |
Bolt Size (inch) |
Torque (lbs) |
Weight (kg) |
276-9-1 |
0.4 |
5/16" |
7 |
0.41 |
276-9-2 |
0.5 |
3/8" |
12 |
0.41 |
276-9-3 |
1.25 |
1/2" |
28 |
1.67 |
276-9-4 |
2
|
5/8" |
60 |
1.8 |
276-9-5 |
2.5
|
3/4" |
100 |
1.8 |
276-9-6 |
3.5
|
3/4" |
100 |
3.96 |
276-9-7 |
4
|
7/8" |
160 |
4.19 |
276-9-8 |
5
|
1" |
160 |
4.28 |
276-9-9 |
7.5
|
1 1/4" |
470 |
6.53 |
276-9-10 |
12 |
1 1/4" |
800 |
15.84 |
276-9-11 |
15
|
2" |
1100 |
15.84 |
