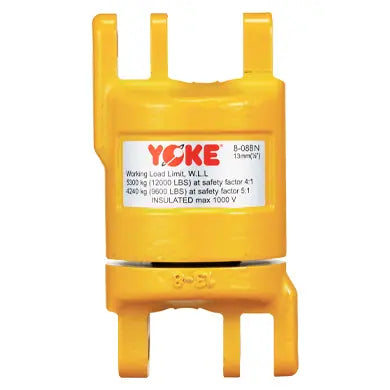

YOKE G80 Insulated Blank Swivel
- Design factor 4:1 proof tested and certified
- With ball bearing
- Individually tested to resist 1000 Volts insulated with Test Certificate
- Designed for the protection of overhead cranes during welding operations on suspended loads
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
Spec
SKU |
Capacity (t) |
For Grade 80 Chain (mm) |
Weight (kg) |
276-11-1 |
2 |
7, 8 |
0.7 |
276-11-2 |
3.15 |
10 |
1.3 |
276-11-3 |
5.3 |
13 |
2.7 |
276-11-4 |
8 |
16 |
4.7 |
276-11-5 |
12.5 |
18, 20 |
7 |
