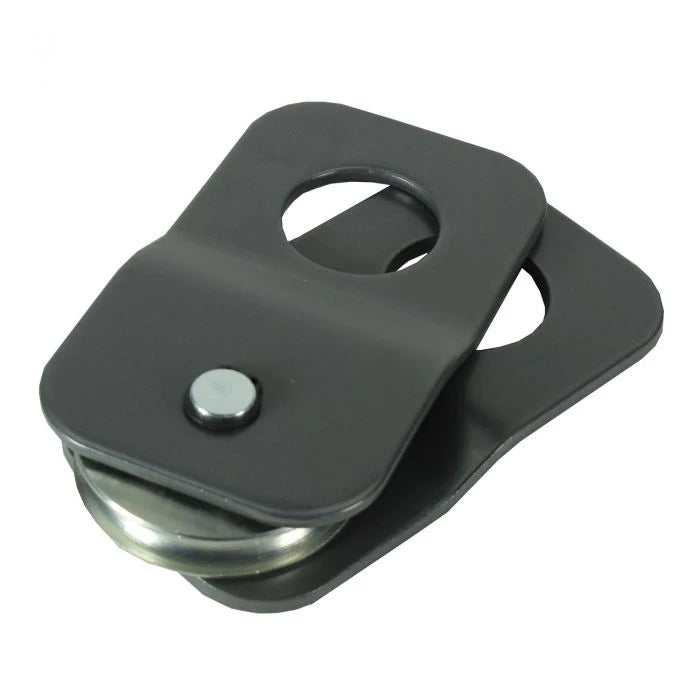

Warrior 4t Swing Away Pulley Block
For use with cable ' (Equal to or less than) 10mm Diameter.
Suitable for 4500-9500lbs Spartan & Samurai
This heavy duty 4 ton pulley block is suitable for both steel and synthetic* ropes up to 7mm. The main body is coated with a tough powder coated finish and the roller is finished with a durable zinc/galvanised finish. This is a great piece of equipment for use by ATV and small 4x4's.
A very important piece of equipment for anyone taking a vehicle off road.
Spec
- Overall Size = 145mm x 78mm x 25mm
- Hole Size = 38mm
- Roller Size = 65mm
- Pin Size = 14mm
- Maximum Capacity 4000 kg
* It is important tat a pulley with a damaged roller must not be used with a synthetic rope as it could possibly damage the cable
