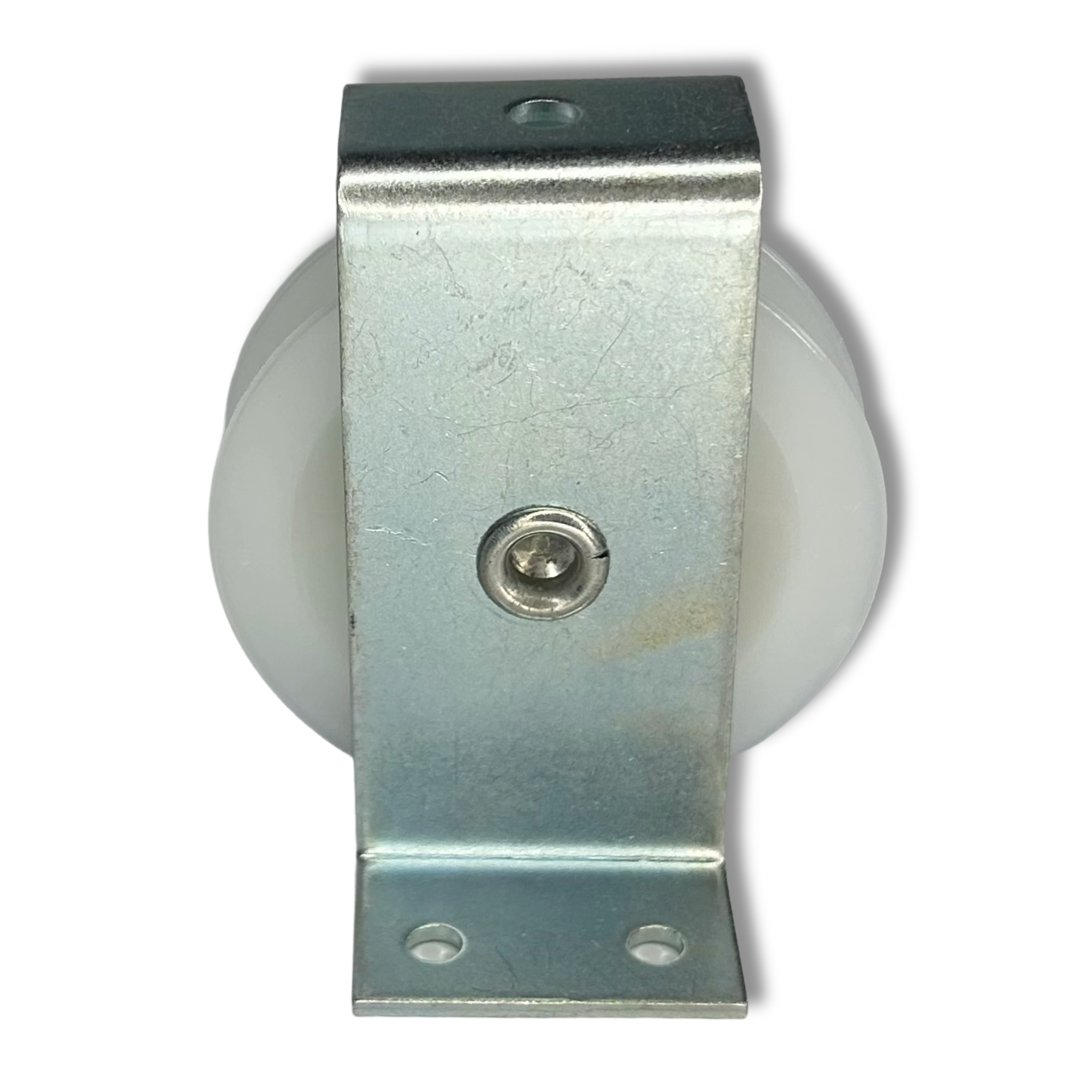

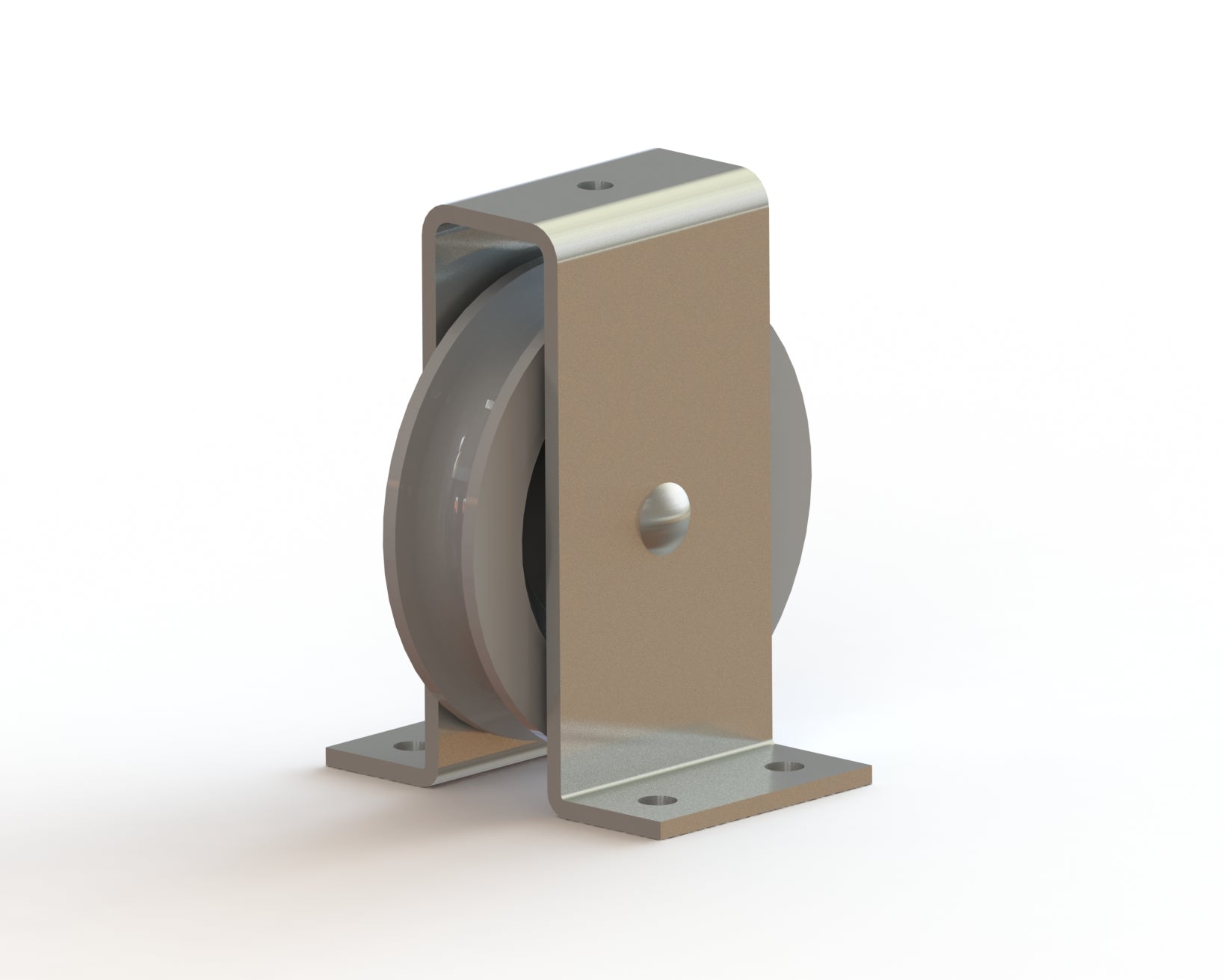

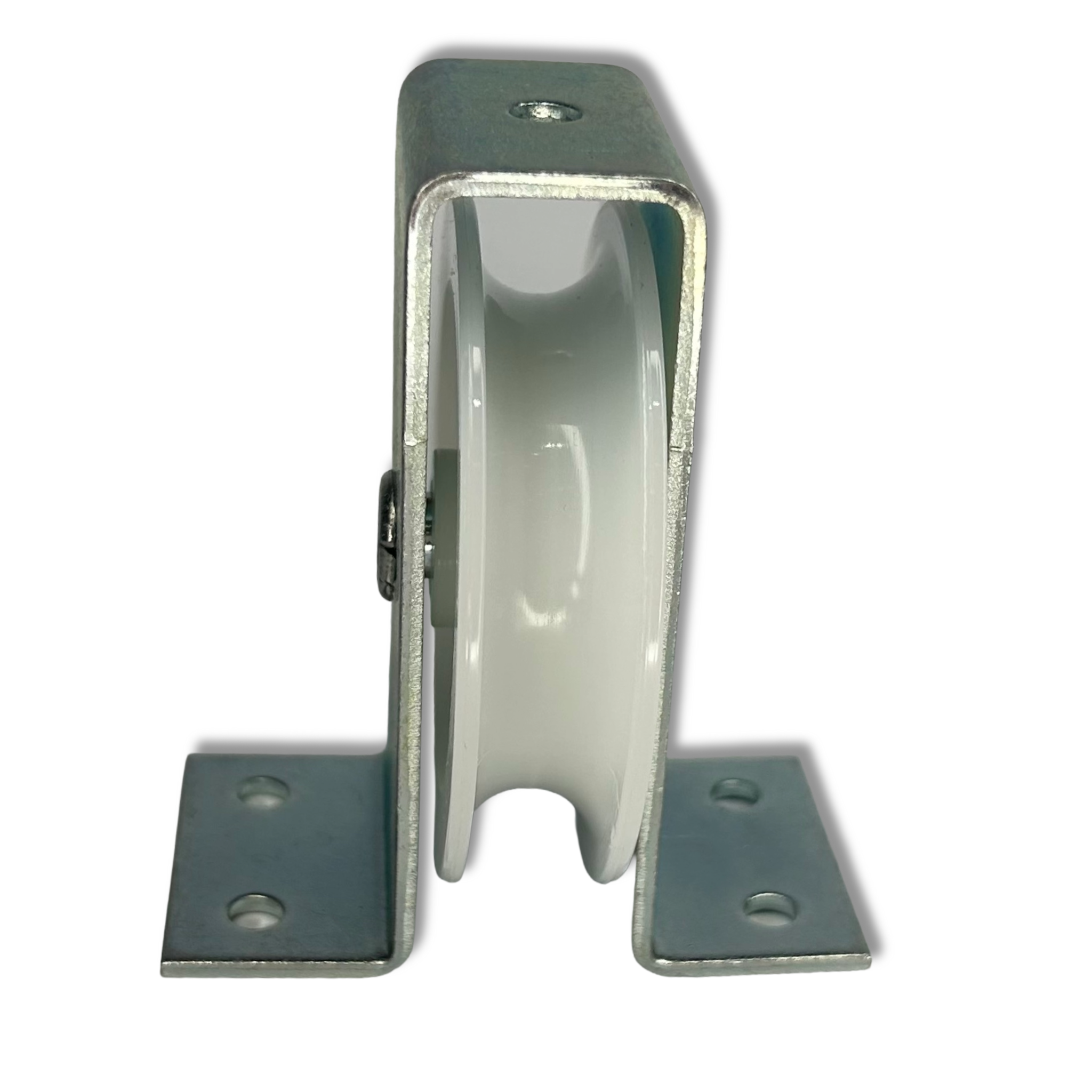

WEBI Pulley Type ETT-156P - Polymide (Nylon) Pulley with Galv Bracket (ETTER) - Ref: 155-11
- WEBI Polyamide (Nylon) pulley with plain bearing and galvanised bracket Type ETT-156P
- Capacities from 30kg -to 90kg
- 5 models, to suit 8mm - 12mm wire rope (see specification PDF for full details)
- Mounting hole diameter = 5mm
- For use with diversion of rope is required in winching applications
- SWISS MADE "ETTER"
- Five model types available from stock
- Suitable for applications in offshore, gas & oil, utliities, water treatment works

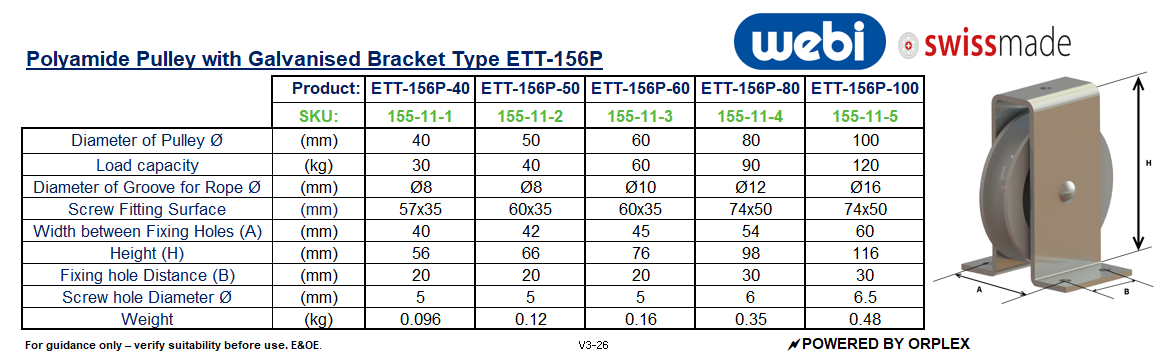

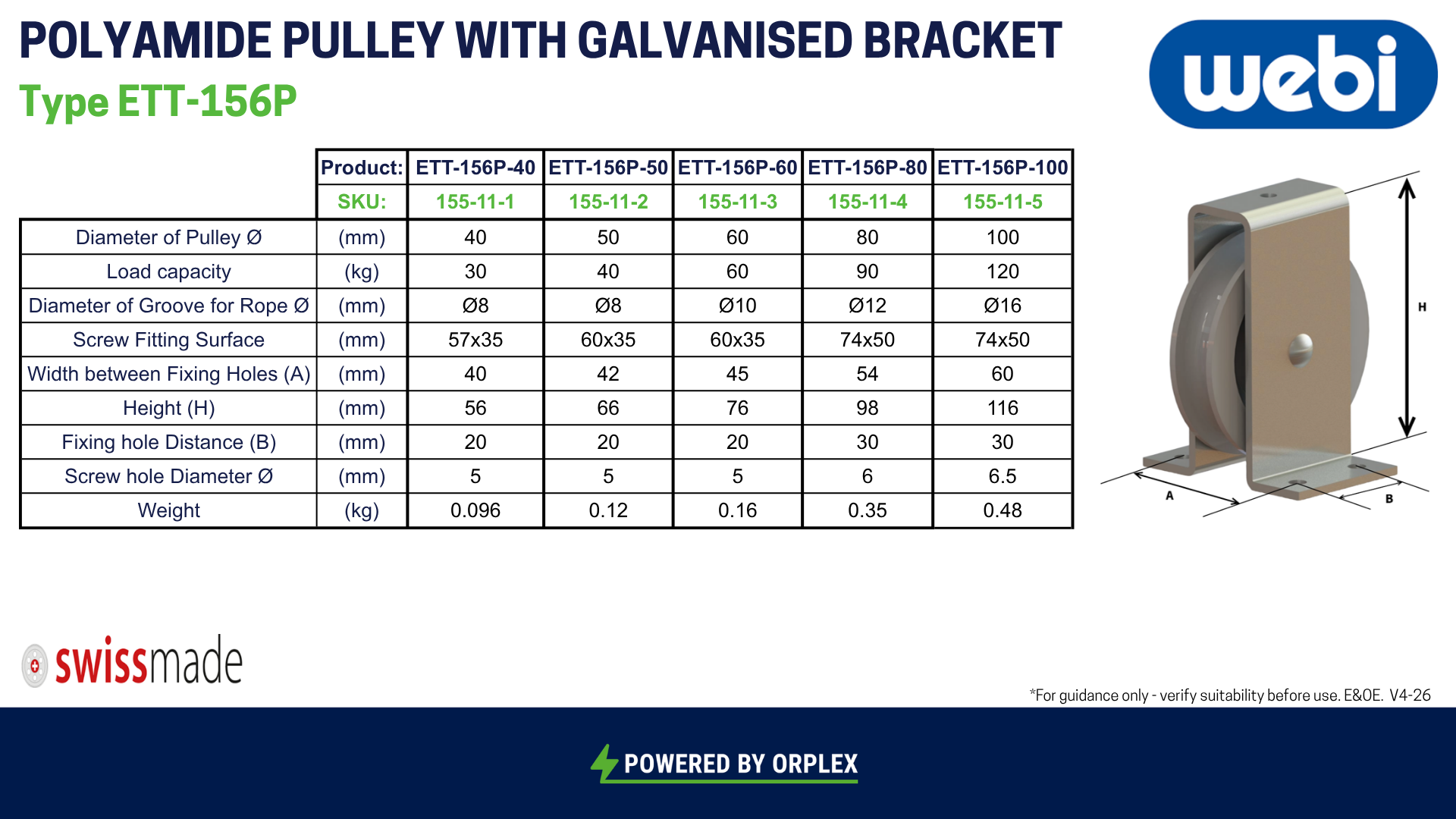

Spec
Model |
Capacity |
Pulley Diameter |
Rope Diameter |
Weight |
155-11-1 |
30 kg |
40 mm |
8 mm |
0.09kg |
155-11-2 |
40 kg |
50 mm |
8 mm |
0.12kg |
155-11-3 |
60kg |
60 mm |
10 mm |
0.12kg |
155-11-4 |
90kg |
80mm |
12 mm |
0.35kg |
155-11-5 |
TBC |
100mm |
TBC |
TBC |
Downloads
Pulley Cat 2018
Etter 156P Pulley Data Sheet
