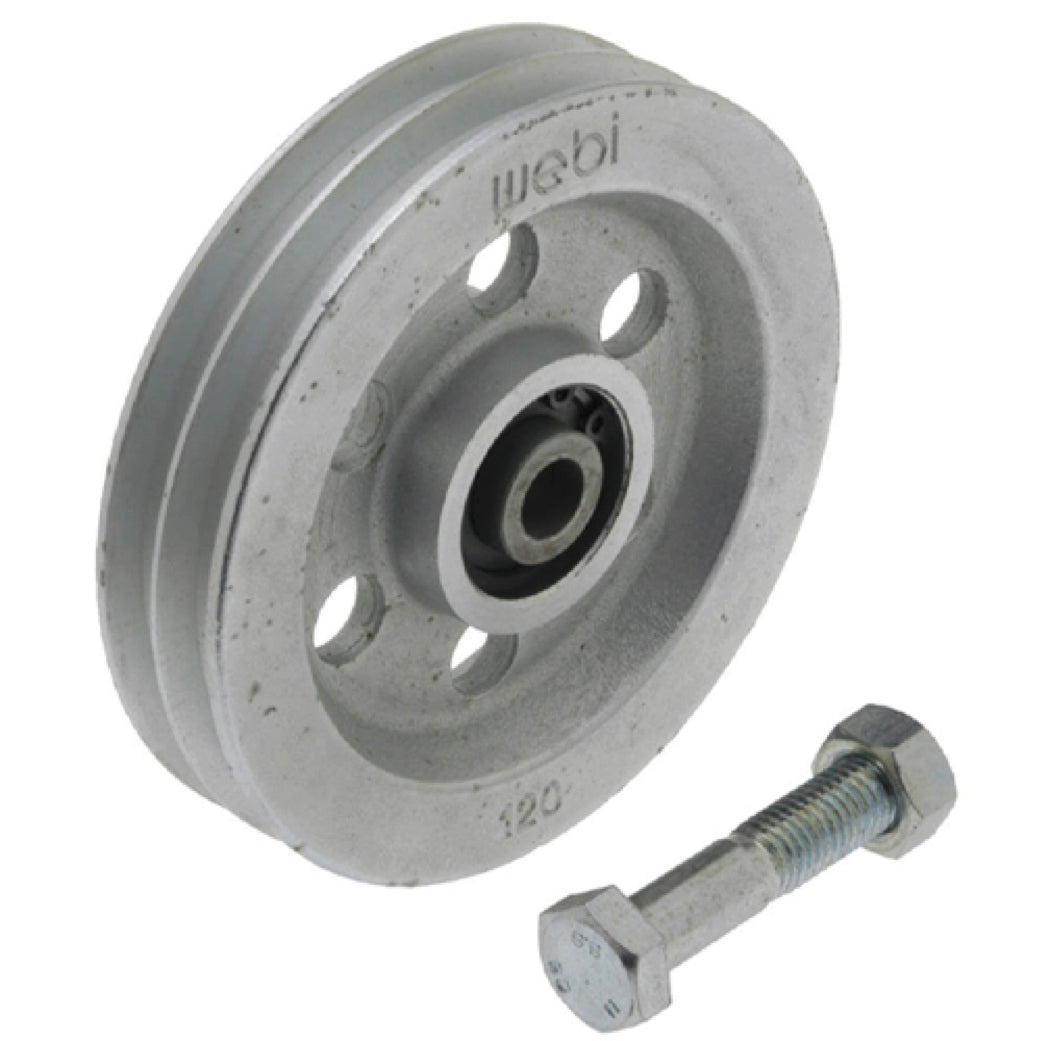

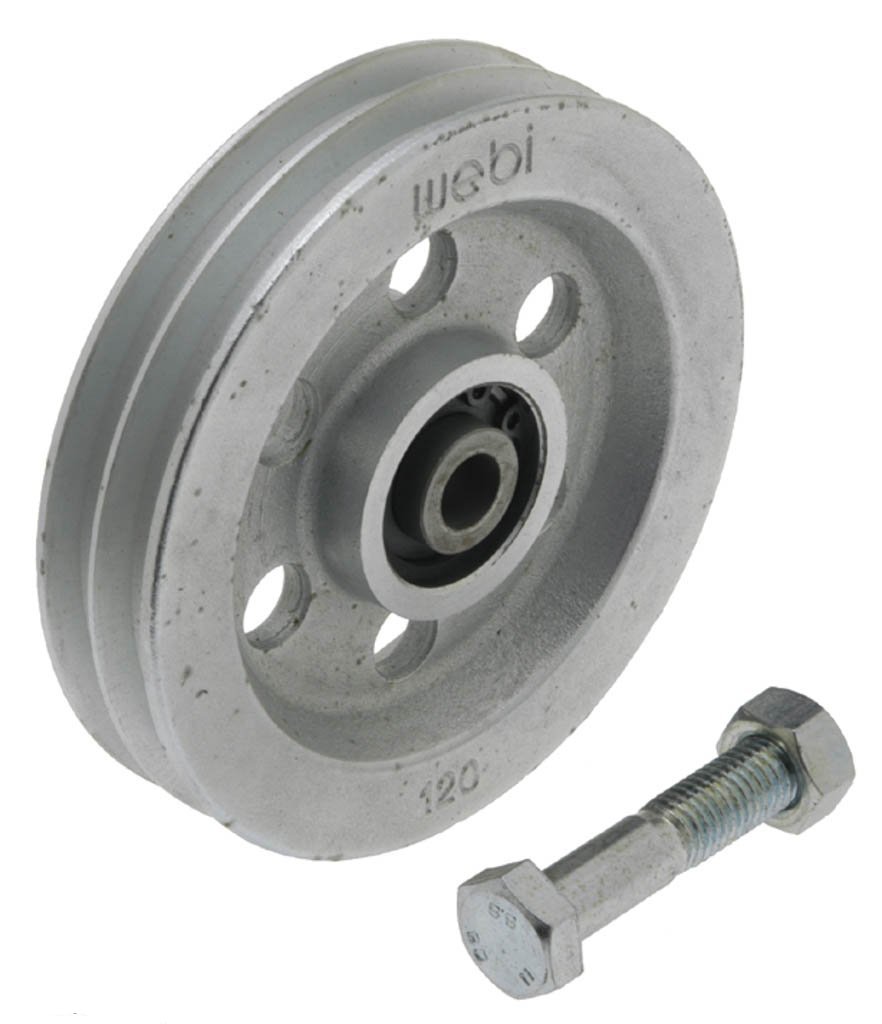

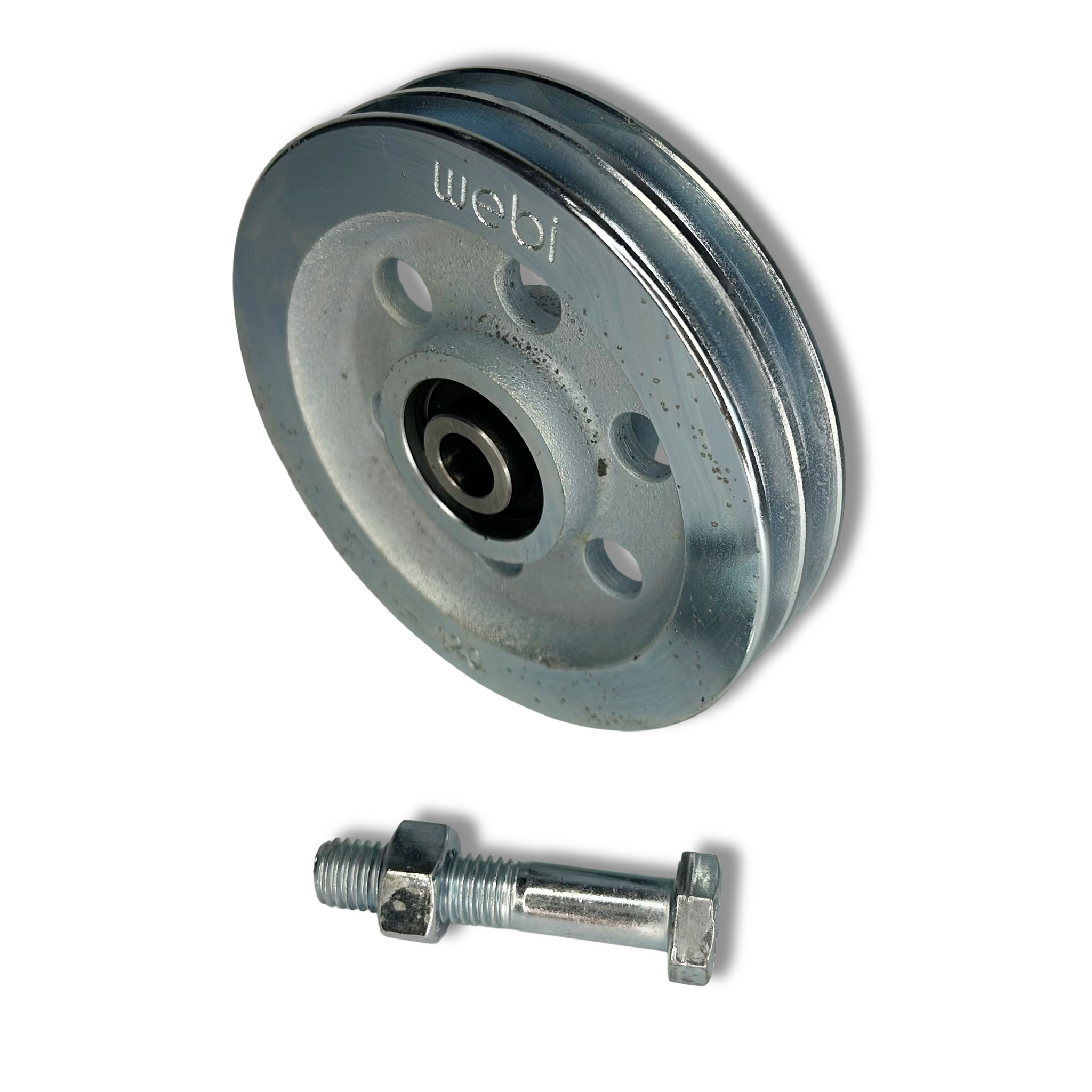

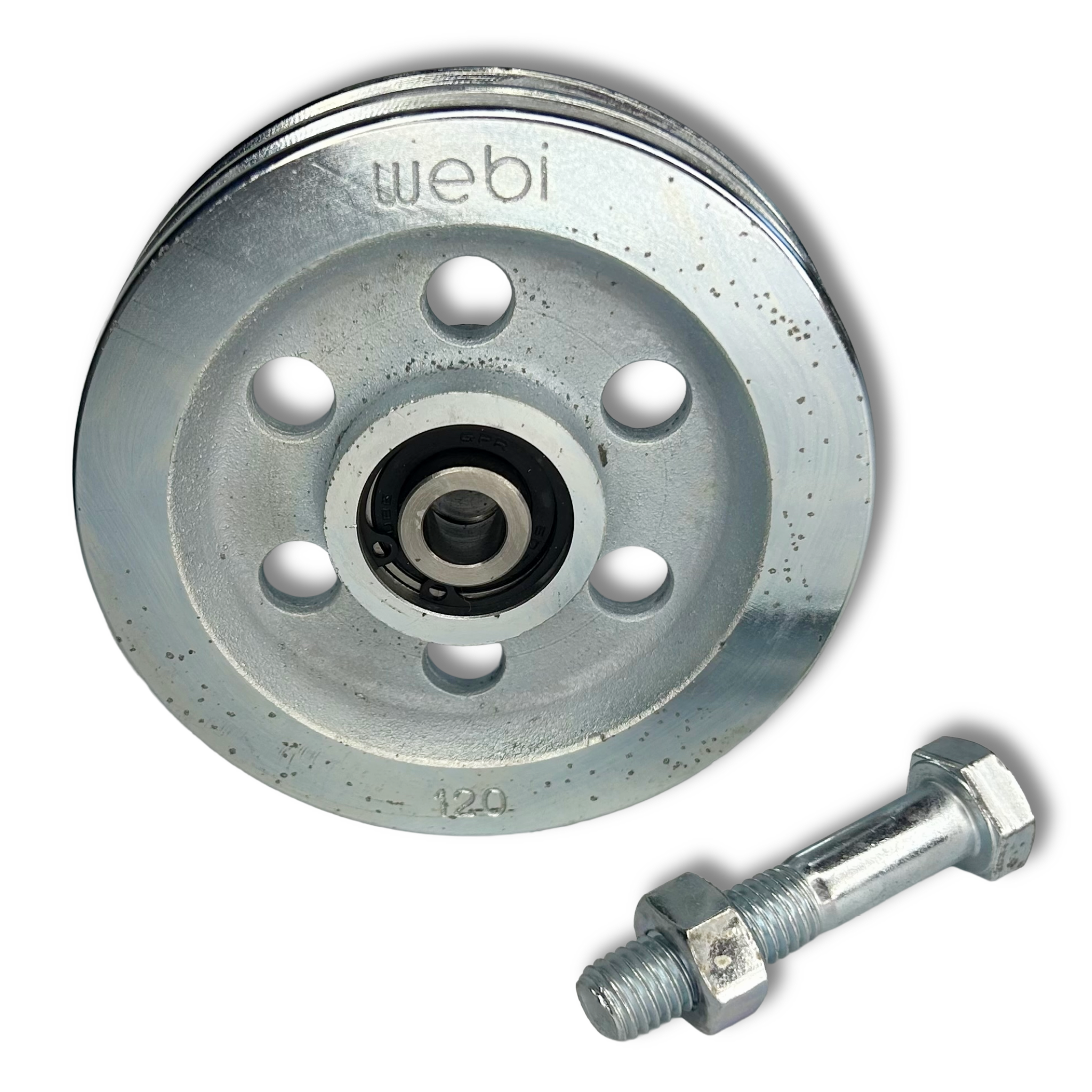

Galvanised Cast Iron Double Groove Pulley Type ETT-74D : 300-500kg
- WEBI Pulley / Sheave with double groove complete with bearing and fixing bolt
- Material galvanised cast iron
- Complete with bearing and fixing bolt
- Material finish - galvanised cast iron
- Capacities from 300 kg to 800 kg
- To suit 5 mm - 6.5 mm wire rope (see specification PDF for full details)
- For use with manual and powered winches (any applications where rope needs to be diverted)
- SWISS MADE "ETTER"
- Four model types available from stock, with SKU155-5-5 (800kg model) available to pre-order by email enquiry to sales@rigginguk.co.uk

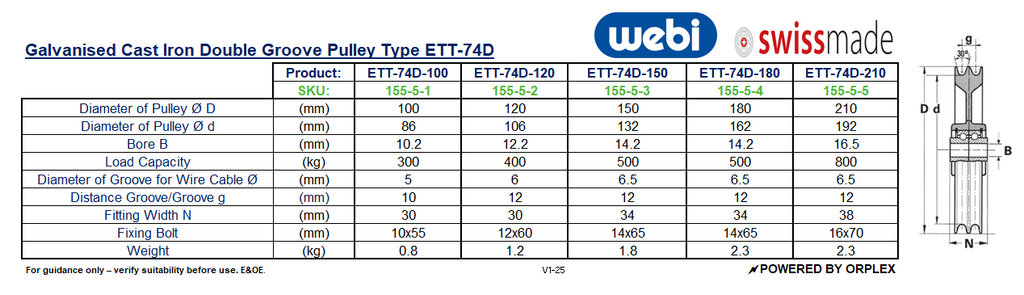

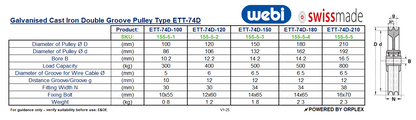

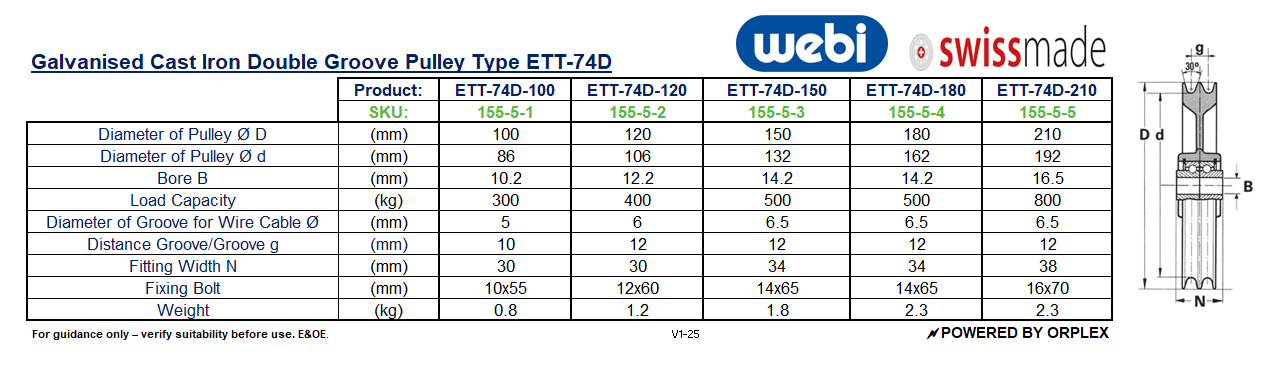

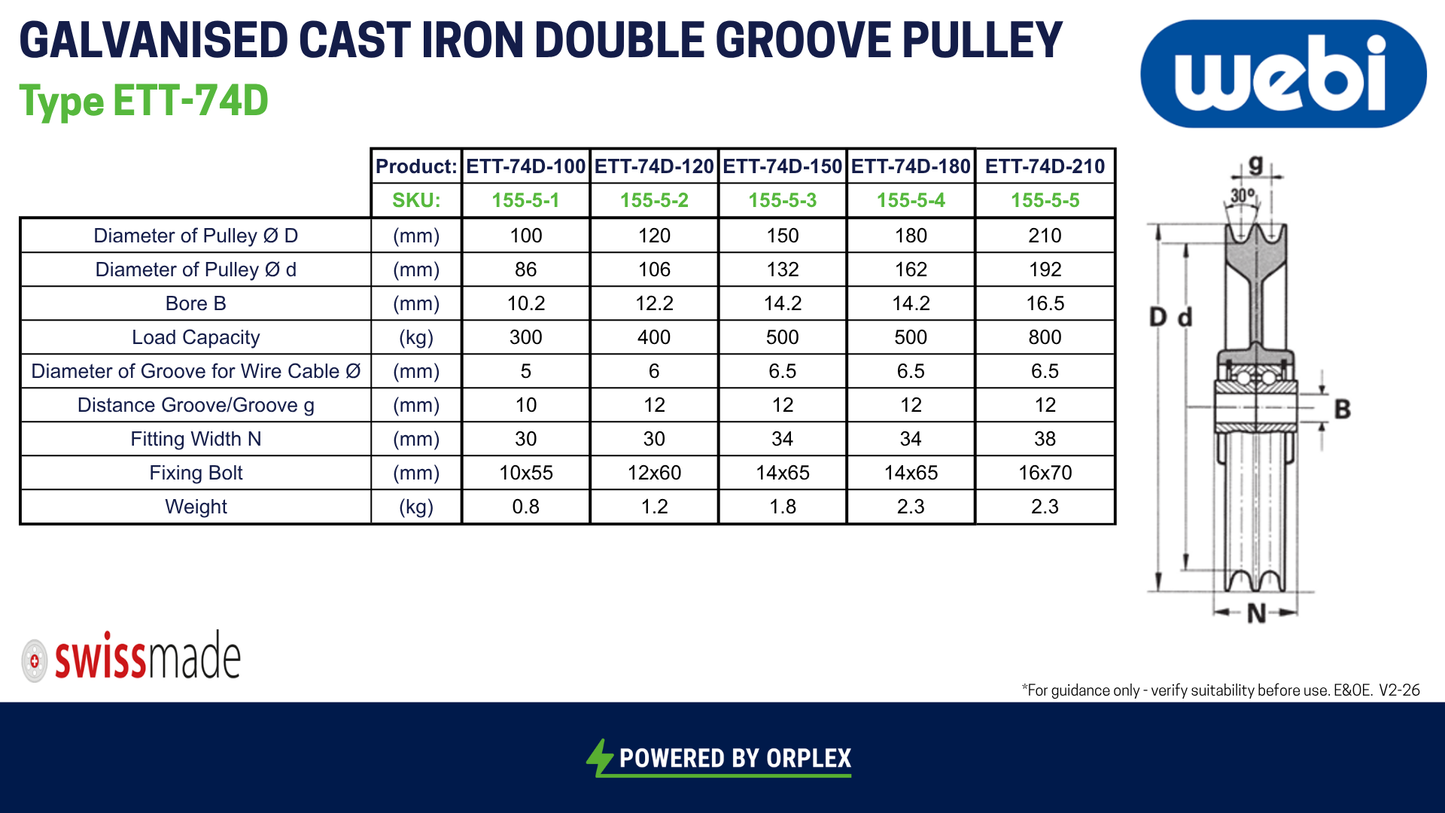

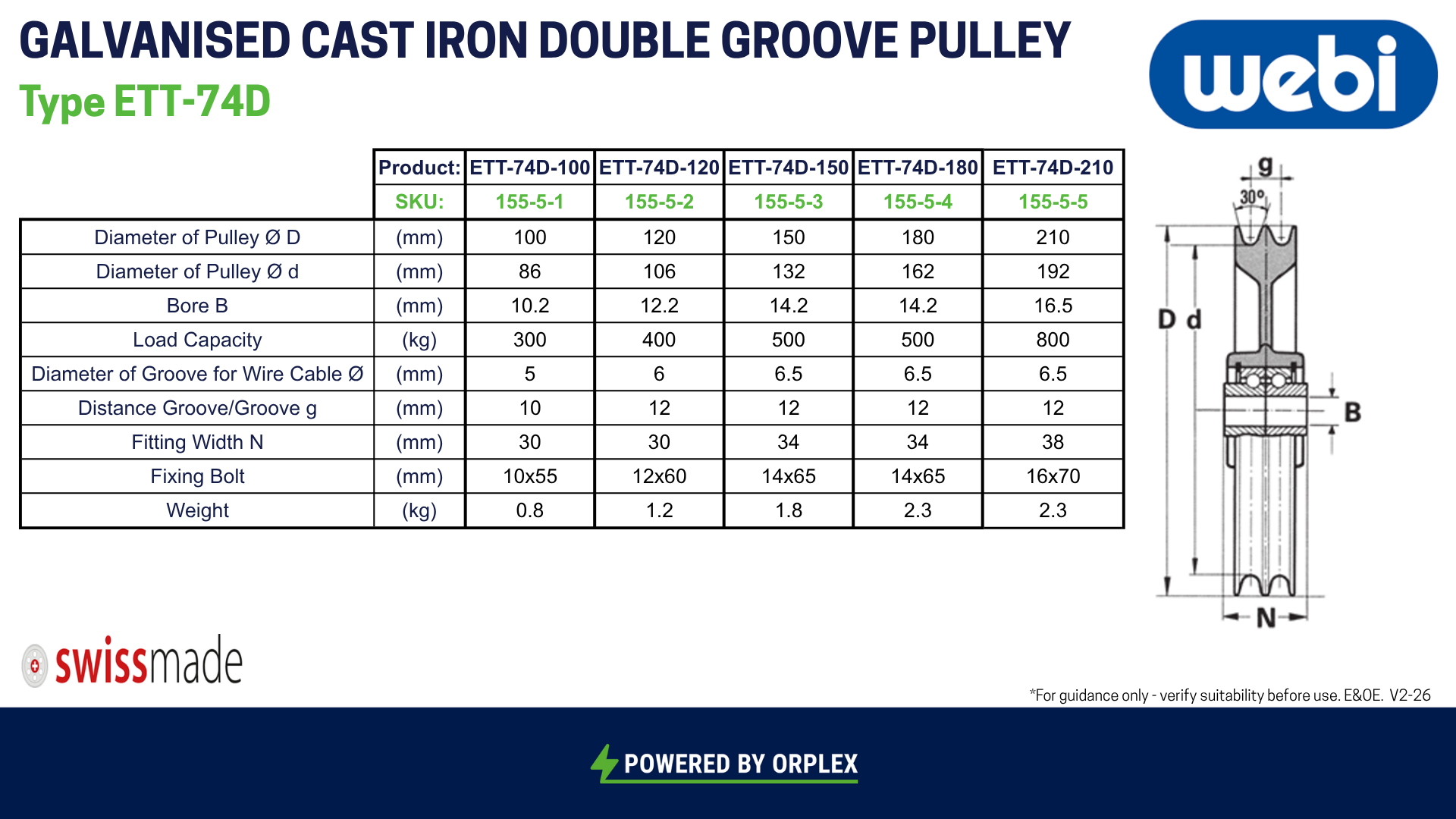

Spec
Model |
Capacity |
Pulley Diameter |
Rope Diameter |
155-5-1 |
300 kg |
100 mm |
5 mm |
155-5-2 |
400 kg |
120 mm |
6 mm |
155-5-3 |
500 kg |
150 mm |
6.5 mm |
155-5-4 |
500 kg |
180 mm |
6.5 mm |
155-5-5 |
800 kg |
210 mm |
6.5mm |
Downloads
Pulley Cat 2018
Etter 74D Pulley Data
