Wire Rope Commercial Thimble - Galvanised Finish

Wire Rope Commercial Thimble - Galvanised Finish

SKU: 286-809-1

Skip to product information
1 of 2

Green Pin

Wire Rope Commercial Thimble - Galvanised Finish

Wire Rope Commercial Thimble - Galvanised Finish

SKU: 286-809-1

Read More
Regular price £0.20
Regular price RRP Sale price TODAY'S PRICE £0.20

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

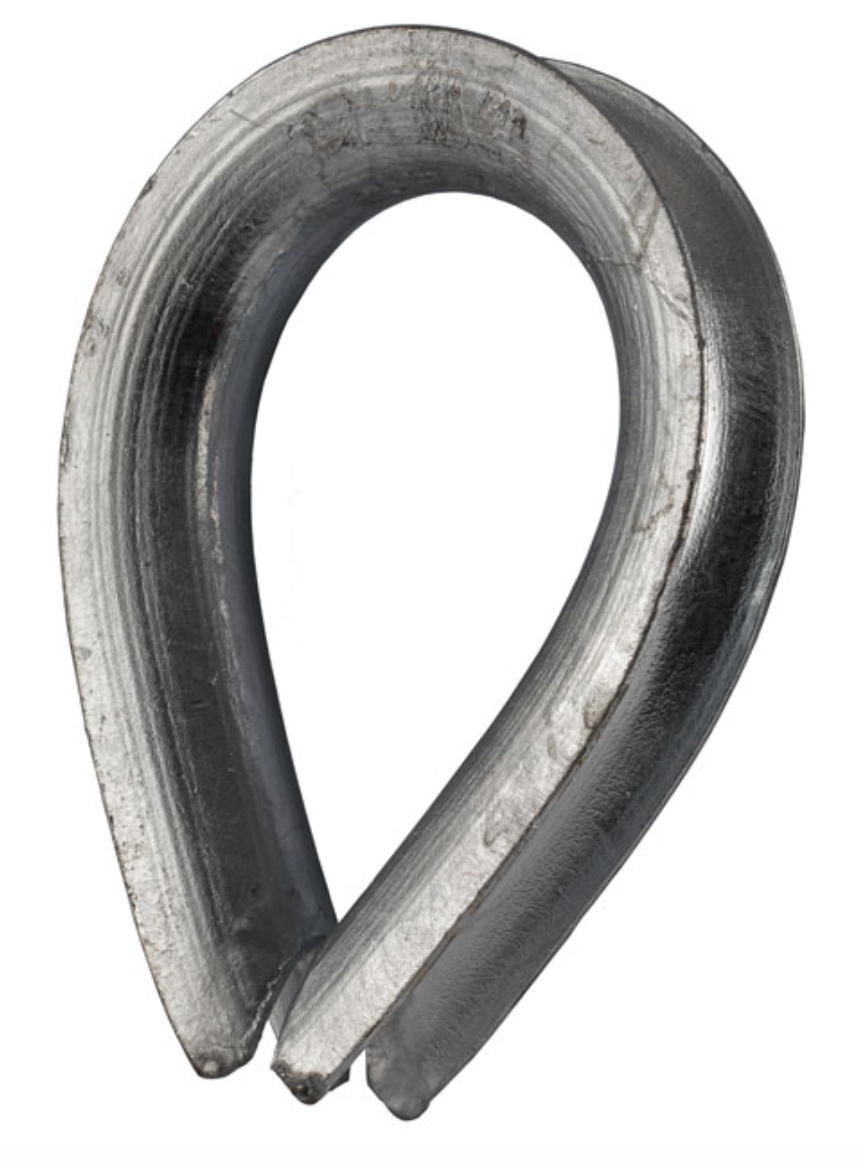

Wire Rope Commercial Thimble

  • Mild steel.
  • Electro galvanised finish.
  • For use with wire and fibre ropes.
  • Not for use in lifting applications.
  • Certification available

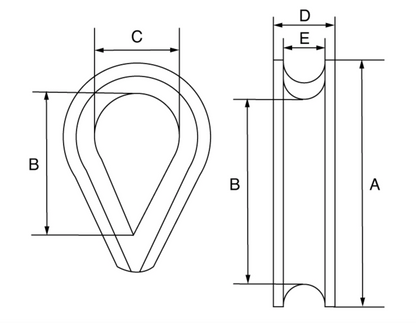

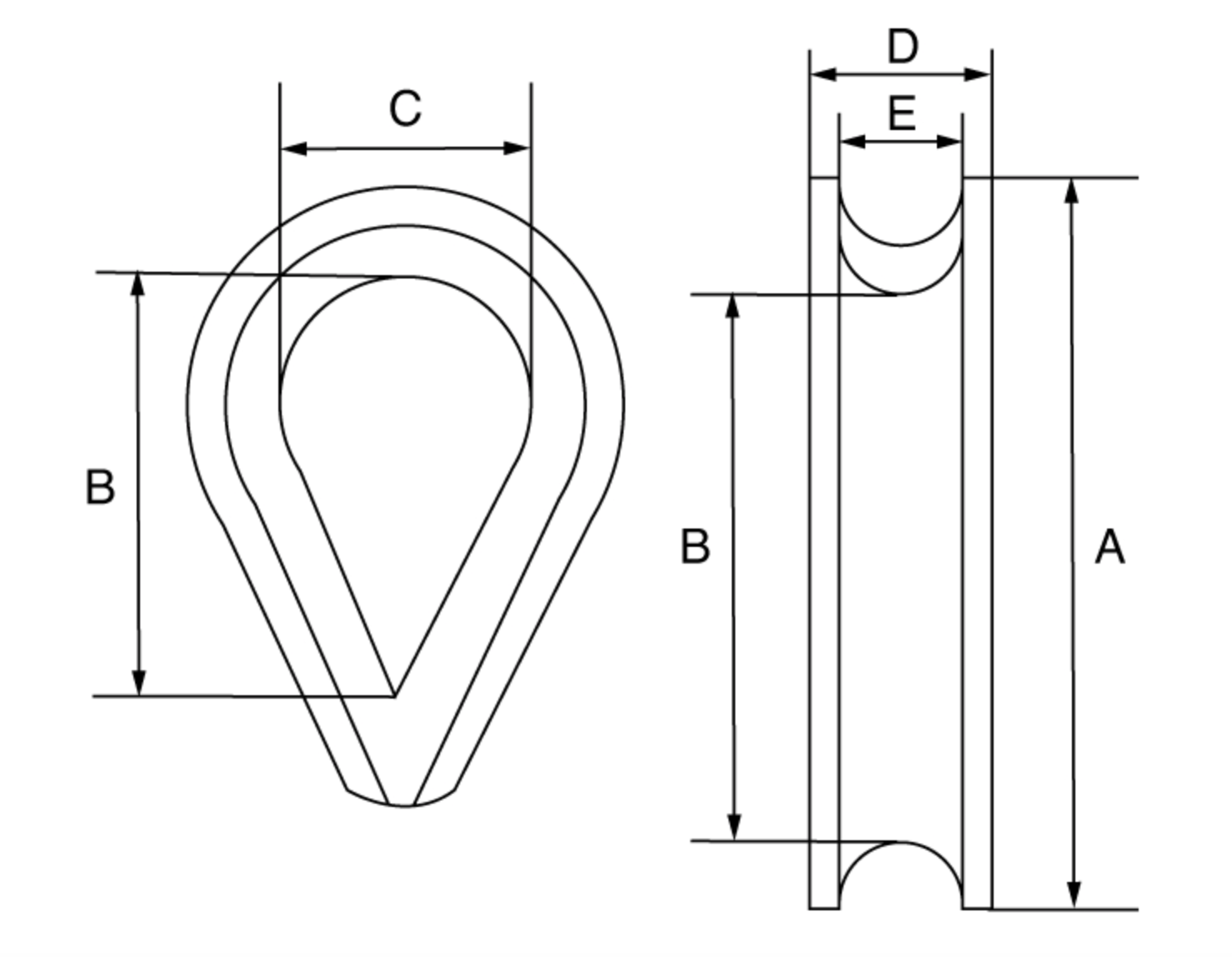

Spec



SKU
Rope Dia A B C D E Weight
mm mm mm mm mm mm kgs/100
286-809-1
4 30 21 13 7 4 0.4
286-809-2
5 33 23 14 8 5 0.8
286-809-3
6 39 25 16 10 6 1.4
286-809-4
7 43 28 18 11 7 1.8
286-809-5
8 51 38 24 12 8 2.8
286-809-6
10 54 46 30 14 10 4.8
286-809-7
12 76 57 38 18 12 8
286-809-8
14 82 60 40 20 14 10
286-809-9
16 89 64 42 22 16 15
286-809-10
18 102 69 45 26 18 22
286-809-11
20 115 79 51 28 20 25
286-809-12
22 127 89 54 30 22 32
286-809-13
24 140 102 64 34 26 46
286-809-14
26 152 105 64 34 28 66
286-809-15
28 165 115 73 38 30 77
286-809-16
30 178 121 79 44 32 80
286-809-17
32 203 133 93 46 34 130
