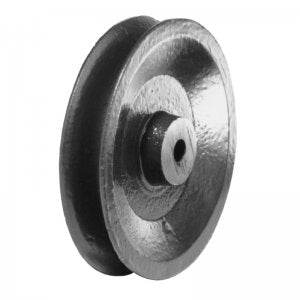

Wire Rope Sheaves made of Cast Iron (Model No. 167 )

Name: Wire Rope Sheaves made of Cast Iron (Model No. 167 )
Brand: ORPTECH
Price: 56.70 GBP
Availability: OutOfStock

ORPTECH SKU: 182-167-140

Pre-order today – estimated dispatch within 3–4 weeks

1 2

Wire Rope Sheaves made of Cast Iron (Model No. 167) Untreated groove, drilled shaft hole without bearing bush. Range of pulley capacity from 250kg to 2000kg Range of pulley diameter... Read More

View more orptech pulleys sheaves

More From orptech

Product variants

£56.70

Sale TODAY'S PRICE £56.70

Pre Order

Tax included. Shipping calculated at checkout.

Quantity

Buy from our EU store

Quotation Required :
For a quotation instead of pre-ordering, please email your request to sales@rigginguk.co.uk with your billing/shipping address and contact phone number.

Estimated build / lead-time
Approximately 3 to 4 weeks from order.

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

Wire Rope Sheaves made of Cast Iron (Model No. 167)

Untreated groove, drilled shaft hole without bearing bush.

Range of pulley capacity from 250kg to 2000kg

Range of pulley diameter 140mm to 250mm

Please note, these products have a lead-time of around 3 to 4 weeks from order date

Specification

SKU		182-167-140	182-167-200	182-167-250/1
Sheave External Ø	mm	140	200	250/1
Groove Base Ø	mm	100	140	185
Groove Radius	mm	3	4	6
Groove Depth	mm	20	30	32
Rim Width	mm	28	40	42
Bore for Bolt	mm	12	16	22
Hub Length	mm	35	45	50
Hub Ø	mm	35	35	35
Rope Ø Max.	mm	6	8	12
Load Capacity (in kg).	kg	250	1000	2000
Weight (in kg) approx.	kg	1.1	2.3	6.3
