Green Pin

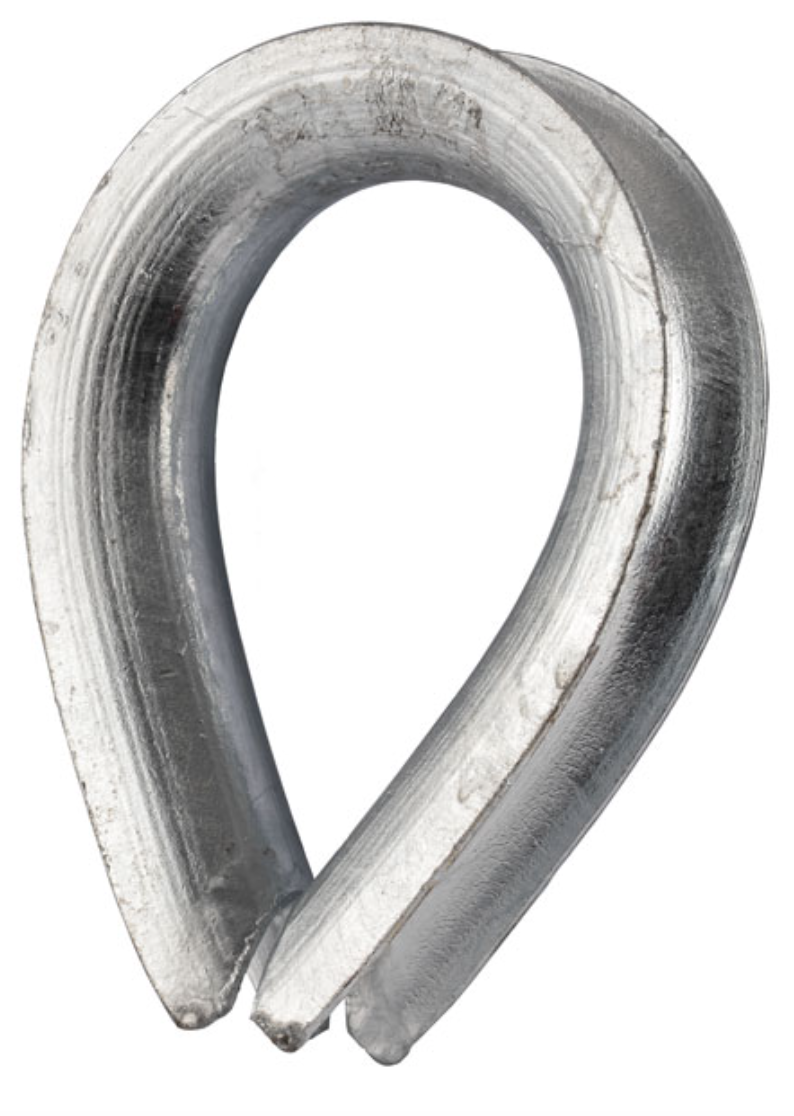

Wire Rope Thimble - BS Style

Wire Rope Thimble - BS Style

SKU: 286-807-1

Read More
Regular price £0.50
Regular price RRP Sale price TODAY'S PRICE £0.50

Out of stock (0)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Wire Rope Thimble - BS Style to BS EN 13411-1

  • Mild steel.
  • Hot dipped galvanised finish.
  • Meets the performance requirements of BS EN 13411-1.*
  • Meets the performance requirements of the withdrawn standard BS 464.*
  • For use with wire ropes.
  • Certification available

Spec



SKU

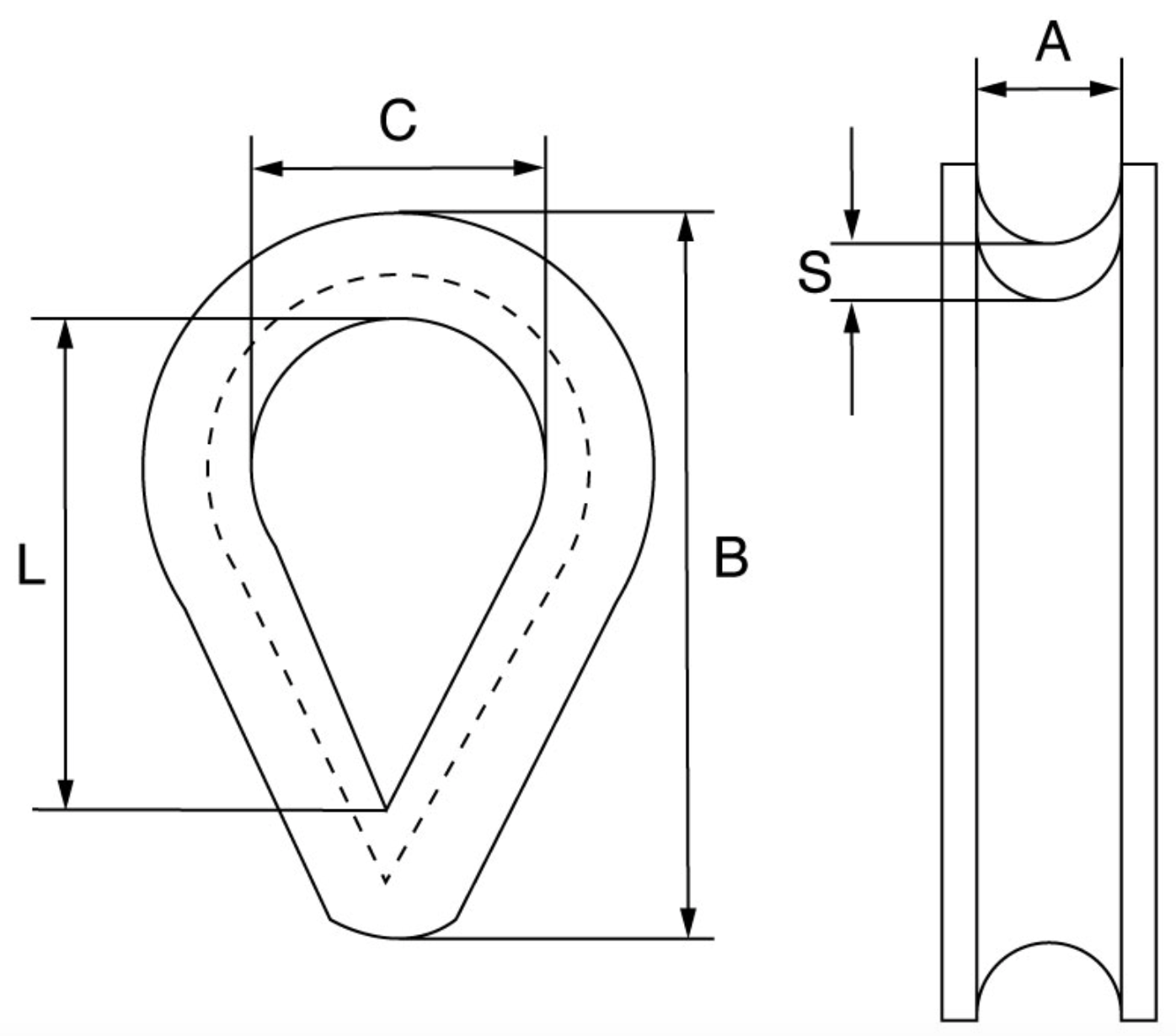

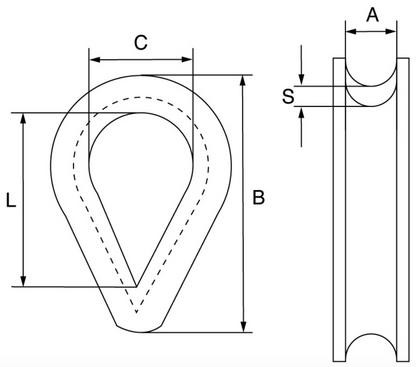

Rope Dia A B L C S Weight
inch mm mm mm mm mm kgs/100
286-807-1
1/4 7 45 26 18 4 4.1
286-807-2
5/16 8 54 33 22 4 6.5
286-807-3
3/8 10 64 38 25 4.8 9.5
286-807-4
1/2 14 80 44 32 5.6 13
286-807-5
5/8 16 98 59 41 7.9 30
286-807-6
3/4 21 124 73 51 9.5 51.5
286-807-7
7/8 22 133 83 57 9.5 69.0
286-807-8
1 27 162 108 70 10.3 99.5
286-807-9
1 1/8 29 178 111 76 12.7 129
286-807-10
1 1/4 33 197 133 95 12.7 145
286-807-11
1 3/8 38 229 152 105 15.9 238
286-807-12
1 1/2 41 254 165 114 17.5 340
286-807-13
1 5/8 43 254 165 114 17.5 499
286-807-14
1 3/4 51 286 178 127 25.4 532
286-807-15
2 64 330 203 140 28.6 695
