YOKE 8-058 Bolt-On Tie Down
YOKE SKU: 276-10-1

Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description

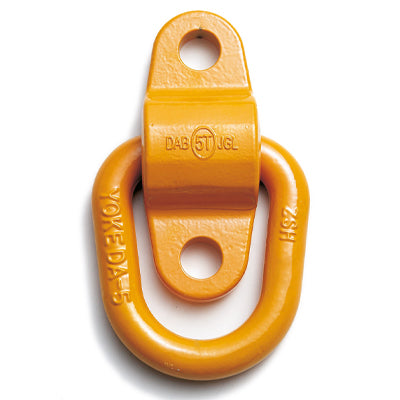

YOKE 8-058 Bolt-On Tie Down
- Pivots through 180° and allows side load lifting
- Manufactured from forged alloy steel, quenched and tempered
- Manufactured and tested in accordance with EN1677-1
- Load rated parts are 100% magnaflux crack detected
- Individual forged parts are traceable to Test Certification
- Supplied without bolts; usage of Grade 10.9 or Grade 12.9 bolts is recommended
- Proof tested to 2.5 times the WLL
- All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
Specification
| SKU | Capacity (t) | Bolt Size (inch) | Weight (kg) |
| 276-10-1 | 1 | M12 | 0.7 |
| 276-10-2 | 3 | M16 | 1.1 |
| 276-10-3 | 5 | M20/M22 | 2.5 |
