YOKE

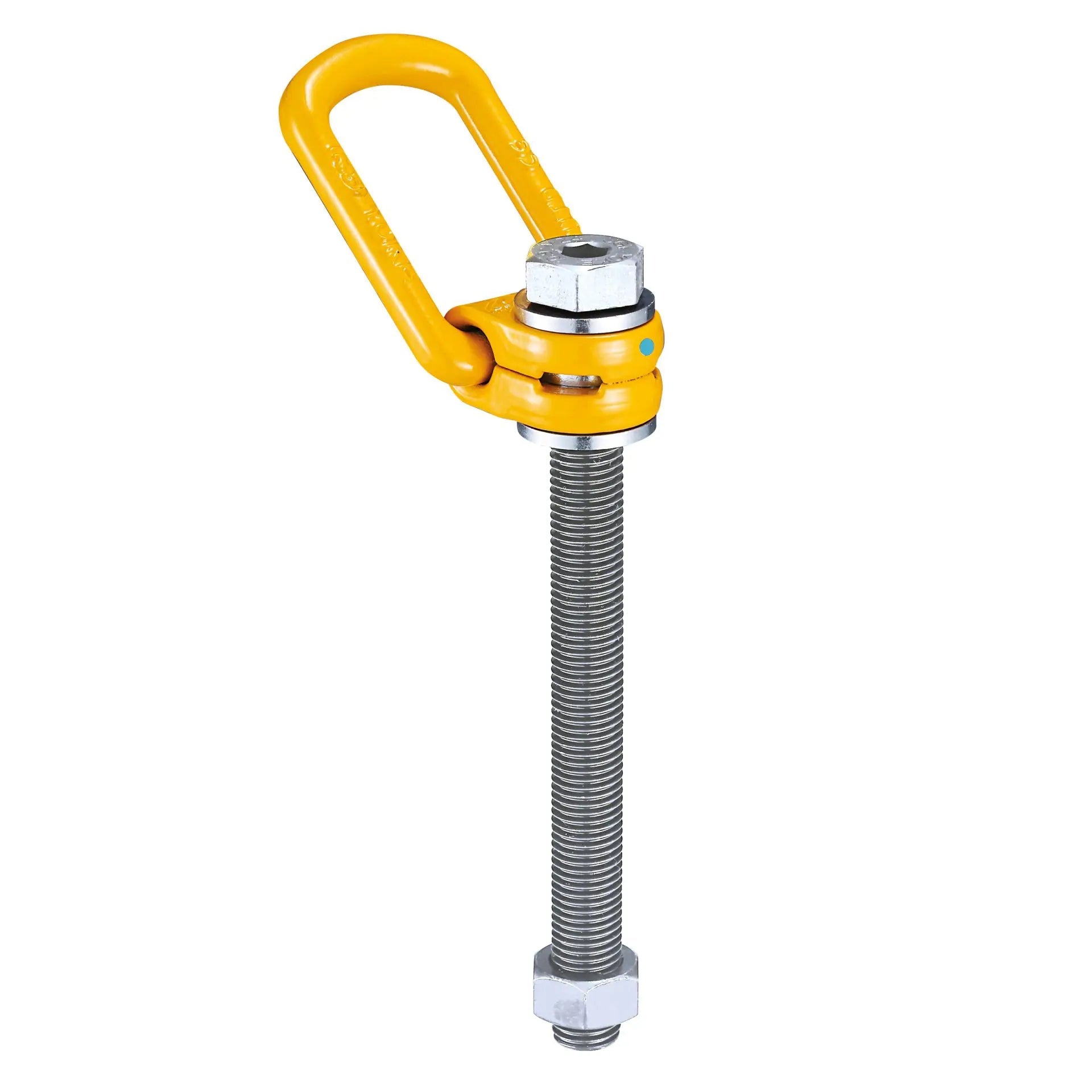

YOKE 8-211 Digital Lifting Point Long Bolt - Metric Thread

YOKE 8-211 Digital Lifting Point Long Bolt - Metric Thread

SKU: 276-1-15

Read More
Regular price £91.20
Regular price RRP Sale price TODAY'S PRICE £91.20

In stock

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

YOKE 8-211 Digital Lifting Point Long Bolt - Metric Thread

  • Rotates through 360° and pivots 90°
  • Manufactured from alloy steel, quenched and tempered
  • Tested in accordance with EN1677-1
  • Certified by DGUV GS-OA 15-04
  • Load rated parts are 100% magnaflux crack detected
  • Individual forged parts and cap screw are traceable to Test Certification
  • Bolts are Metric thread
  • Proof tested to 2.5 times the WLL
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
  • Quick and simple assembly, just a tapped hole is required

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26

Spec

SKU Capacity (t) Bolt Size (mm) Torque (Nm) Weight (kg)
276-1-14 0.3 M8 30 0.4
276-1-15 0.63 M10 60 0.5
276-1-16 1 M12 100 0.5
276-1-17 n/a n/a n/a n/a
276-1-18 1.5 M16 150 0.7
276-1-19 2.5 M20 250 1.7
276-1-20 4 M24 400 2
276-1-21 5 M30 500 3.2
276-1-22 n/a n/a n/a n/a
276-1-23 8 M36 800 6
276-1-24 10 M42 1000 6.4
276-1-25 15 M42 1500 11
276-1-26 20 M48 2000 12.1
