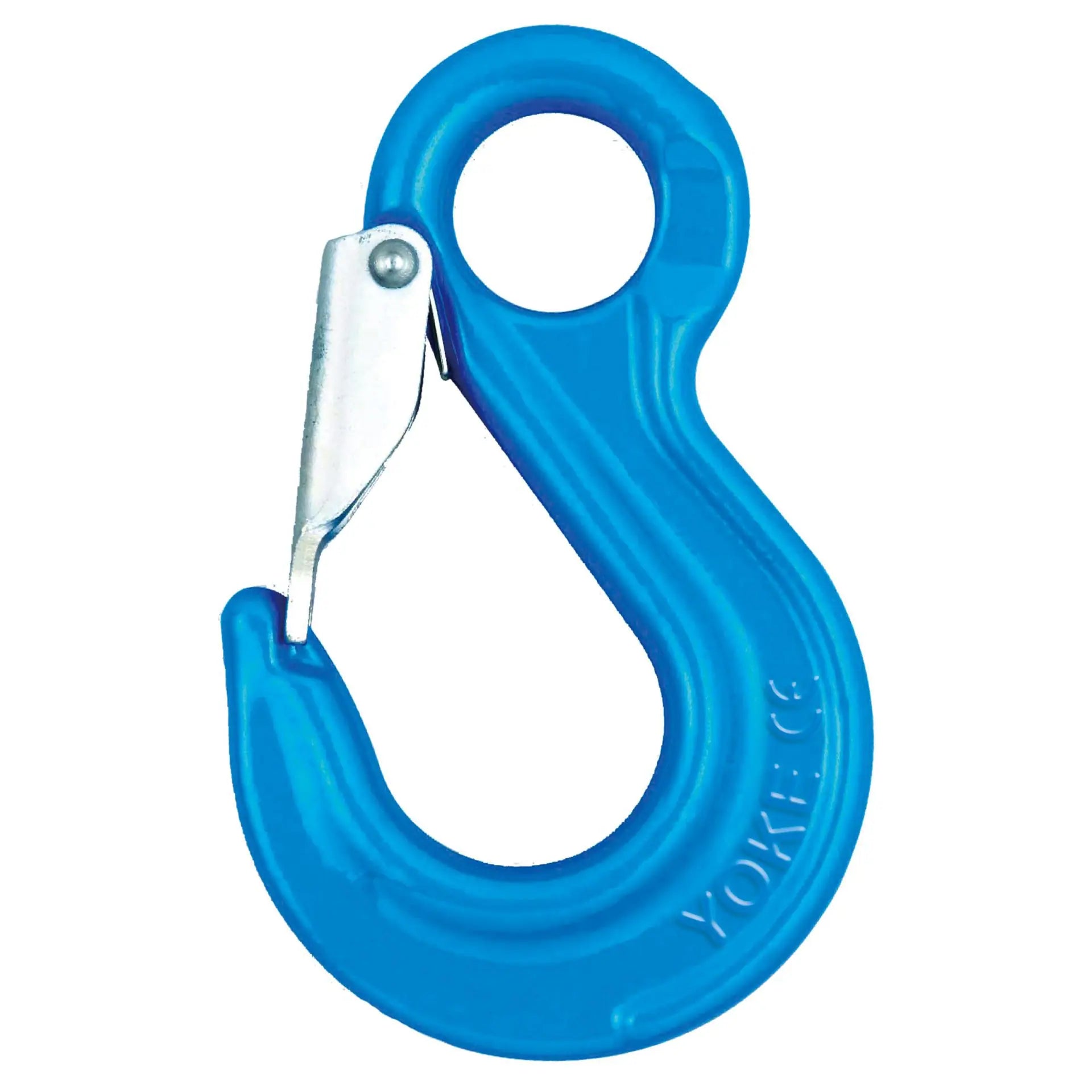

YOKE X-044 Grade 100 Eye Sling Latch Hook

Name: YOKE X-044 Grade 100 Eye Sling Latch Hook
Brand: YOKE
SKU: 276-63-1
Price: 13.08 GBP
Availability: InStock

YOKE SKU: 276-63-1

1 1

YOKE X-044 Grade 100 Eye Sling Latch Hook Quenched and Tempered Alloy Steel At least 25% greater WLL than traditional G80 products Manufactured in accordance with EN 1677- 2... Read More

£13.08

Sale TODAY'S PRICE £13.08

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more yoke grade 100 lifting chain fittings

Description

YOKE X-044 Grade 100 Eye Sling Latch Hook

Quenched and Tempered Alloy Steel
At least 25% greater WLL than traditional G80 products
Manufactured in accordance with EN 1677- 2 and ASME B30.26, ASME B30.10, PAS1061
Certified by DGUV GS-OA-15-05
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
Design Factor 4:1
Fatigue rated to 20,000 cycles at 1.5 times the WLL
Tempering temperature minimum 400°C
Magnaflux crack detection is performed 100% on each batch

Specification

SKU	Capacity (t)	For Grade 100 Chain (mm)	Weight (kg)
276-63-1	2.5	7, 8	0.5
276-63-2	4	10	1
276-63-3	6.7	13	1.8
276-63-4	10	16	3.4
276-63-5	16	20	7.3
276-63-6	19	22	9.3
276-63-7	26.5	26	13.5
276-63-8	40	32	22
