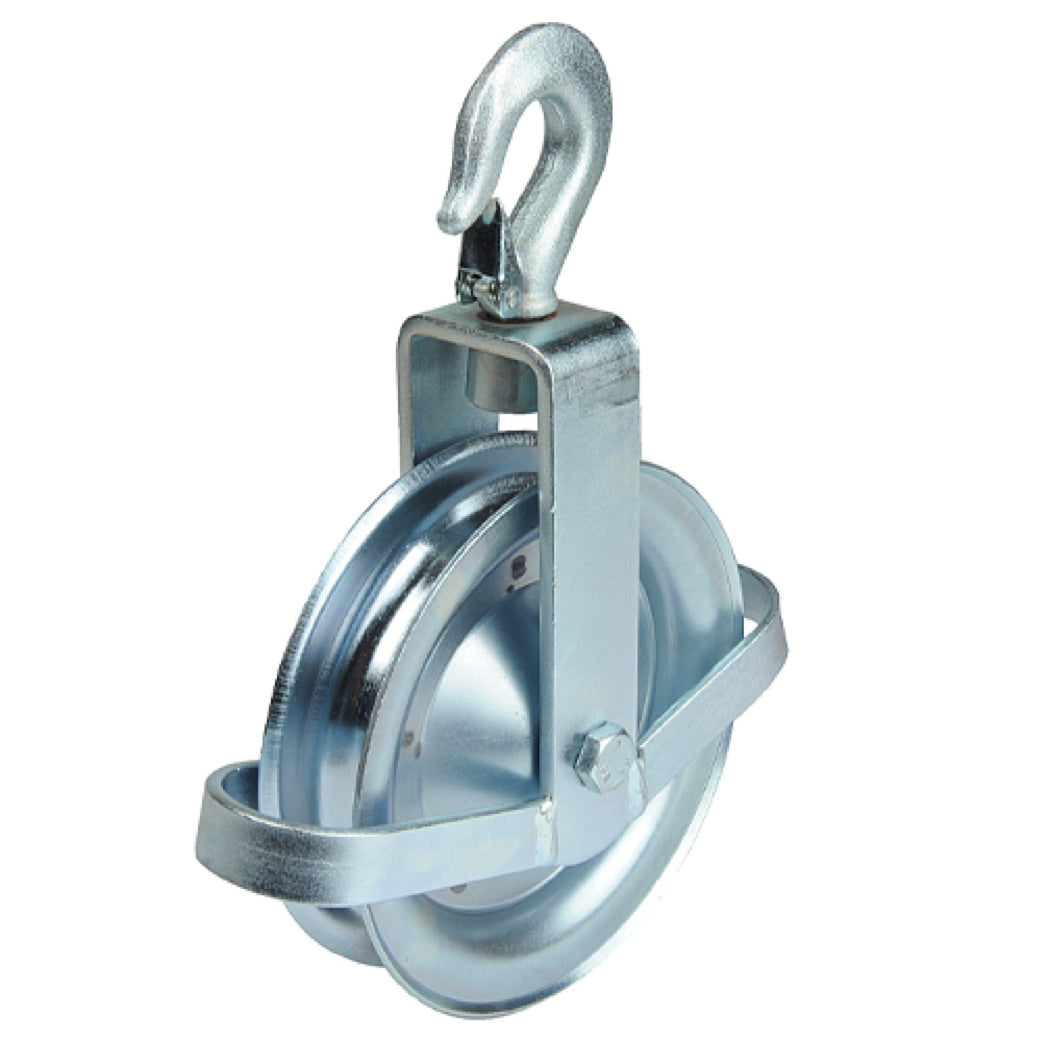

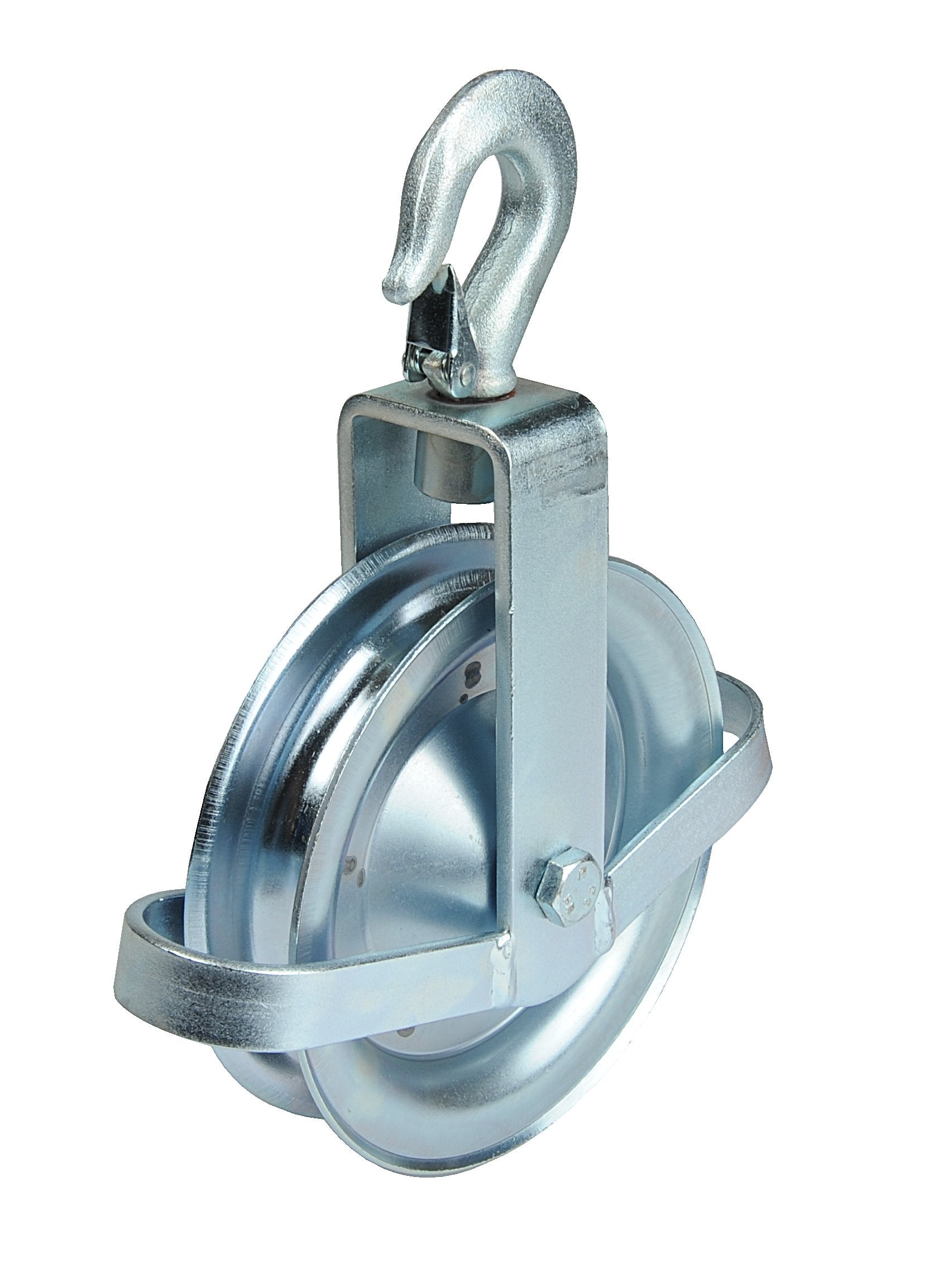

WEBI Pulley Type ETT-201 - Construction Site Pulley with Rotating Steel Hook (ETTER)
- WEBI steel pulley / sheave with rotating hook for use on a construction site for moving materials only.
- Plain bearing, with self-lubricating polyamide bearing bush
- Material finish steel pulley with galvanised steel housing, steel hook with security spring
- Hook load capacities from 200 kg through to 250 kg (manual operation only)
- Width of groove on pulley to suit 25 mm through to 32 mm rope (see specification PDF for full details)
- For use with hemp and synthetic fibre ropes
- SWISS MANUFACTURED
Not to be used for personal winching.

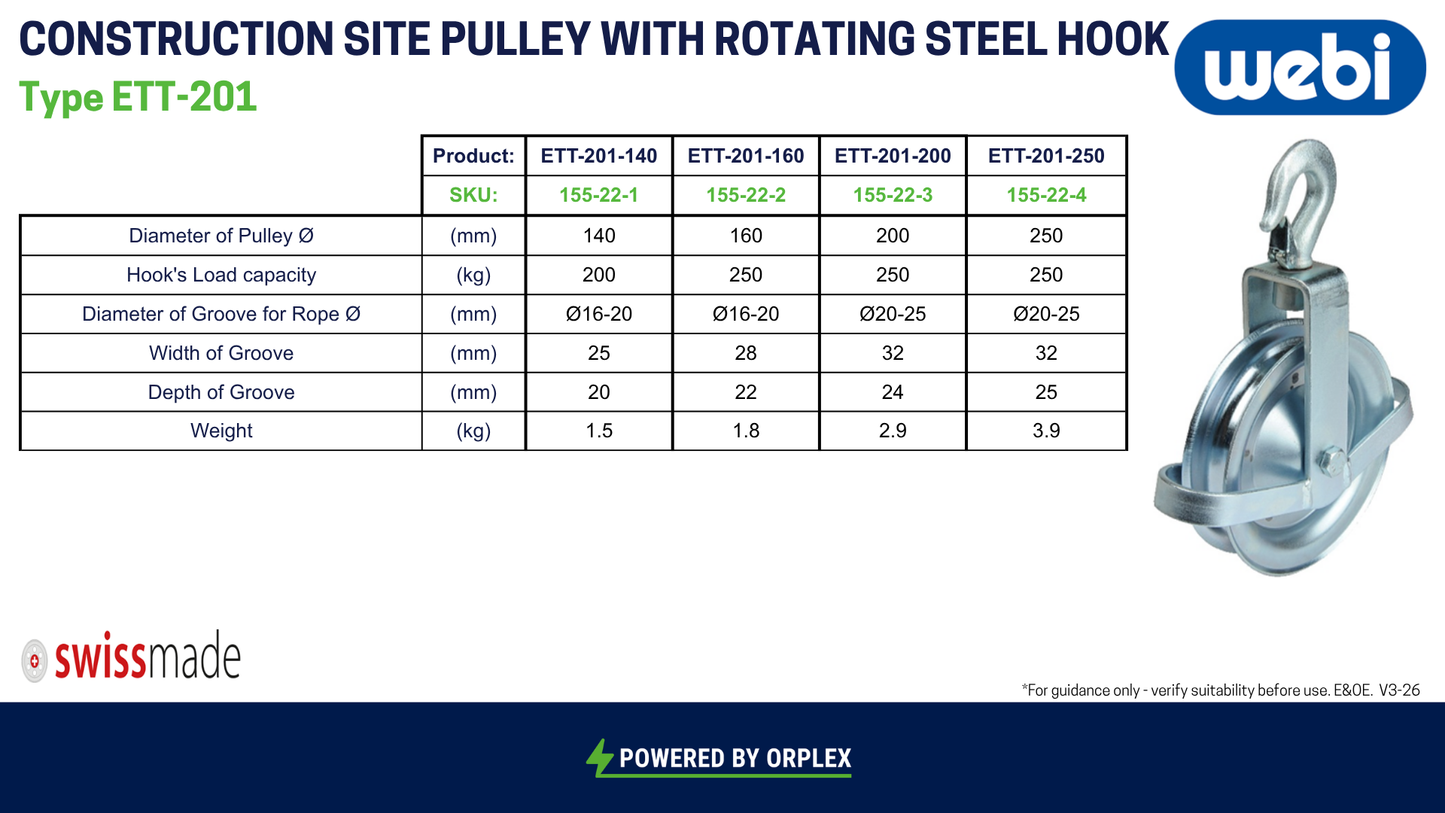

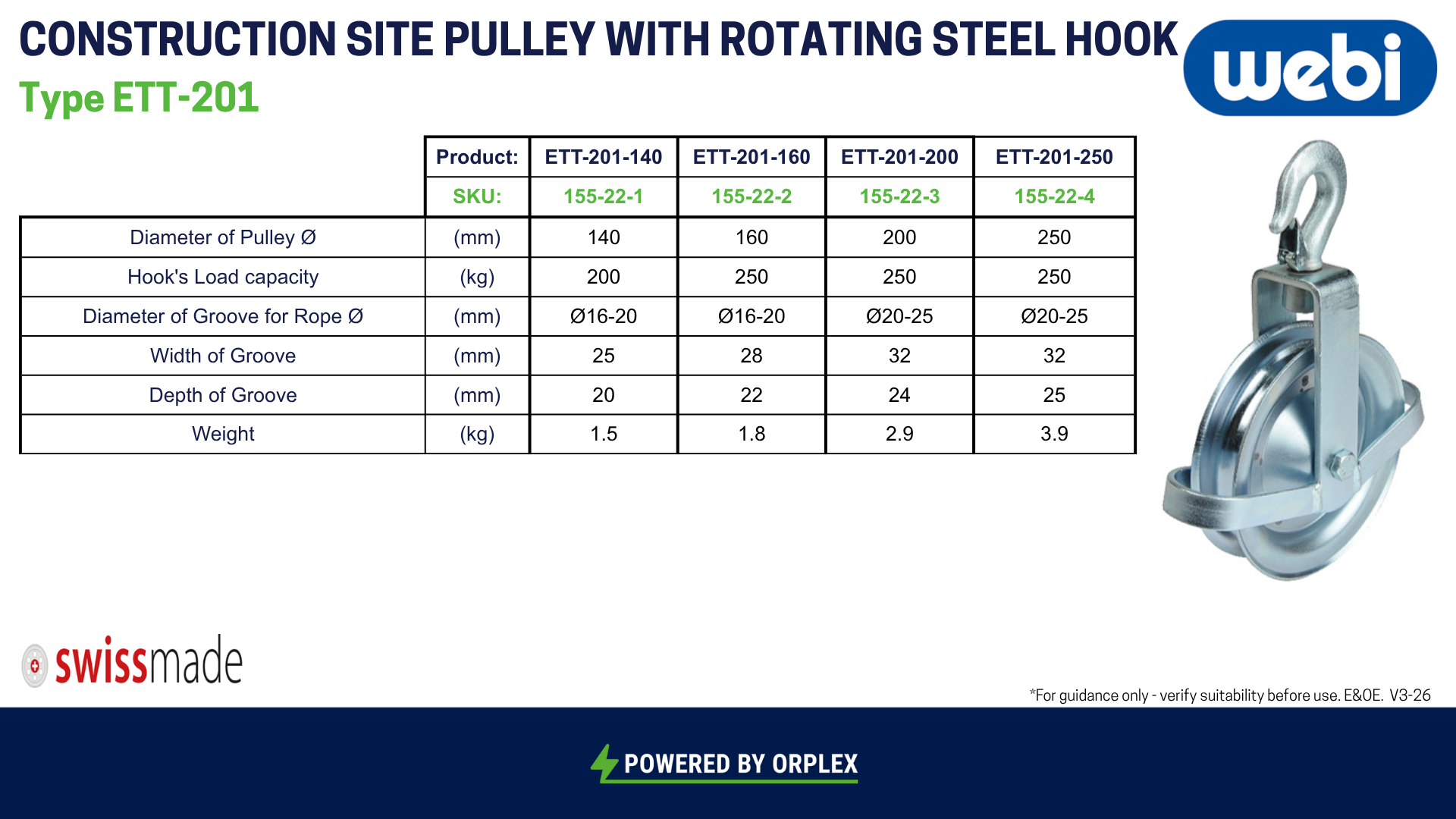

Spec
Model |
Capacity |
Pulley Diameter |
Rope Diameter |
155-22-1 |
200 kg |
140 mm |
25 mm |
155-22-2 |
250 kg |
160 mm |
28 mm |
155-22-3 |
250 kg |
200 mm |
32 mm |
155-22-4 |
250 kg |
250 mm |
32 mm |
Downloads
Pulley Cat 2018
Etter 201 Pulley Data Sheet
