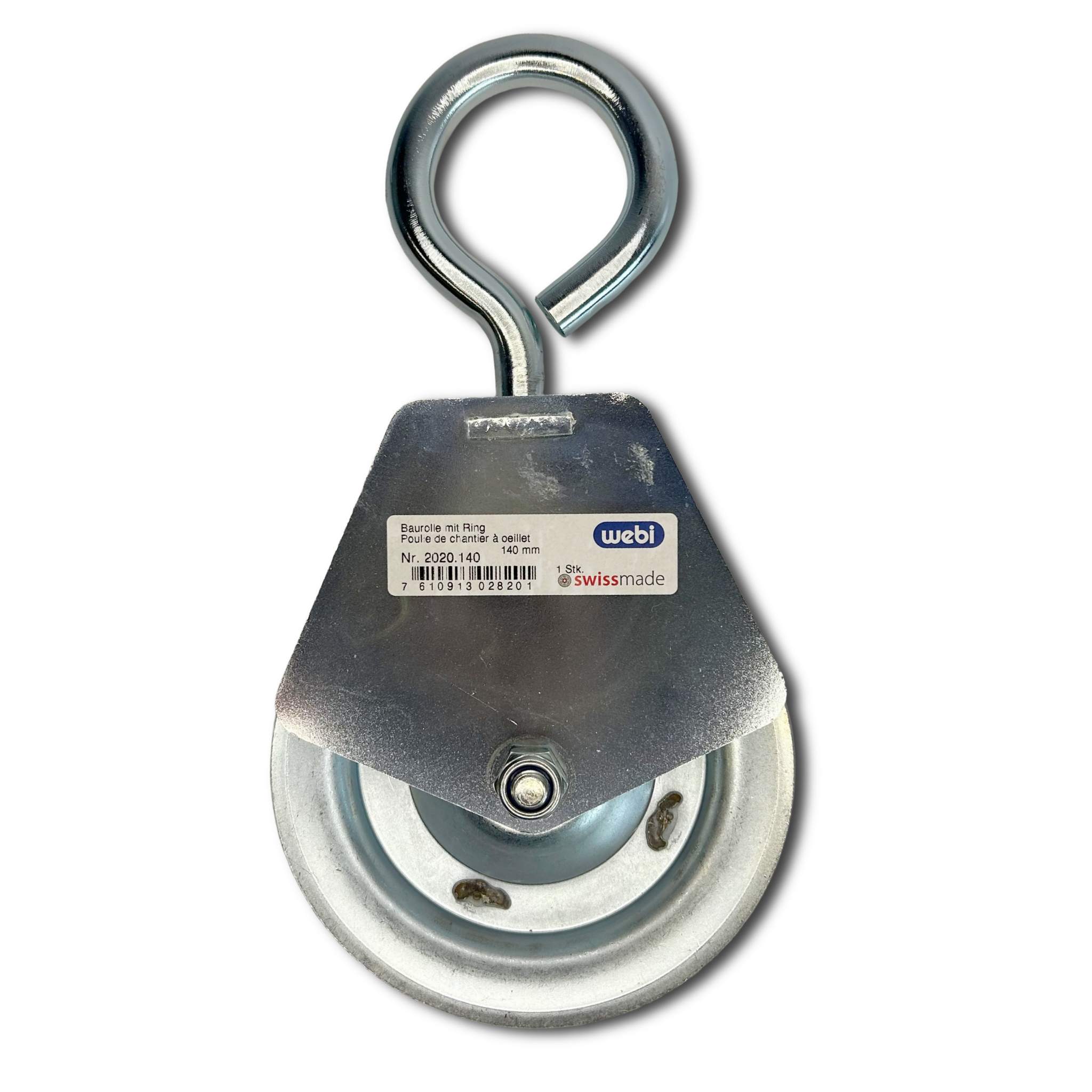

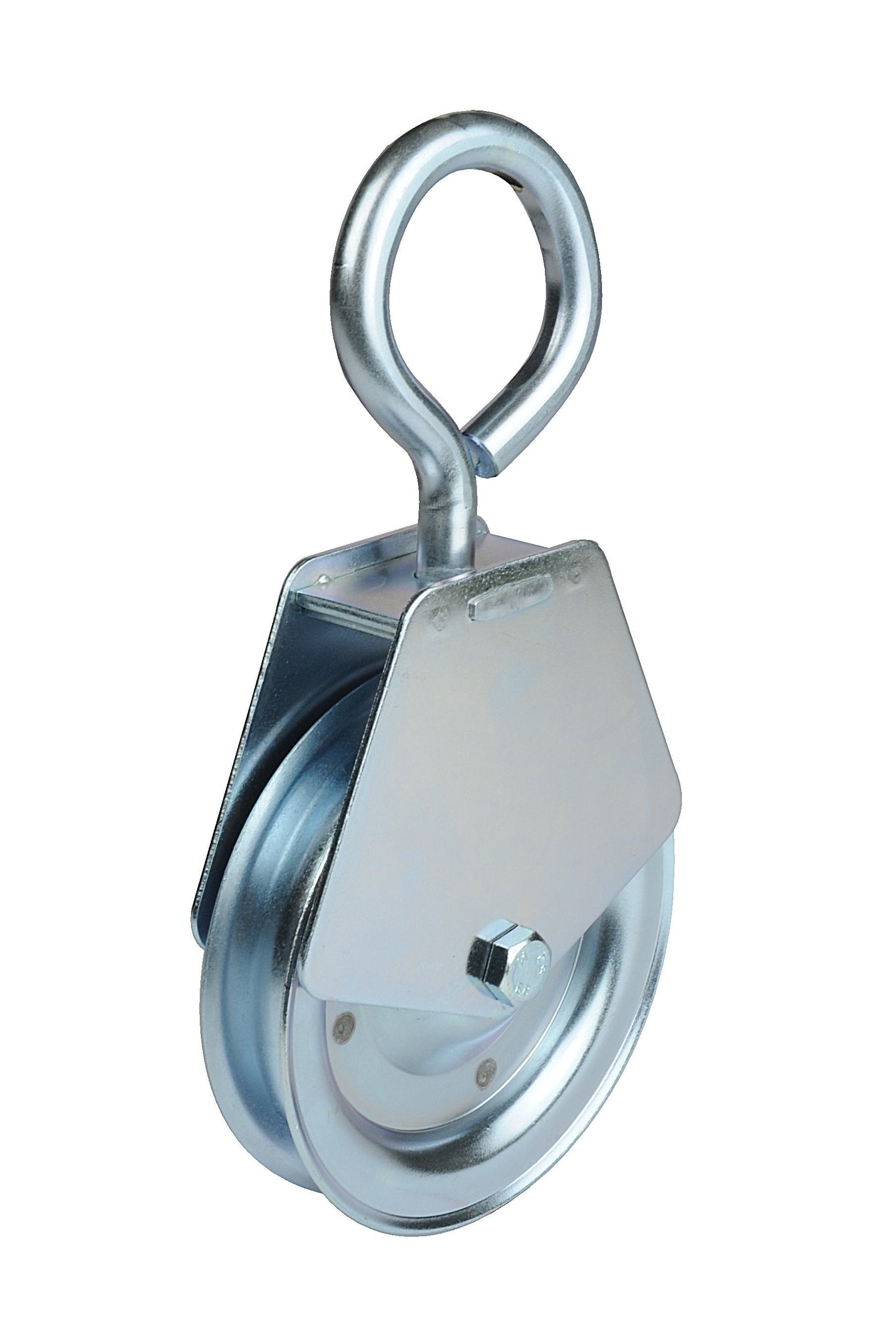

WEBI Pulley Type ETT-202 - Construction Site Pulley with Rotating Steel Hook for Scaffolding (ETTER)
- WEBI steel pulley / sheave with rotating hook for pulling materials on a construction site, for use on scaffolding up to 49mm (1 1/2") diameter.
- Plain bearing
- Material finish steel pulley with galvanised steel housing, steel hook with security spring
- Hook load capacities 200 kg and 250 kg (manual operation only)
- Width of groove on pulley to suit 16-20 mm or 20-25 mm rope (see specification PDF for full details)
- For use with hemp and synthetic fibre ropes
- SWISS MANUFACTURED
Not to be used for personal winching.

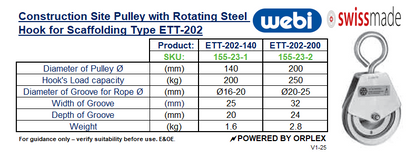

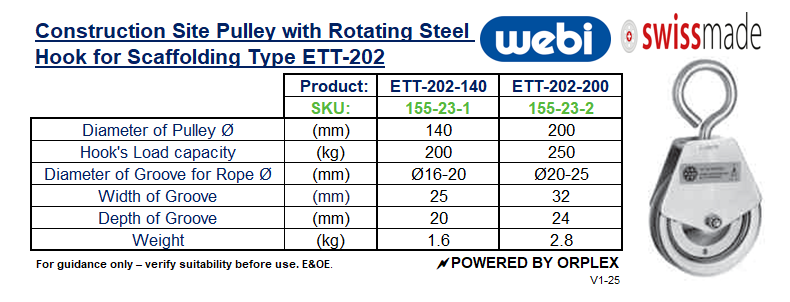

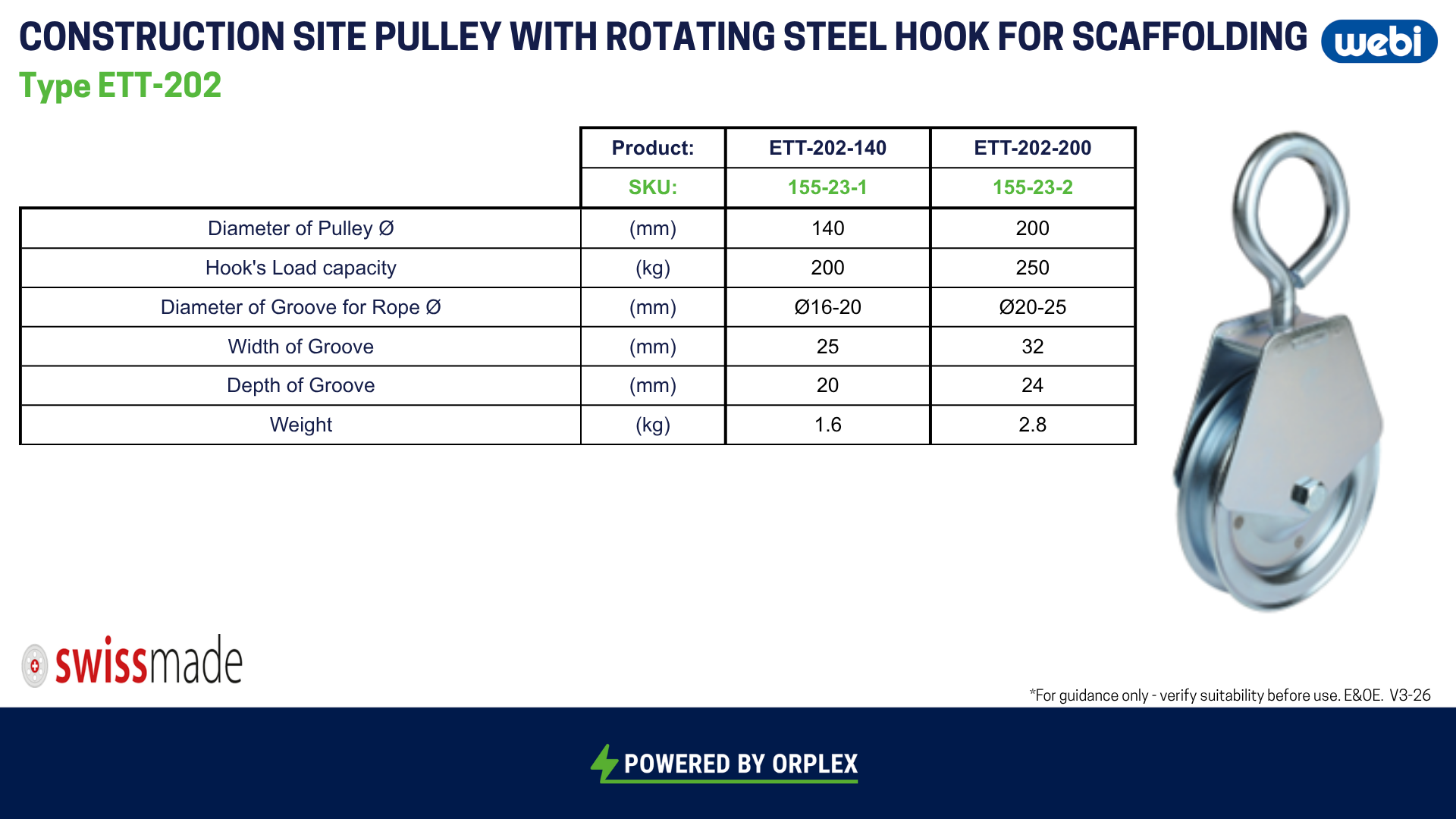

Spec
| Model | Capacity | Pulley Diameter | Rope Diameter |
| 155-23-1 | 200 kg | 140 mm | 16-20 mm |
| 155-23-2 | 250 kg | 200 mm | 20-25 mm |
