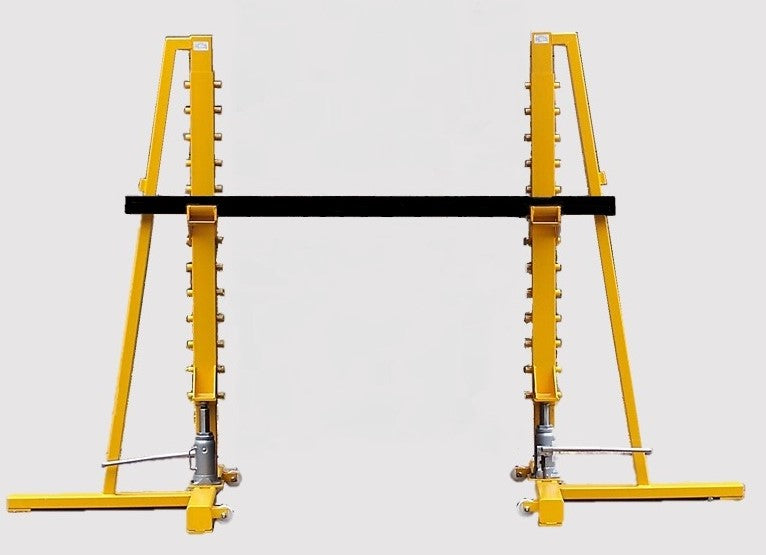

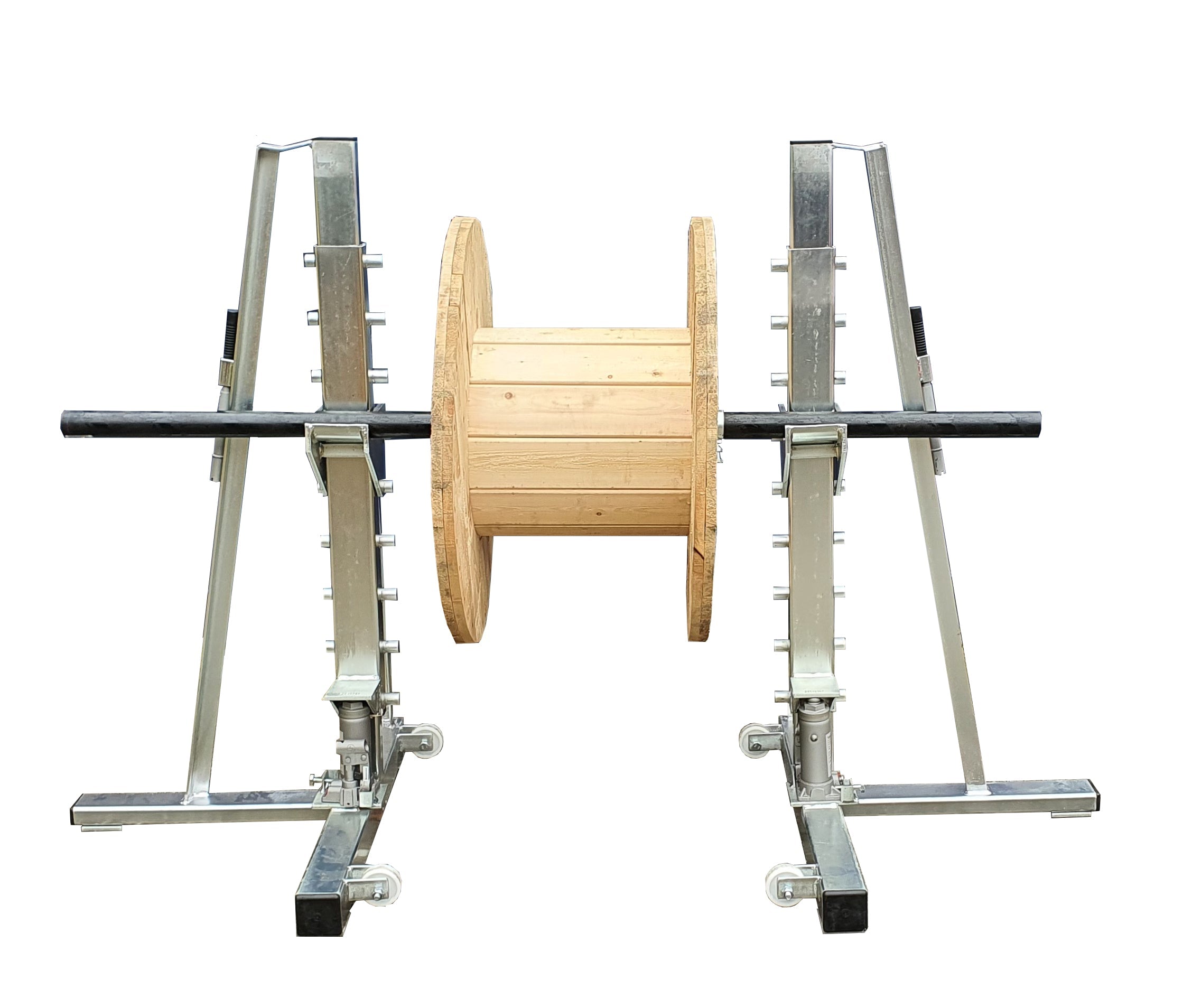

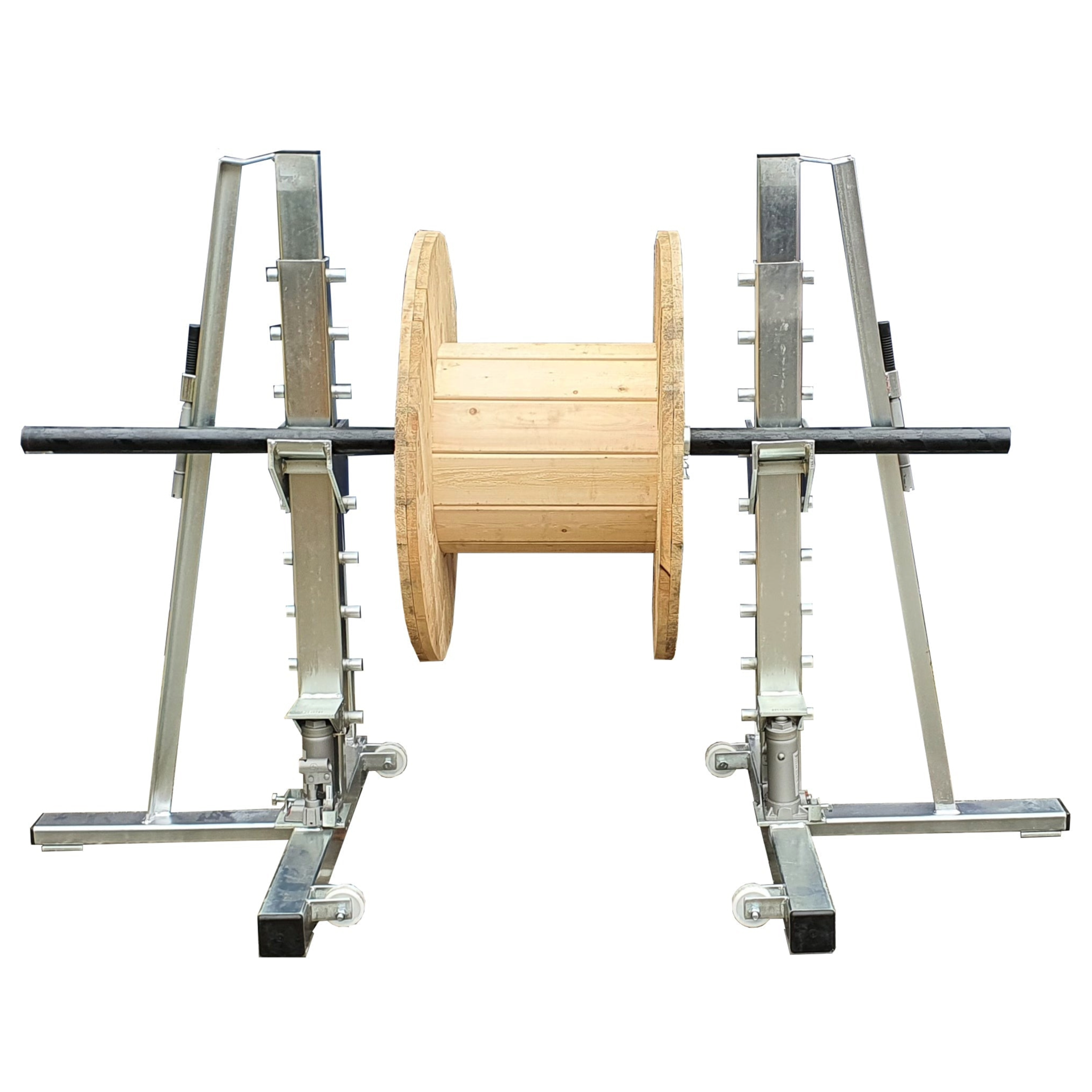

6.0t Hydraulic Cable Drum Jacks
Lightweight hydraulic drum jacks which are almost indispensable for use in paying off cable from cable drums in the cable yard or on site. Versatile and easily adjustable within seconds to accommodate a vast range of cable drums. Excellent all round stability, fitted with wheels to be easily moved by one person.

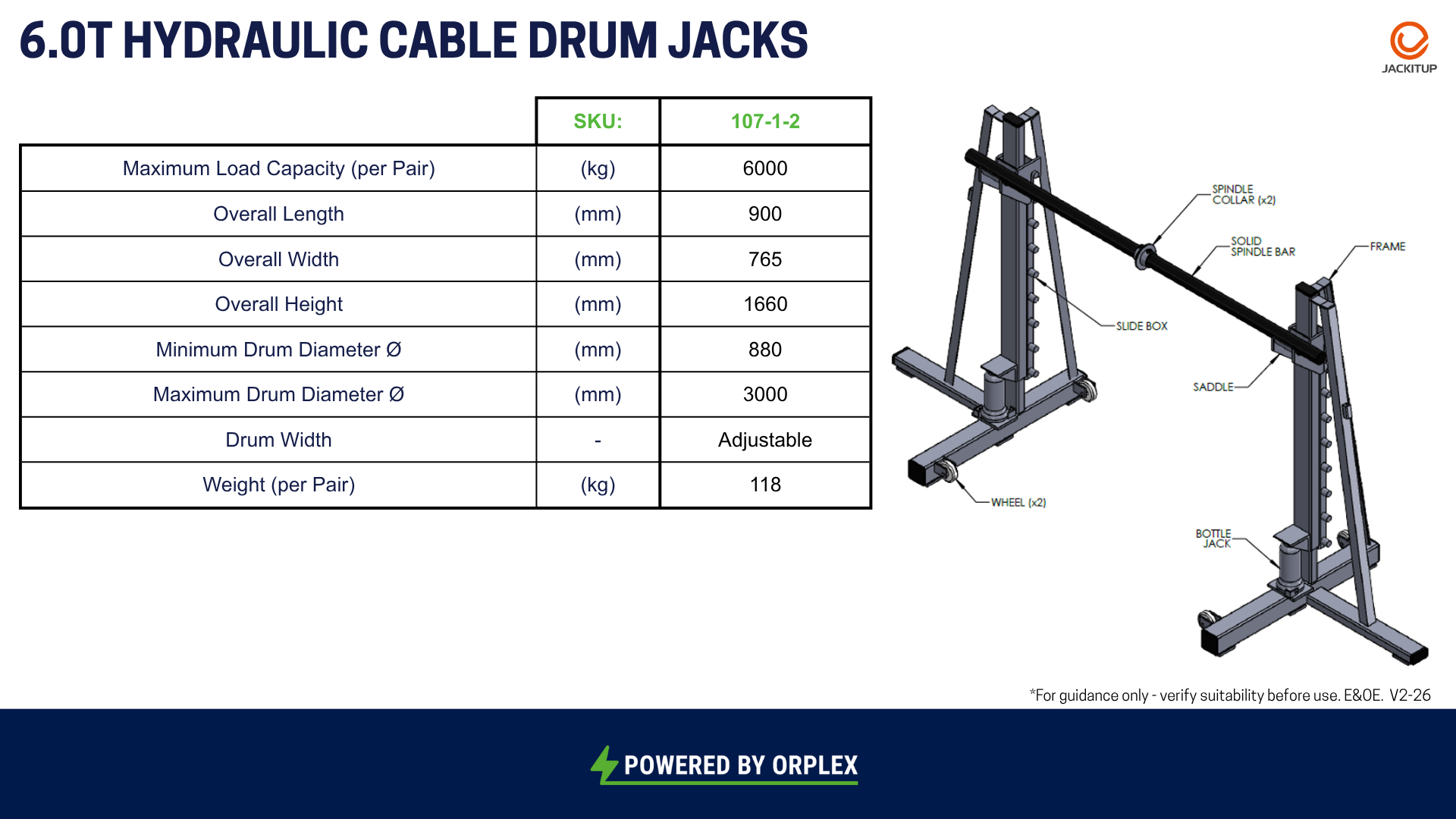

Spec
- Supplied complete with spindle bar and locking collars
- 50mm Diameter 1.8m Spindle Bar and 50mm Locking Collars
CAPACITY (COMBINED PER PAIR) |
6T |
MAX DRUM DIA |
3000mm |
MIN DRUM DIA |
880mm |
BASE SIZE |
900mm x 765mm |
WEIGHT (PAIR) |
118kg |
Lightweight Hydraulic Jacks are available as 3t jack set, 6t jack set and 10t jack set
Downloads
6T Hydraulic data Sheet
Hydraulic operation manual
Legislation
LOLER
Cable Jacks general do not need to follow maintenance under LOLER, as the Jacks are only designed to be used to lift the drum high enough off the ground so it freely spins to pay out the cable and NOT for crane/high lifting purposes.
Cable Jacks general have been examined and where applicable are supplied generally to meet Supply of Machinery (Safety) Regulations EEC 2006/42/EC (as amended), and where relevant, Construction & Use Regulations EEC Directives 71/320 (as amended).
A certificate of Certificate of Conformity can be issued on request.
***Obviously should either the application or your own company policies require LOLER maintenance to be followed then this would be you to decide on.
