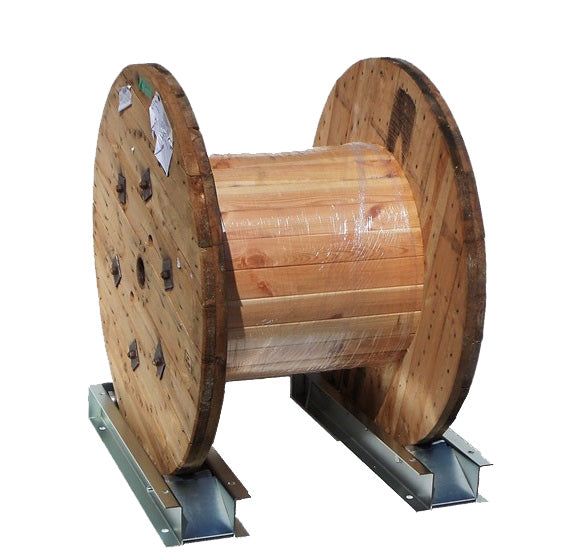

Cable Drum Rotators (Pair) Max Payload: 1500Kg

Heavy-duty, all-steel welded cable drum rotators, designed to facilitate the winding and unwinding of cable drums. Each unit features one fixed and one adjustable diablo-shaped steel roller with sealed bearings.

Suitable for winding cable on and off drums with a minimum diameter of 300m to a maximum of 2400mm. The drum width is adjustable to suit the cable reel drum you are using.

What is a Cable Drum Rotator used for?

In most cases cable drums are simply rolled up the ramp onto the Cable Drum Rotators rollers, which then allows the drum to spin freely - allowing the operator to unwind the cable off the drum, or wind onto the drum.

Features:

• Heavy-Duty Construction: All-steel welded frame ensures durability and long-lasting use.
• Smooth Operation: Fitted with sealed bearings for smooth and reliable rotation.
• Adjustable Rollers: One fixed and one adjustable roller to accommodate various drum sizes.
• Versatile Use: Suitable for both winding cable onto drums and unwinding cable off drums.

These cable drum rotators are essential for efficient cable handling in various industrial and construction settings.

Spec

Maximum Drum Payload: 1500Kgs
Finish:  Paint  / Zinc finish
Drum Diameter: Max 2400mm, Min 300mm
Drum Width: Adjustable
Size Each: 1000mm x 225mm x 120mm
Weight: 54Kgs Per Pair

Downloads

Data Sheet

Video

Adjusting the roller pins

Legislation

HSE Legislation on this product - there isn’t any legislation applicable for this item as it does not fall under lifting equipment category, employees operating this equipment would just adhere to the general Health & Safety Regulations of the site.
