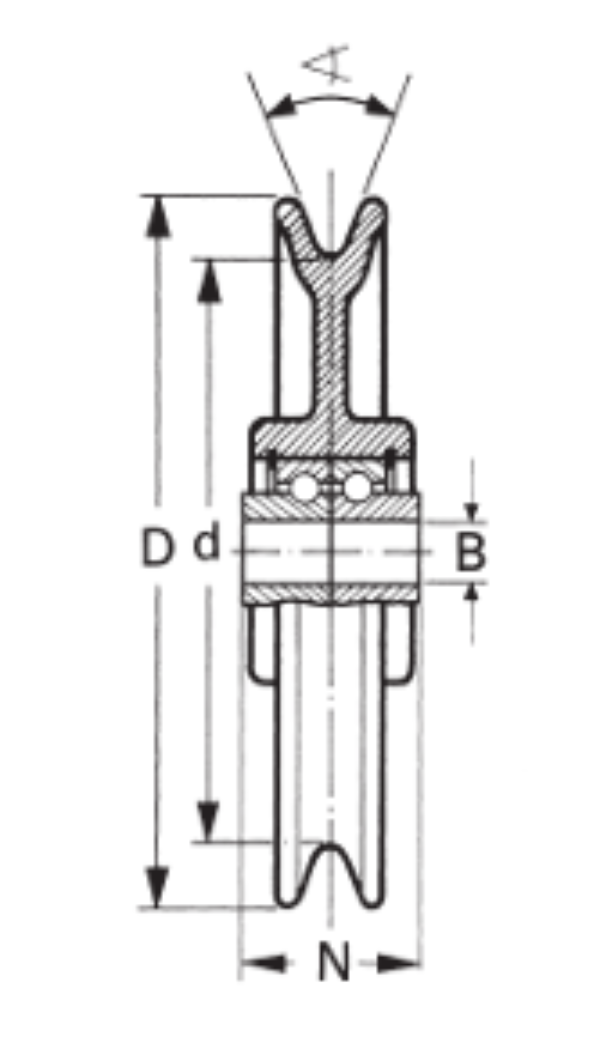

Galvanised Cast Iron Single Pulley Type ETT-74 : 100-1000kg

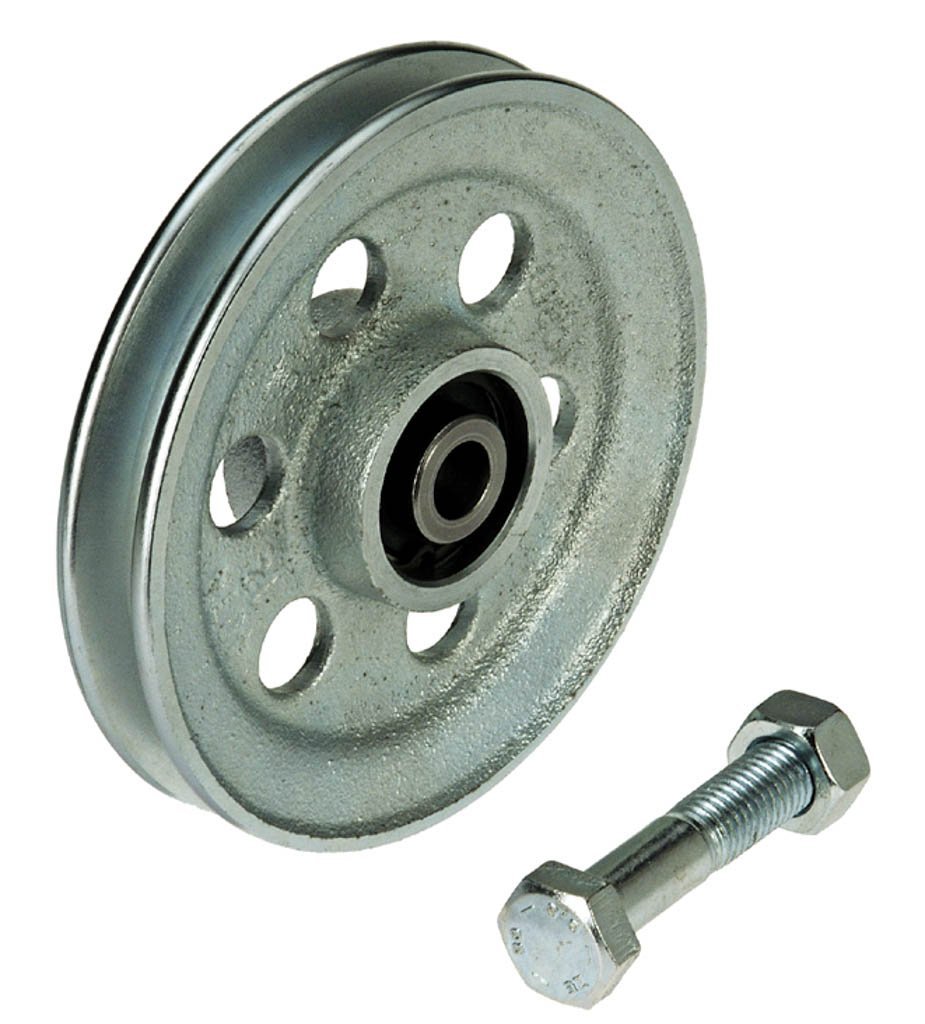

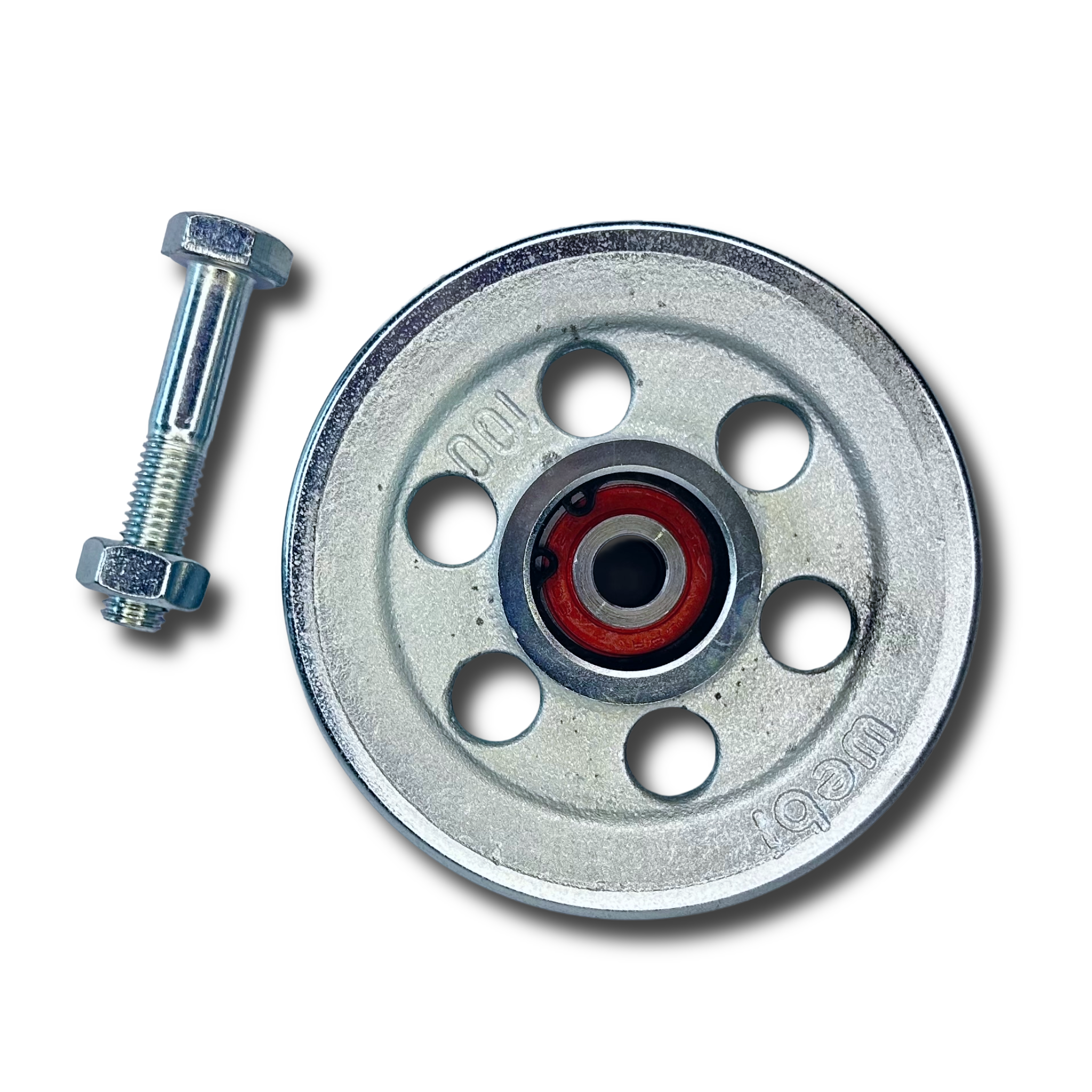

- A range of galvanised cast iron single pulleys / sheaves ETT-74
- Complete with bearing and fixing bolt
- Material finish - galvanised cast iron
- Capacities available range from 100 kg to 1,000 kg
- Pulley diameter ranges from 50mm up to 300mm
- To suit from 3mm up to 12mm wire rope (see specification PDF for full details)
- For use with manual and powered winches
- SWISS MANUFACTURED

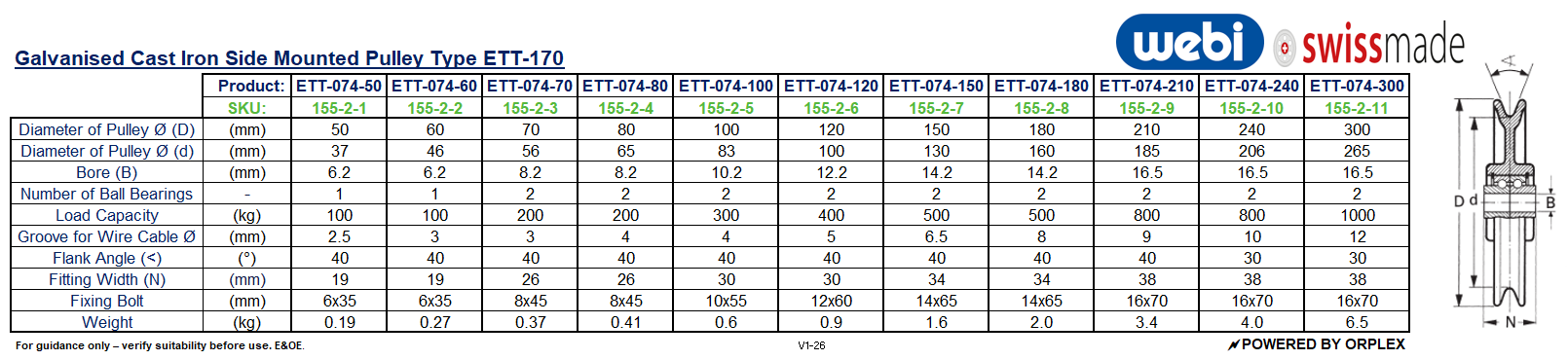

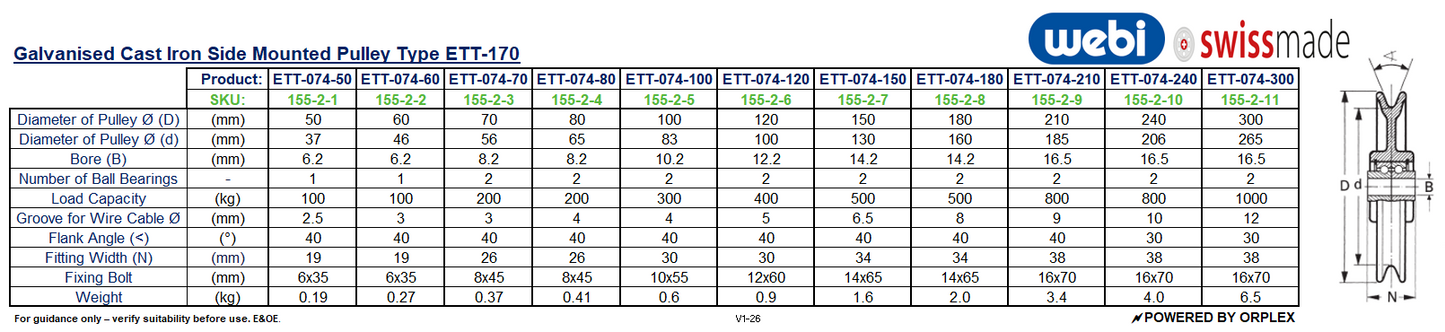

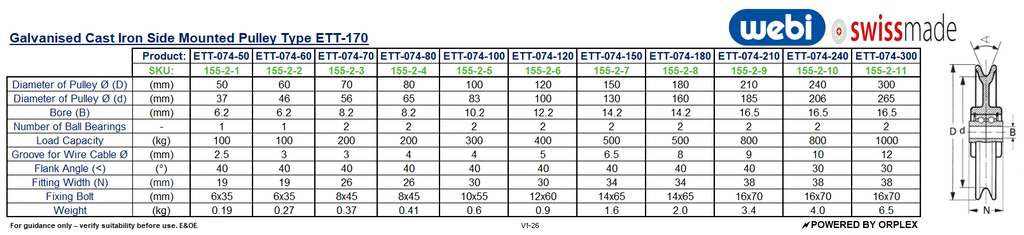

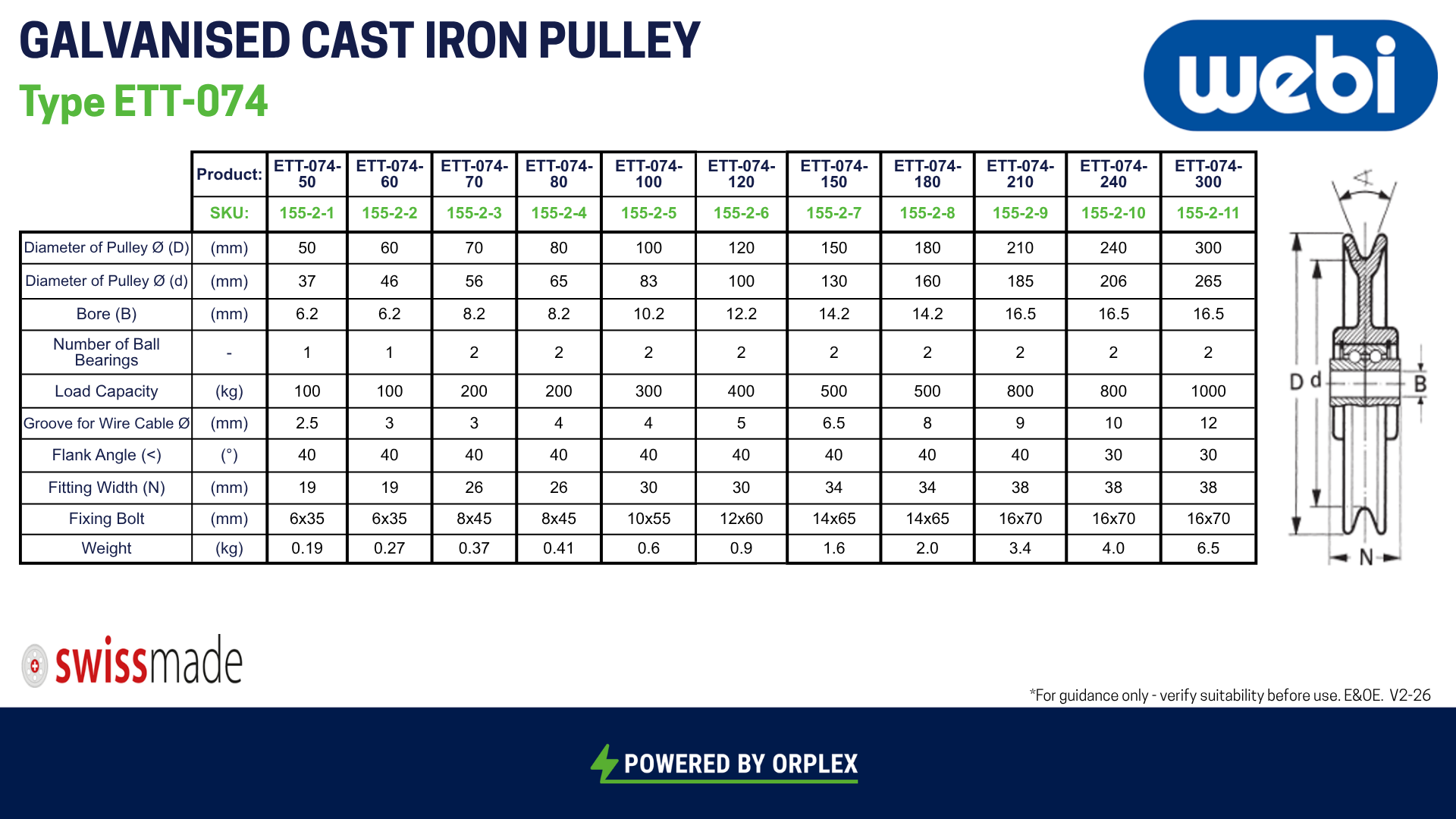

Spec
Model |
Capacity |
Pulley Diameter |
Rope Diameter |
155-2-1 |
100kg |
50mm |
2.5mm |
155-2-2 |
100kg |
60mm |
3.0mm |
155-2-3 |
200 kg |
70 mm |
3.0 mm |
155-2-4 |
200 kg |
80 mm |
4.0 mm |
155-2-5 |
300 kg |
100 mm |
4.0 mm |
155-2-6 |
400 kg |
120 mm |
5.0 mm |
155-2-7 |
500 kg |
150 mm |
6.5 mm |
155-2-8 |
500 kg |
180 mm |
8.0 mm |
155-2-9 |
800 kg |
210 mm |
9.0 mm |
155-2-10 |
800 kg |
240 mm |
10.0 mm |
155-2-11 |
1000 kg |
300 mm |
12.0 mm |
Downloads
Pulley Cat 2018
Etter 74 Pulley Data Sheet
