Etter (WEBI) Pulleys

Galvanised Cast Iron Pulley with Pressed Steel Bracket Type ETT-160 : 100kg to 400kg

Galvanised Cast Iron Pulley with Pressed Steel Bracket Type ETT-160 : 100kg to 400kg

SKU: 155-4-1

Read More
Regular price £48.00
Regular price RRP Sale price TODAY'S PRICE £48.00

In stock (3)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

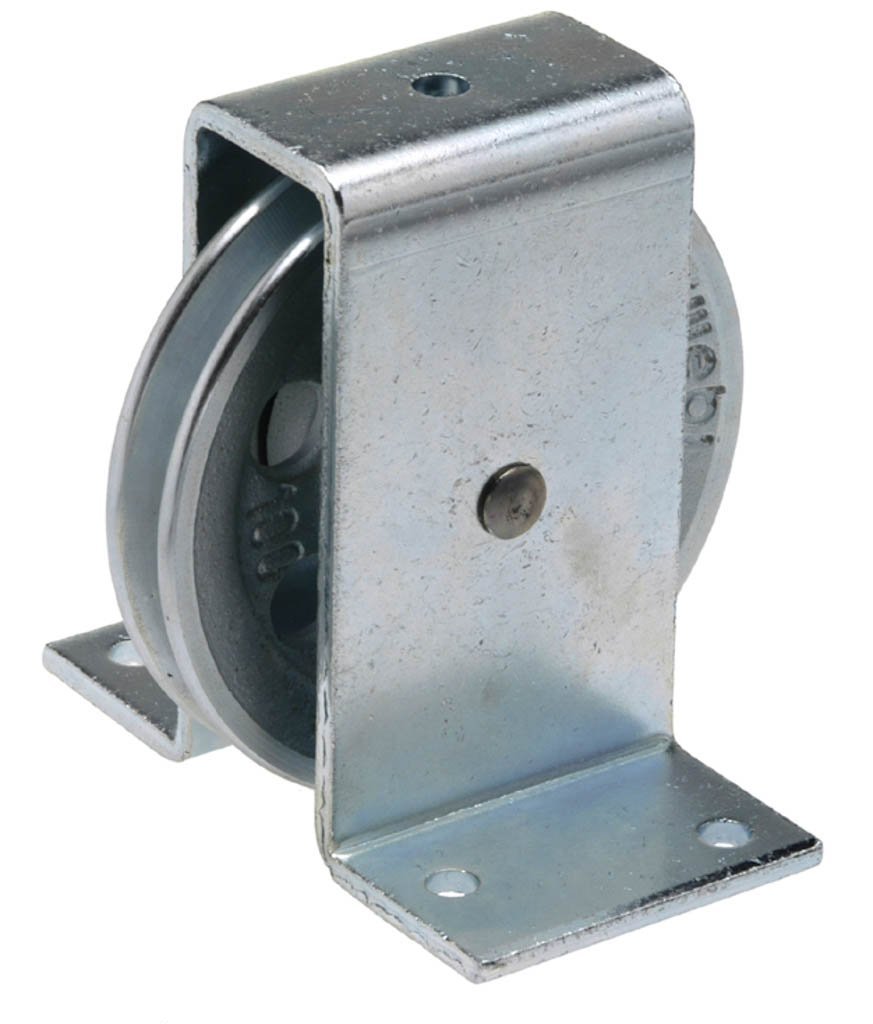

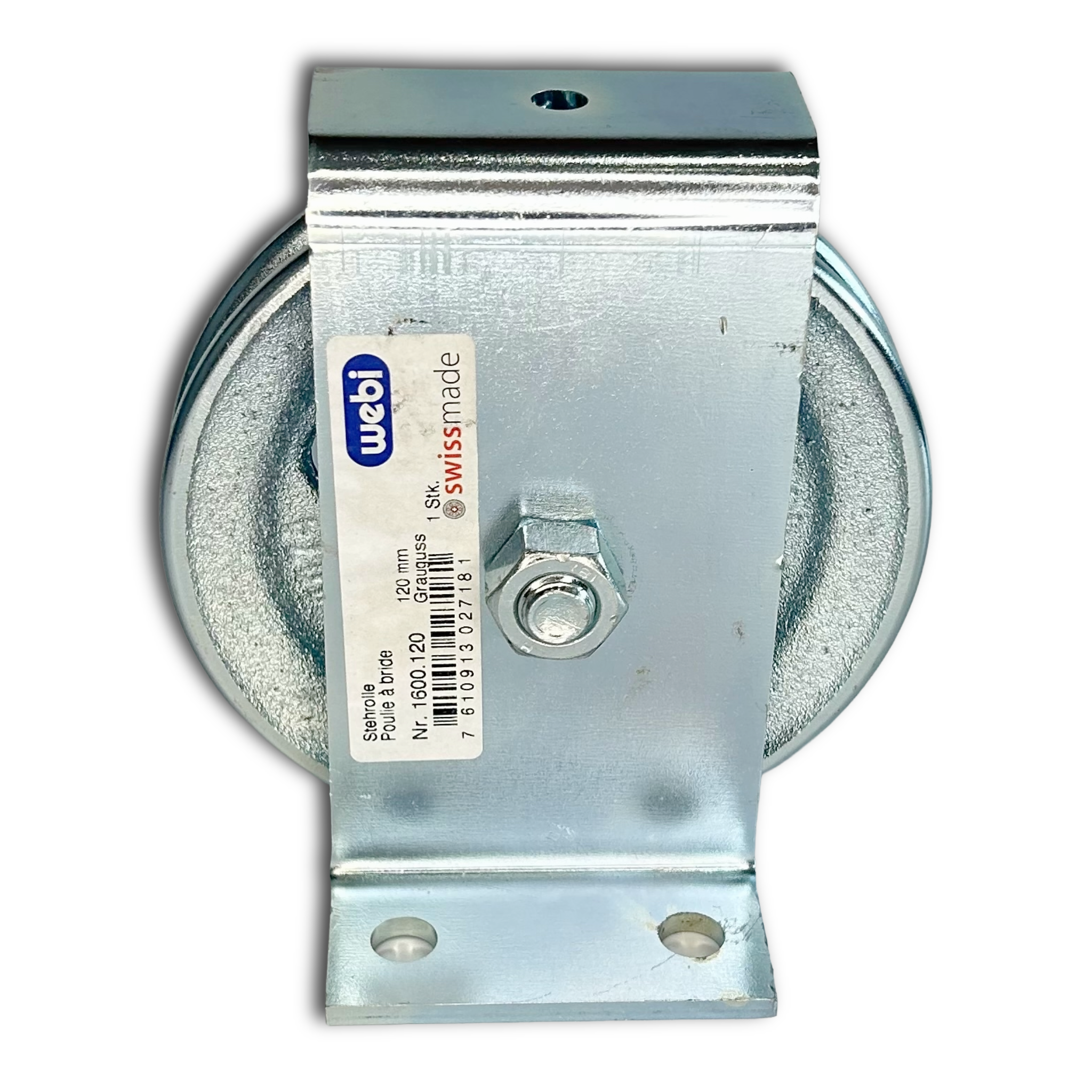

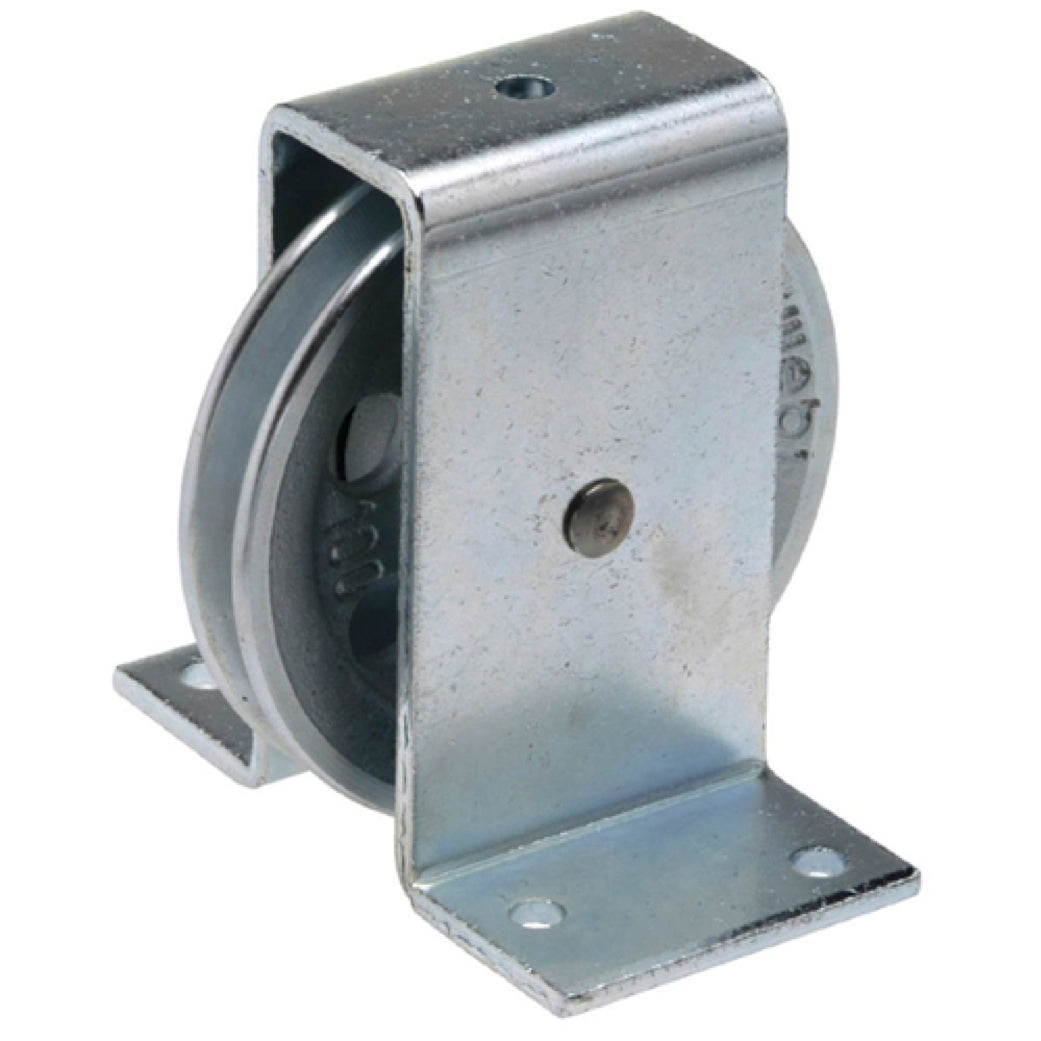

WEBI Pulley Type ETT-160 - Galvanised cast iron pulley with pressed steel bracket (ETTER) Ref: 155-4


  • WEBI Galvanised cast iron pulley with bearing and pressed steel bracket
  • Complete with bearing and fixing bolt
  • Material finish - galvanised cast iron
  • Capacities from 100 kg to 400 kg
  • To suit 3 mm - 5 mm wire rope (see specification PDF for full details)
  • For use with manual and powered winches (any applications where rope needs to be diverted)
  • SWISS MADE "ETTER"
  • Four model types available from stock

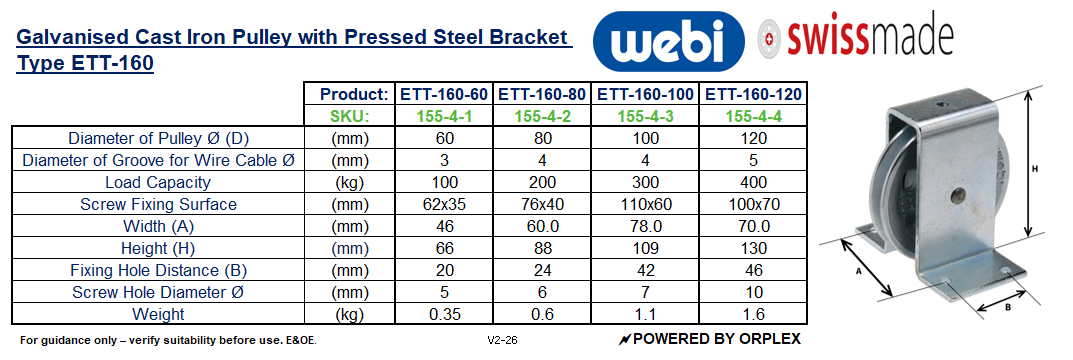

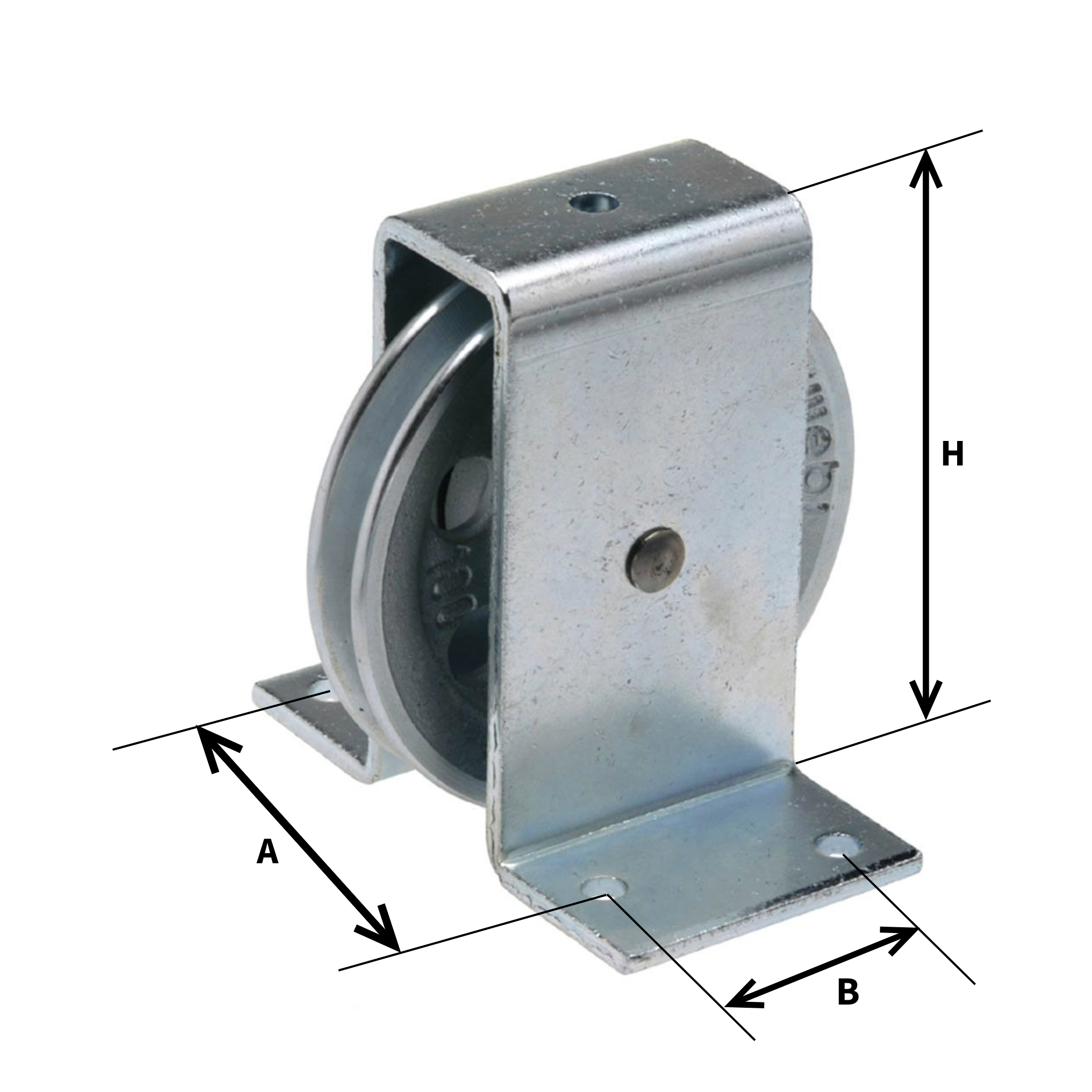

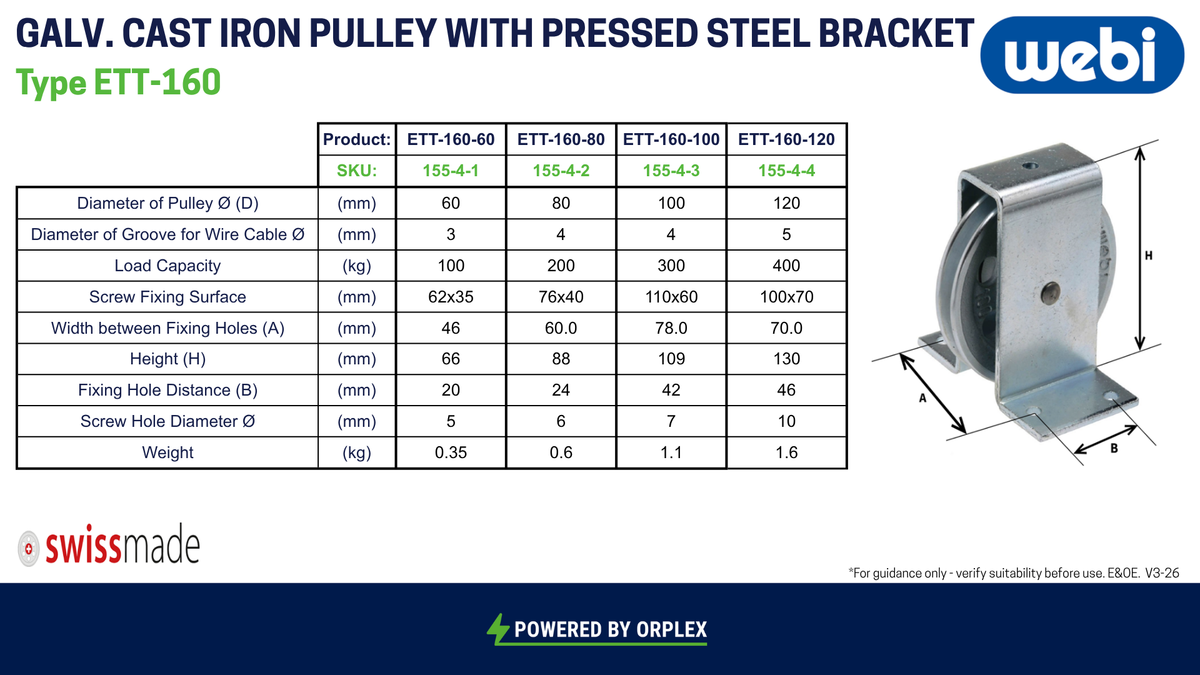

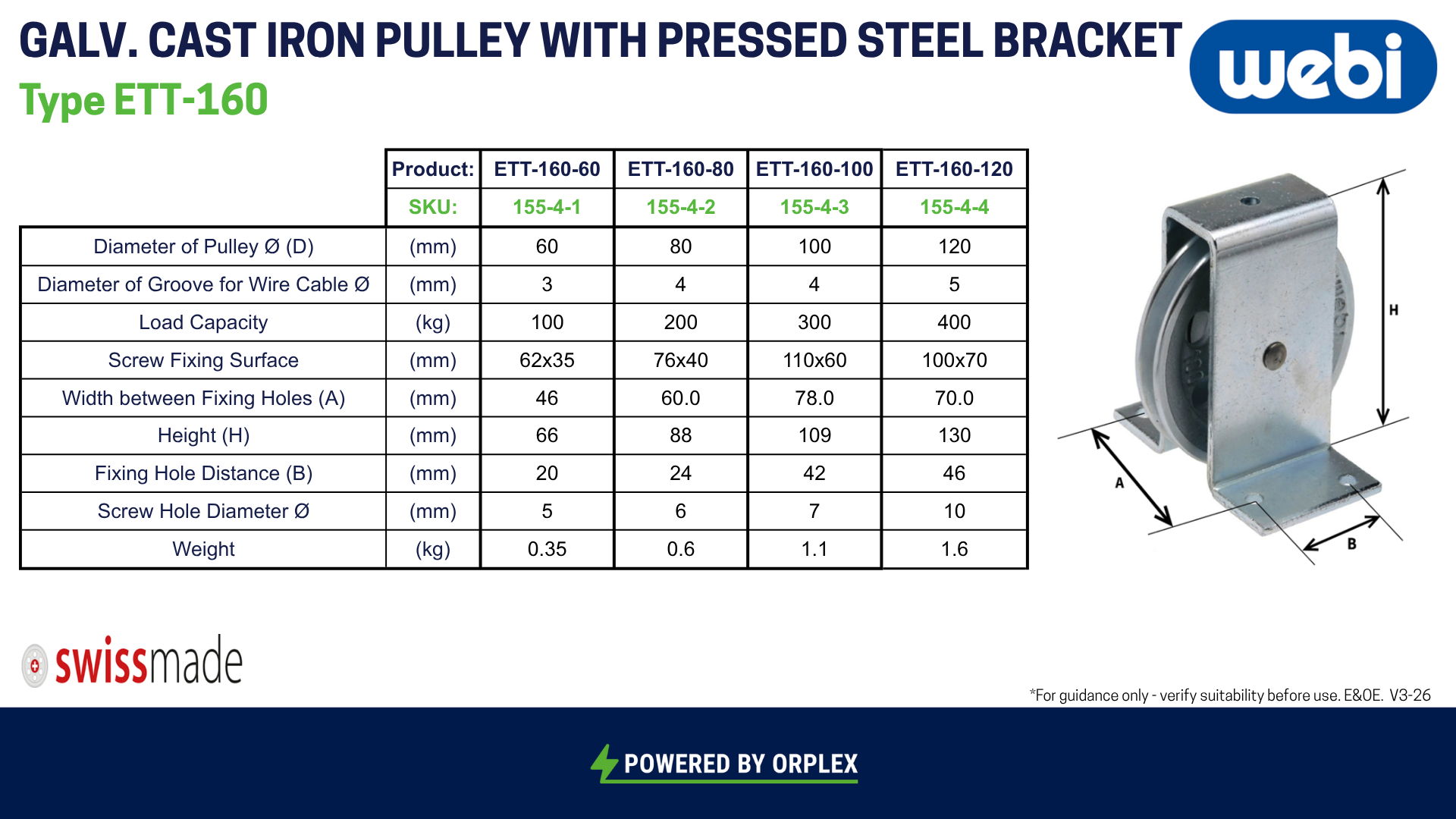

Spec

Model Capacity Pulley Diameter Rope Diameter
155-4-1 100 kg 60 mm 3 mm
155-4-2 200 kg 80 mm 4 mm
155-4-3 300 kg 100 mm 4 mm
155-4-4 400 kg 120 mm 5 mm

    Downloads

    pulleysPulley Cat 2018

    pulleys 160 Pulley Data Sheet
