AFD Hand Winch 190kg to 1180kg - Zinc Finish
Skip to product information
1 of 6

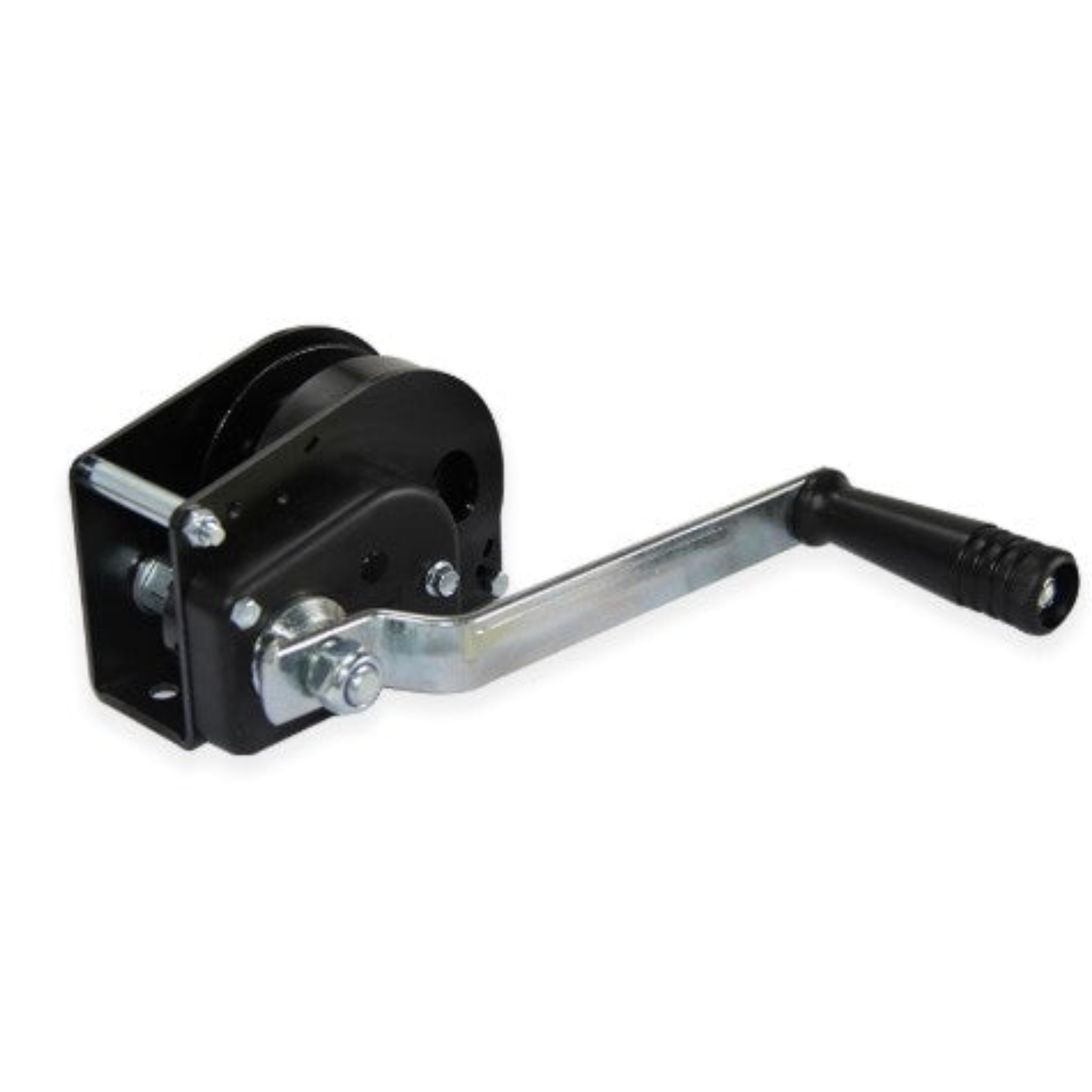

AFD Hand Winch
Move your mouse over image or click to enlarge

Goliath

AFD Hand Winch 190kg to 1180kg - Zinc Finish

AFD Hand Winch 190kg to 1180kg - Zinc Finish

SKU: 151-1-1

Read More
Regular price £72.00 £60.00
Regular price RRP Sale price TODAY'S PRICE £72.00 £60.00

In stock (19)

 More payment options

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

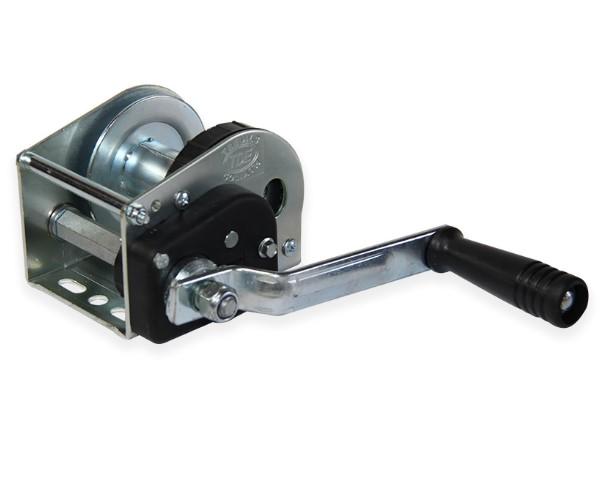

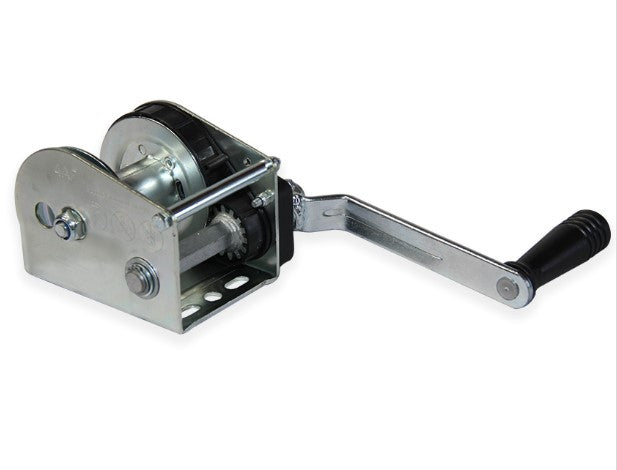

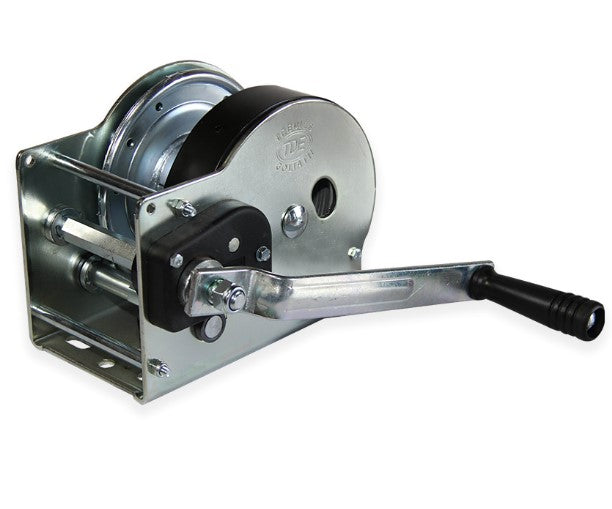

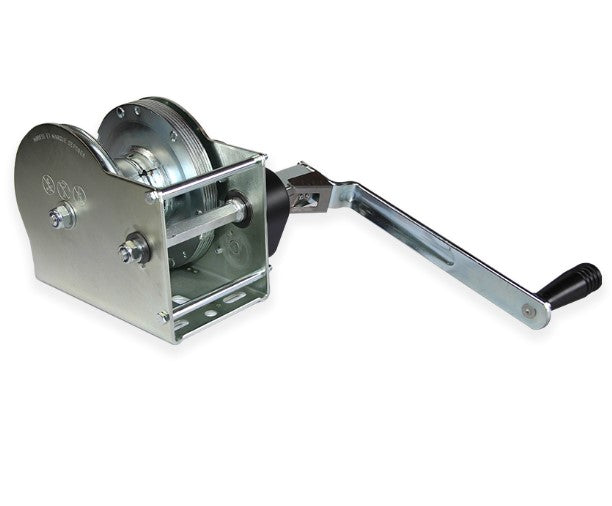

AFD, Goliath Zinc Plated Hand Winch

Goliath AFD winch

Self-braking hoist winches for cable:

- Lifting up to 1180 kg
- Hauling up to 2500 kg

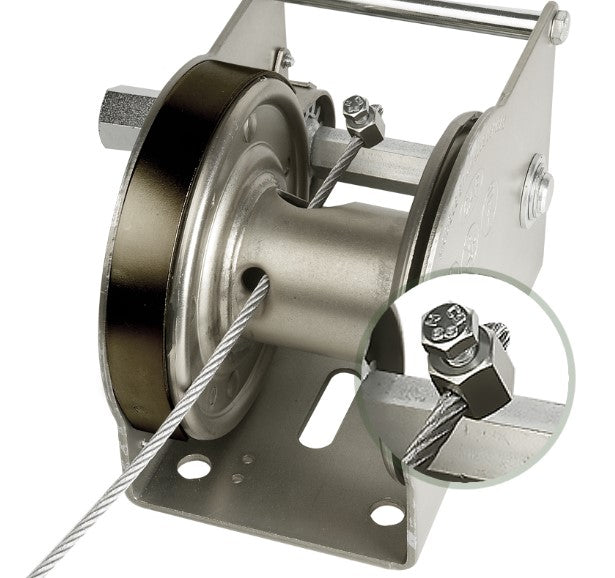

- Quick cable fixing, cable clamp included.
- Enveloping frame
- Quick cable fixing
- Can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate.
- Lightweight
- Inexpensive
- High efficiency through spur gearing
- Smooth running
- All components are zinc plated
- Automatic load pressure brake holds the load. The load can be held without any action from the handle
- Enclosed and protected stamped gears
- For use with wire rope, easy cable mounting without drum removal

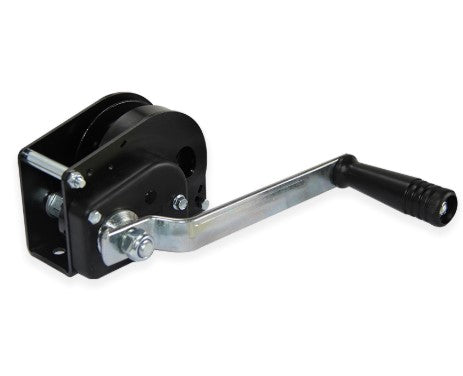

** 4AFMD is supplied in Black finish

Complies with BS EN 13157
CE and TUV Security Accreditation

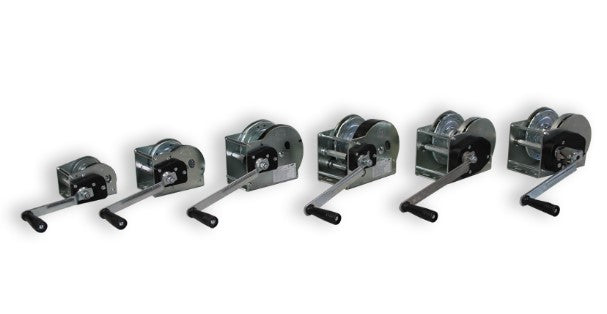

Models available 4AFMD, 4AFD, 6AFD, 8AFD, 12AFD, 20AFD

**As Standard supplied without Wire Rope - Prices available on request**

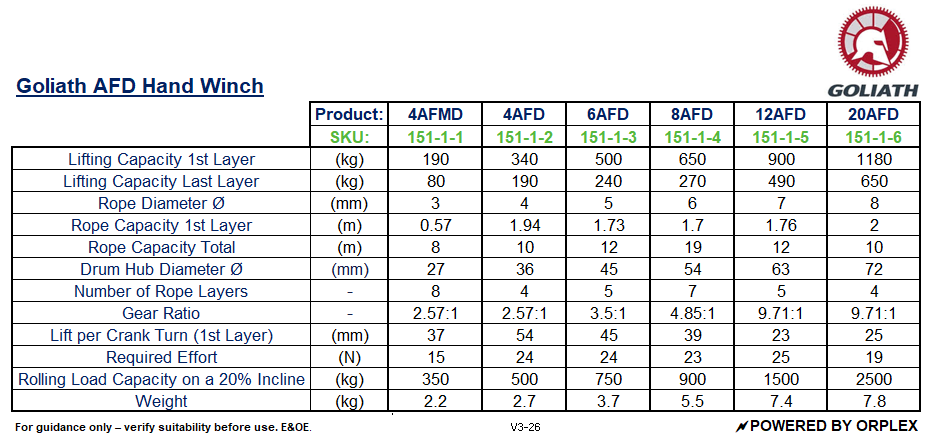

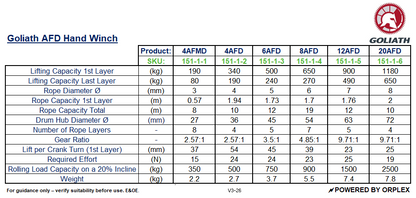

Spec


Haulage load capacity is based on a 20% incline
Minimum load for the brake to function = 10kg



 Type 4AFMD-190 4AFD-340 6AFD-500 8AFD-650 12AFD-900 20AFD-1180
Order Code 151-1-1 151-1-2 151-1-3 151-1-4 151-1-5 151-1-6
Lifting Capacity 1st Layer: 190 Kg 340 Kg 500 Kg 650 Kg 900 Kg 1180 Kg
Lifting Capacity Last Layer: 80 Kg 190 Kg 240 Kg 270 Kg 490 Kg 650 Kg
Haulage Capacity: 350 Kg 500 Kg 750 Kg 900 Kg 1500 Kg 2500 Kg
Rope Capacity 1st Layer: 1 m 2 m 2 m 2 m 2 m 2 m
Rope Capacity Total: 8 m 10 m 12 m 19 m 12 m 10 m
Rope Diameter: 3 mm 4 mm 5 mm 6 mm 7 mm 8 mm
No. of Layers: 8 4 5 7 5 4
Ratio: 2.57:1 2.57:1 3.5:1 4.85:1 9.71:1 9.71:1
Required Effort: 15 N 24 N 24 N 23 N 25 N 19 N
Weight: 2.2 Kg 2.7 Kg 3.7 Kg 5.5 Kg 7.4 Kg 7.8 Kg
