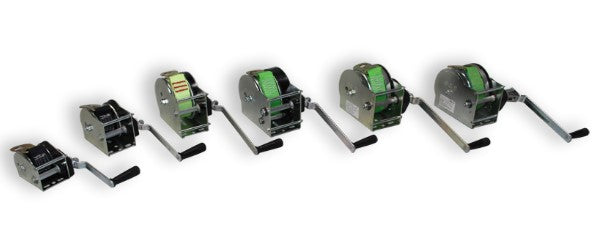

AFDS - Goliath Zinc Plated Webbing Hand Winch complete with webbing strap & hook

SKU: 151-4-1

View more goliath afd winches

AFDS - Goliath Zinc Plated Webbing Hand Winch complete with webbing strap & hook

SKU: 151-4-1

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250

- View options

Click & Collect from BL96EY

- Collect from our warehouse

View full details

Description

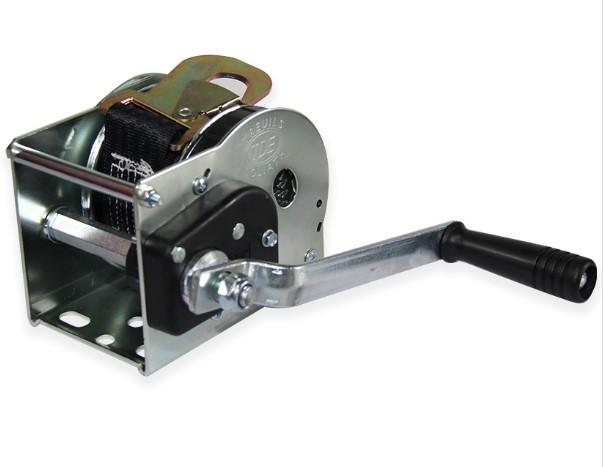

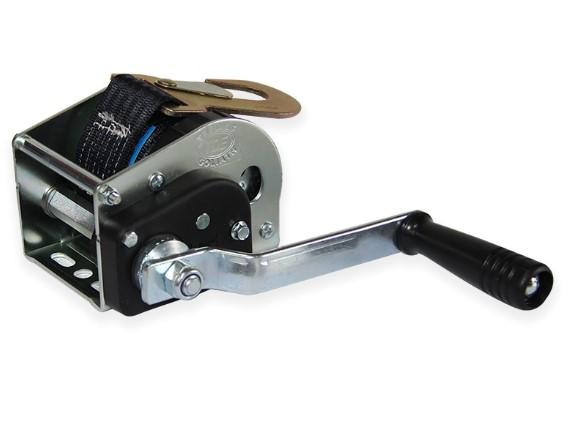

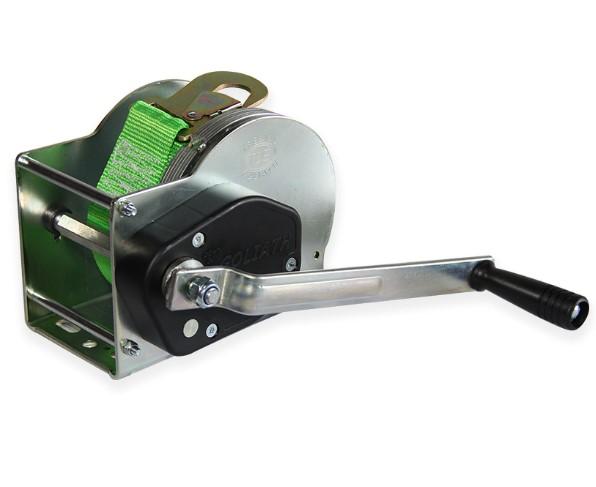

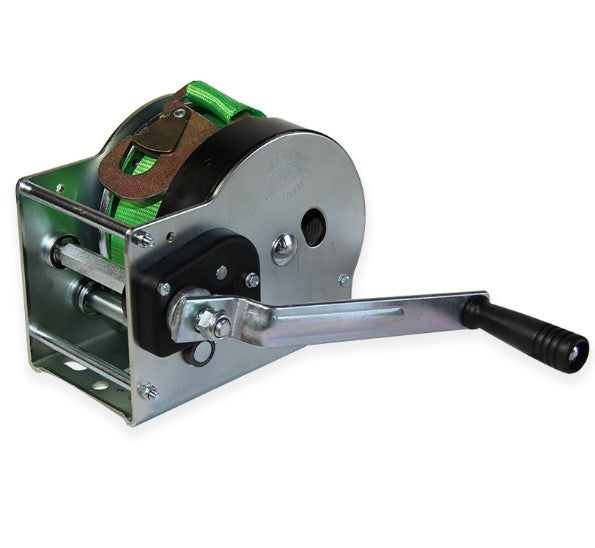

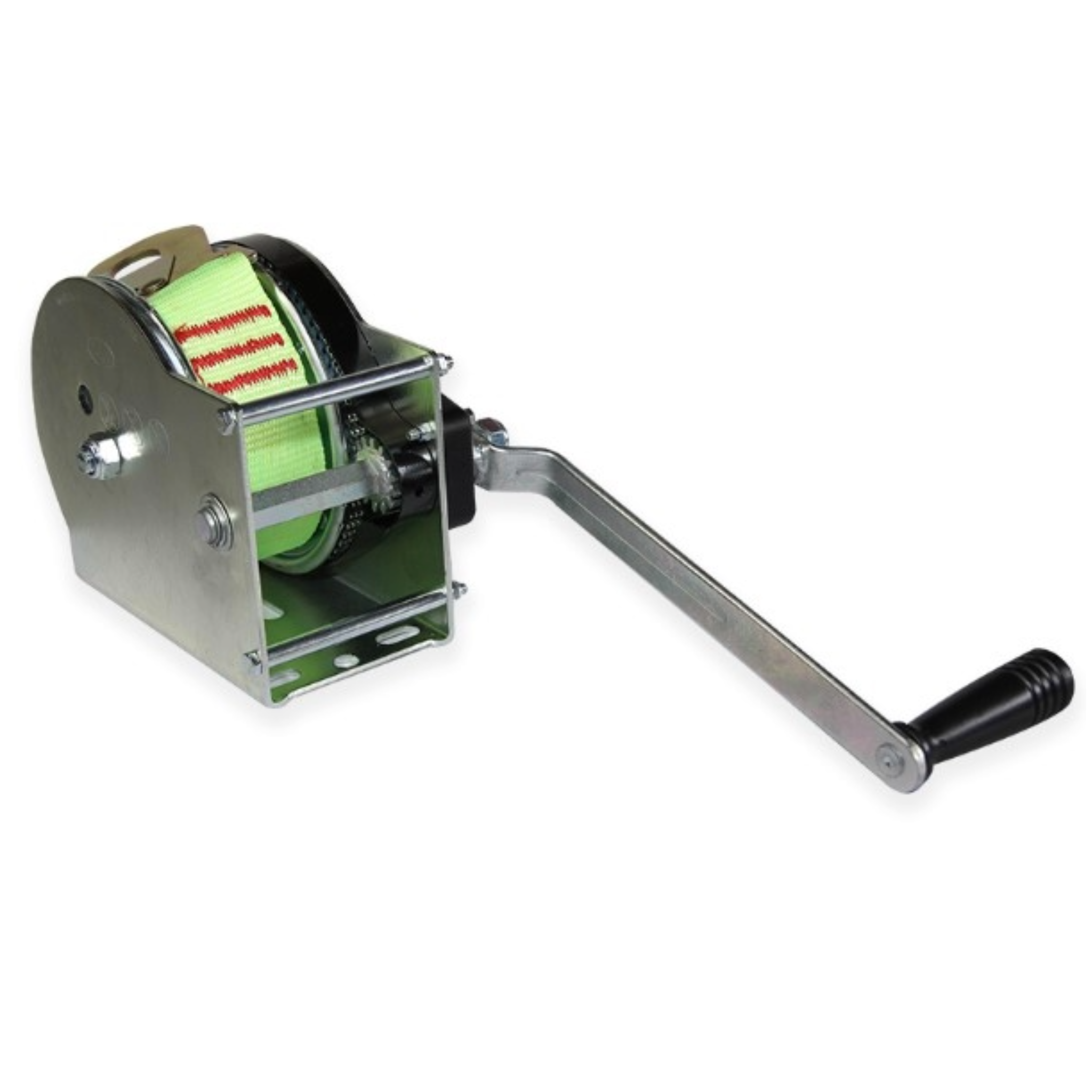

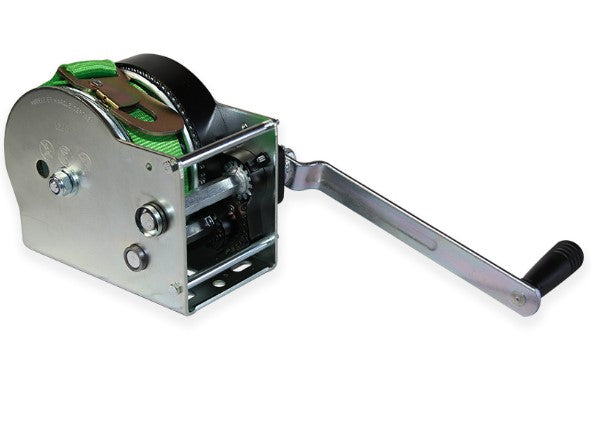

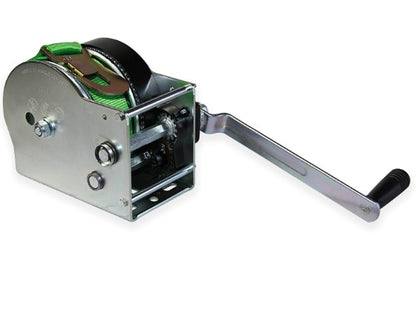

AFDS Winch Webbing Winch

Lifting or Hauling Winch supplied complete with webbing
Hauling capacity is based on a max 20% incline
Can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate.
Complete with 4.6m to 8m metre long 50mm thick webbing strap with hook (webbing length depends on model chosen)
Lightweight
High efficiency through spur gearing
Smooth running
All components are zinc plated providing corrosion resistance
Automatic load pressure brake. The load can be held without any action from the handle (constant positive holding of the load)
Enclosed and protected stamped gears
Complies with BS EN 13157
CE and TUV Security Accreditation

Downloads

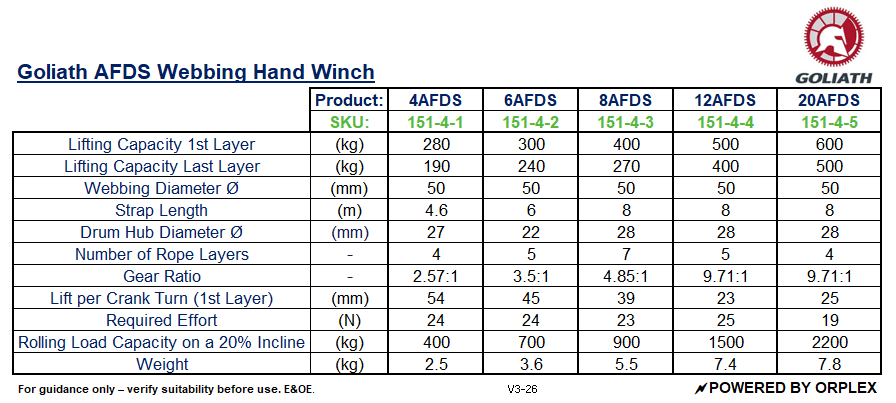

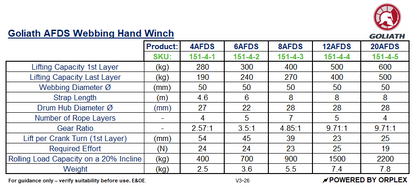

Product data sheet

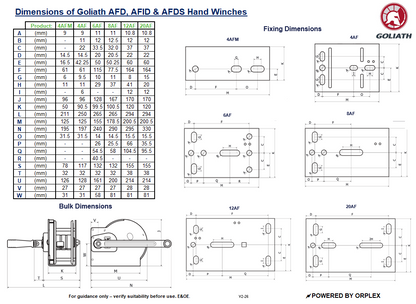

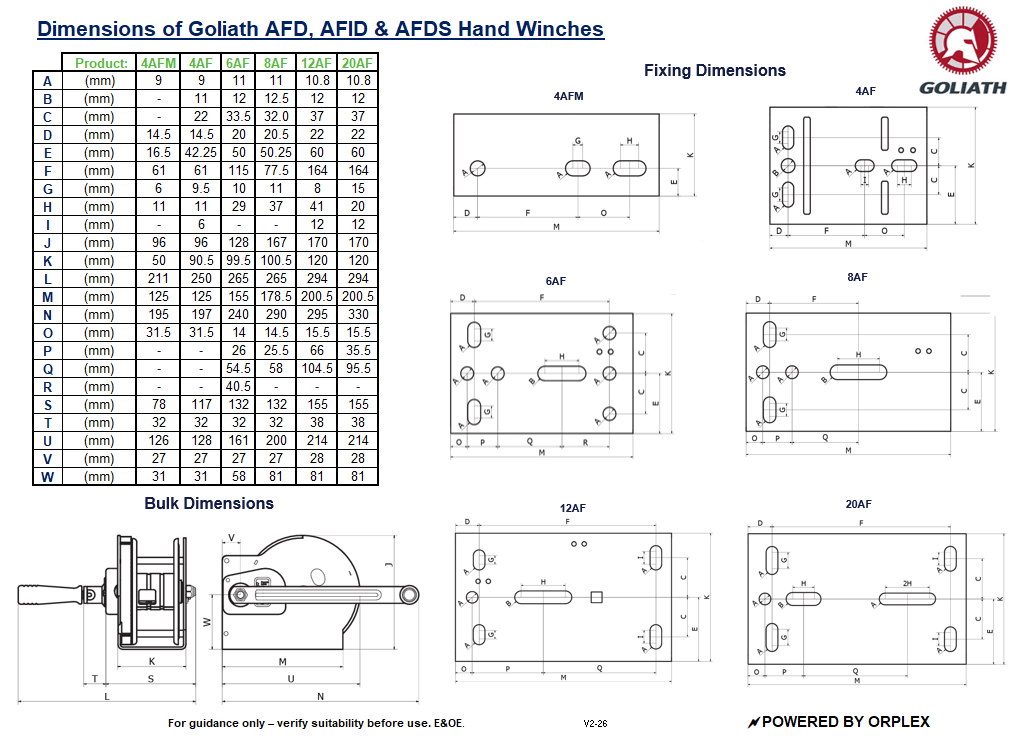

Dimensions

Downloads

Download - Overall_dimensions_-_Goliath_AF_winches-min.pdf
