230v Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

Runpotec

230v Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

230v Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

SKU: 123-1-48

Skip to product information
1 of 7

Runpotec

230v Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

230v Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

SKU: 123-1-48

Read More
Regular price £2,430.00
Regular price RRP Sale price TODAY'S PRICE £2,430.00

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

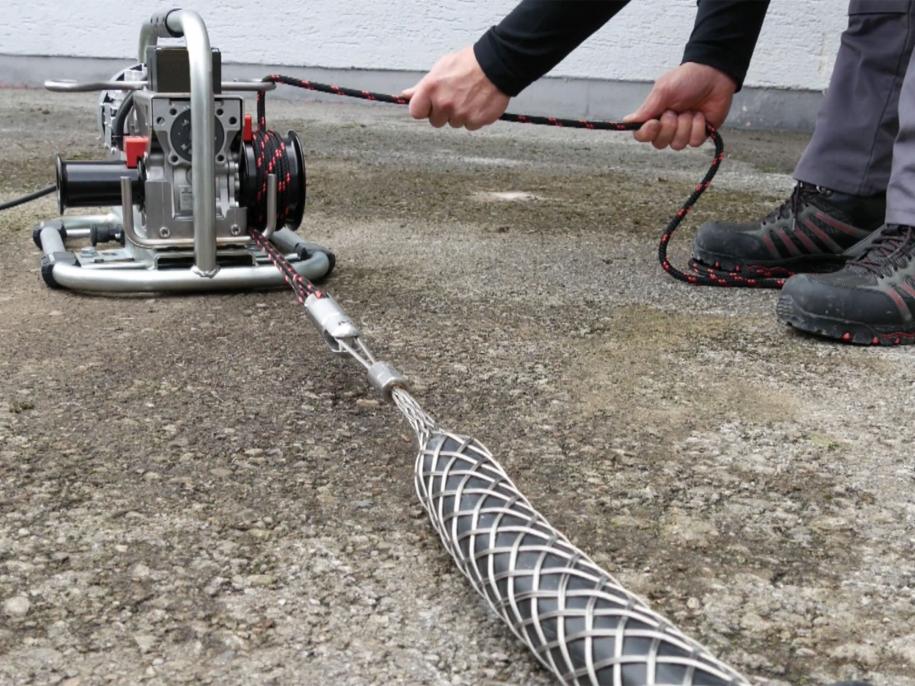

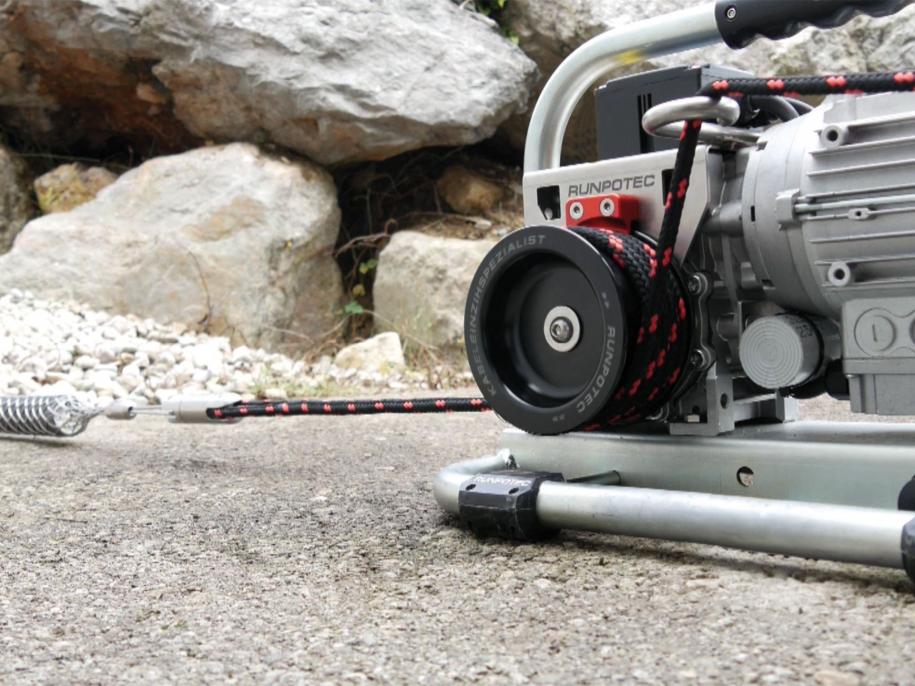

Ideally suited for horizontal pulling of one or more cables. Where several persons are needed for higher pulling loads on many sites, one person is sufficient to pull in the cables with the CW 800 E capstan winch by RUNPOTEC with a choice of 800 kg or 400 kg.

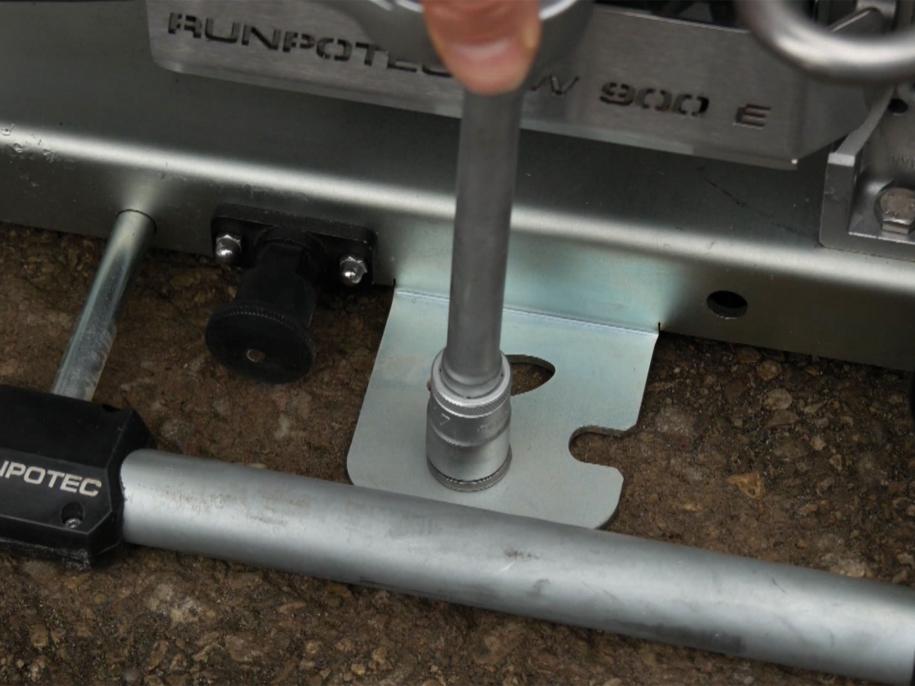

The capstan winch can be fixed via the mounting holes or attached to solid objects with the enclosed strap. The trolley mounting rail also offers a very practical fastening option. It can be attached to the trailer hitch of a vehicle through the special coupling opening. It is also possible to mount the rail horizontally or vertically, and then simply hook in the CW 800 E capstan winch and fasten it using the two fixing bolts.

NOTE - THIS PRODUCT HAS A LEADTIME OF 4 TO 5 WEEKS FROM ORDER IF OUT OF STOCK

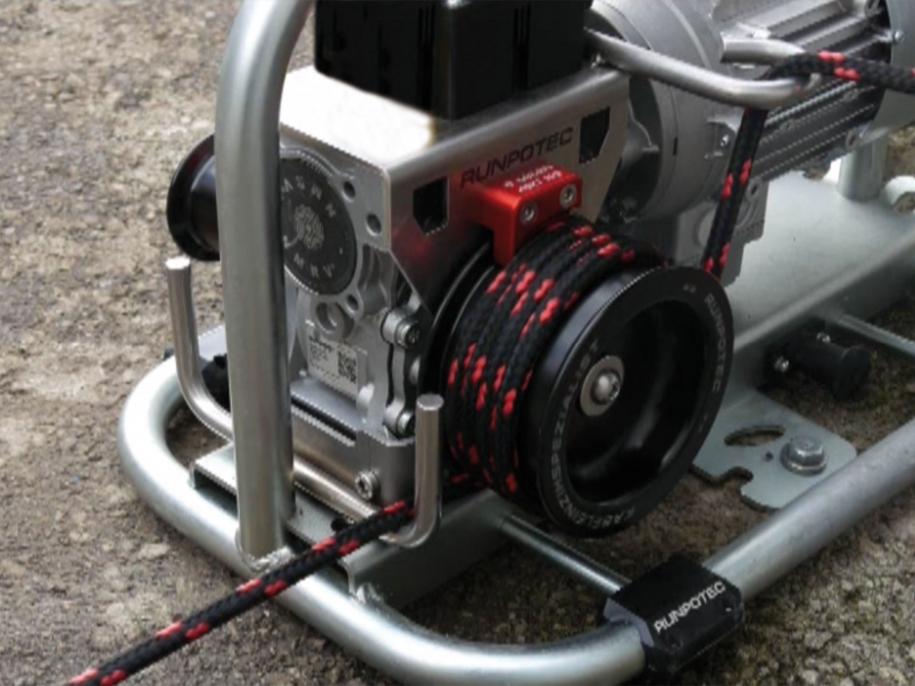

RUNPOTEC recommends the use of Ø 10 mm polyester for the
pulling rope as this has the ideal wrap factor


Safety instructions:
Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons.

Optimal area of application: for horizontal cable pulling.
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.

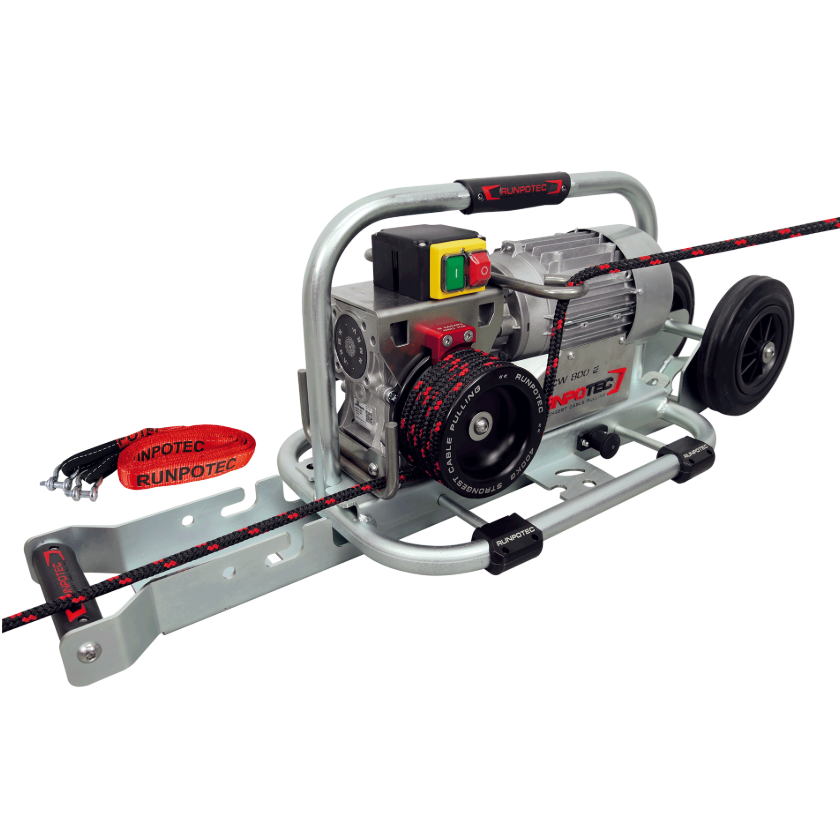

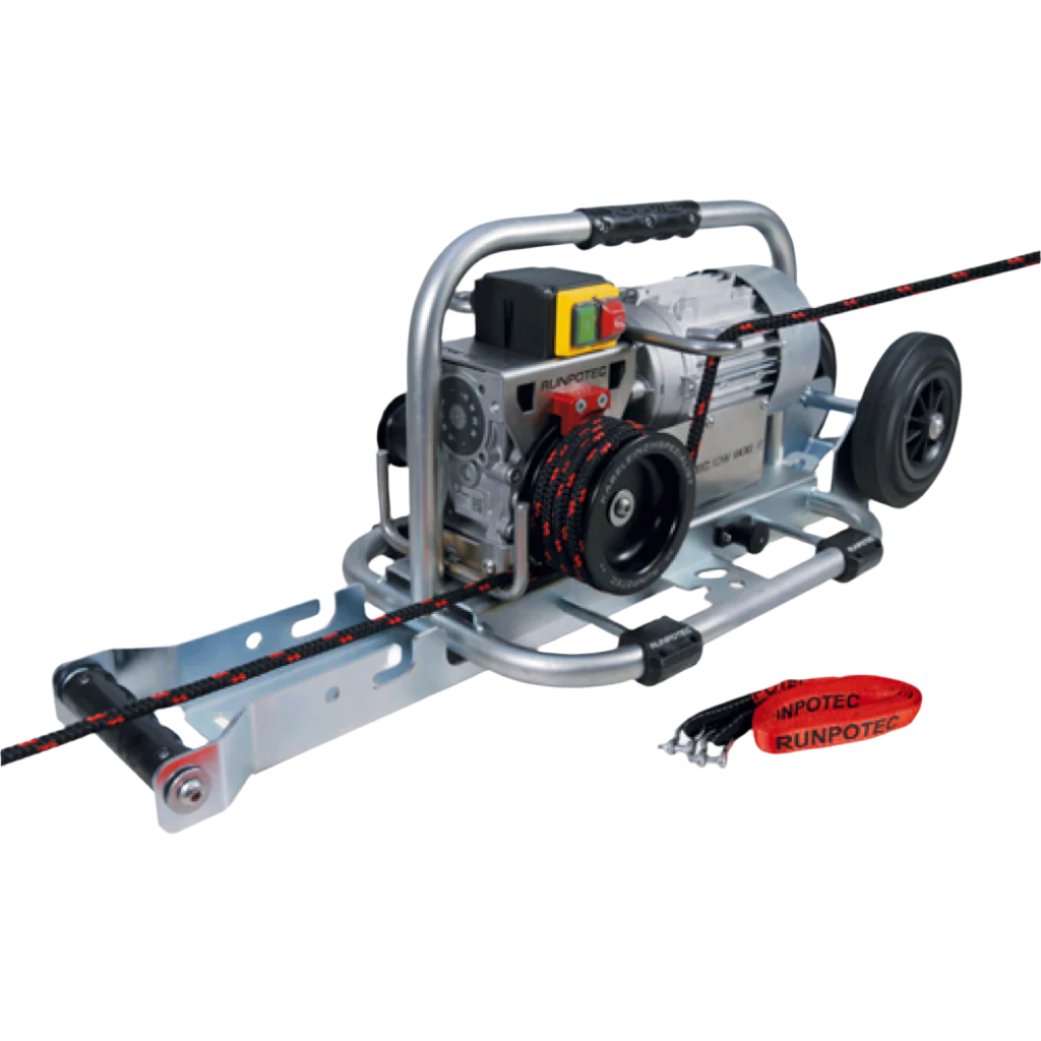

Scope of delivery: capstan winch CW 800 E incl. trolley mounting rail and strap

ADVANTAGES

    • One person can pull up to 800 kg with the
      CW 800 E capstan winch
    • Selectable traction force or traction speed
      800 kg | 400 kg
    • Small, compact, handy
    • Many mounting options
    • Safety rope guide
    • Overload protection

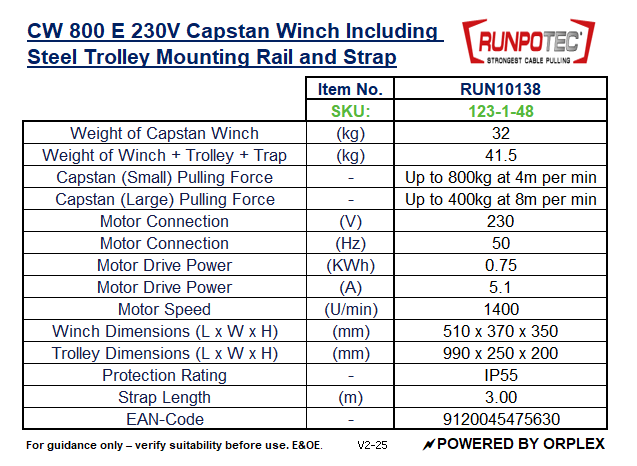

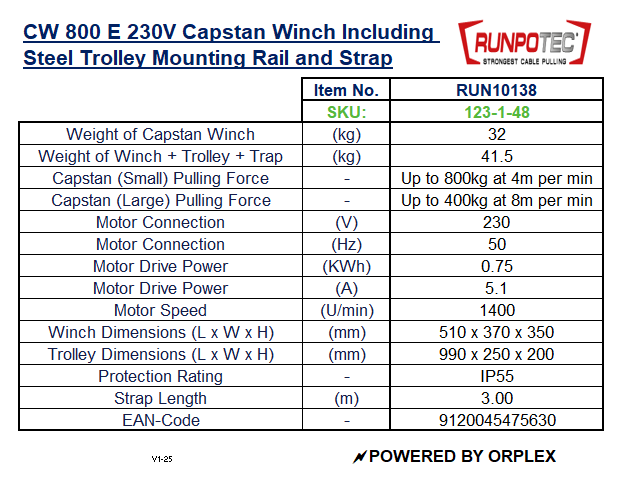

Spec

Dimensions: L 1000 x B 370 x H 330 mm
Weight: 41,20
Strap length: 3 Meter
Motor connection: 230 V / 50 Hz
Motor drive power: 0,75 KWh / 5,1 A
Motor speed: 1400 U / min
Capstan (Small) Pulling force: up to 800 kg at 4m per min.
Capstan (Large) Pulling force: up to 400 kg at 8m per min.
EAN-Code: 9120045475630
