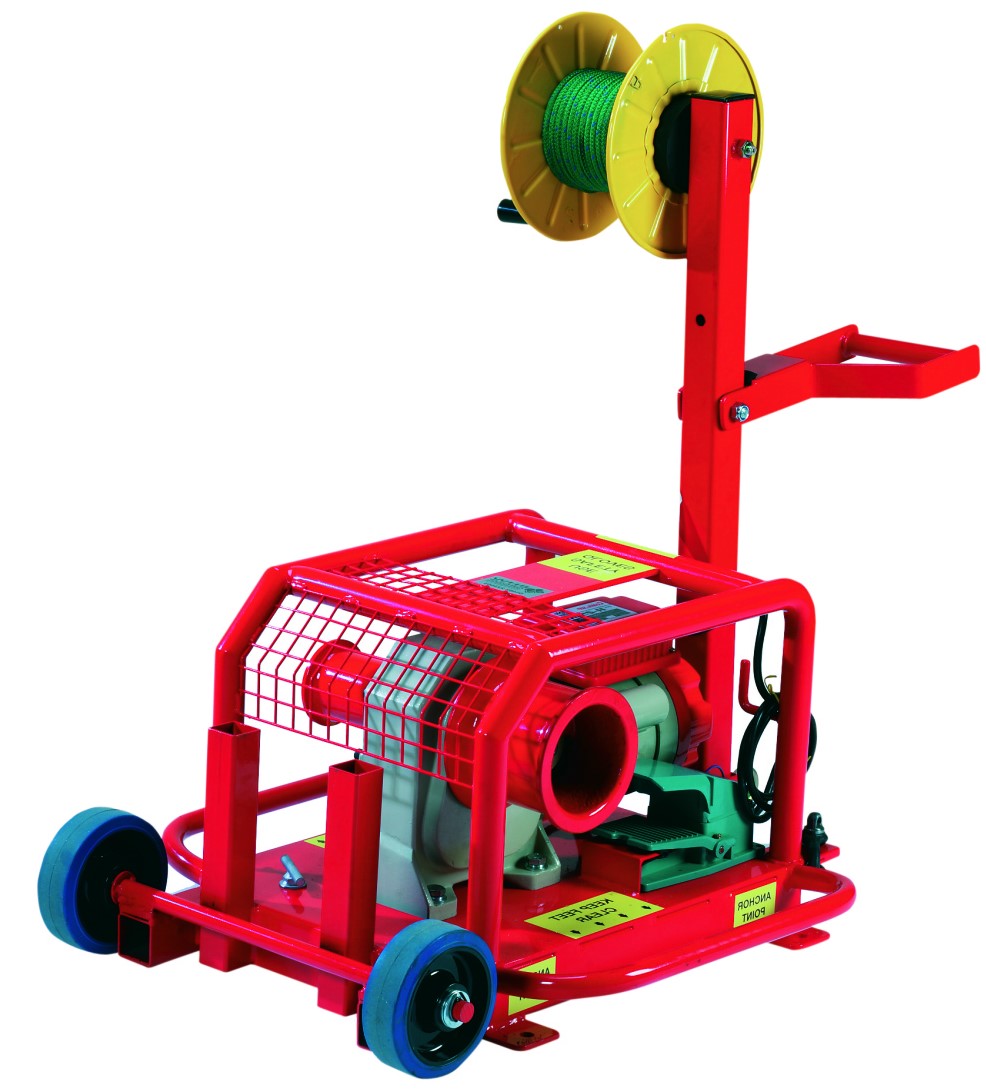

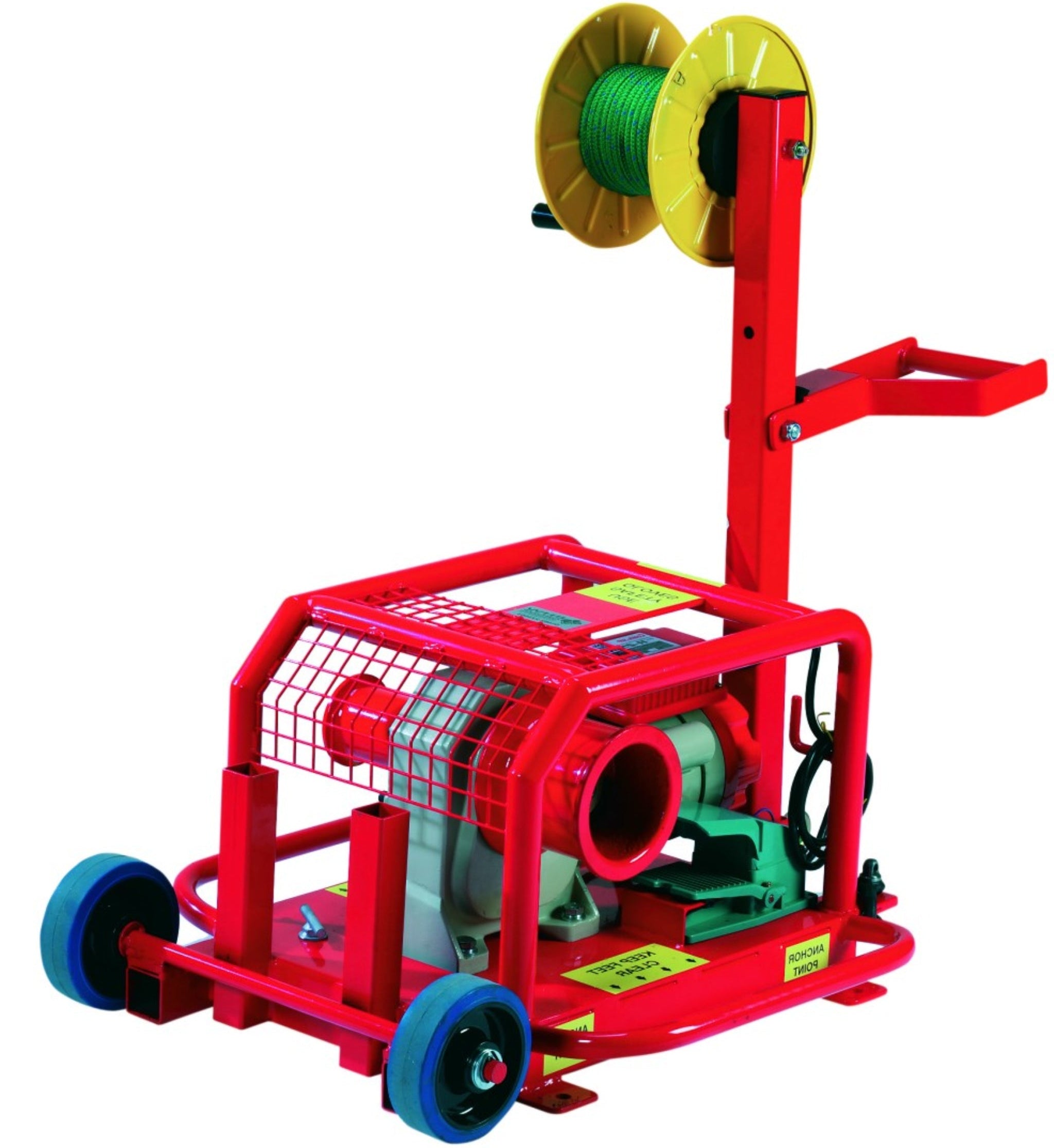

Electric Cable Puller Winch - 2500kg Pulling Capacity (with Small Drum)
The Cable Puller provides the perfect solution to installing long or heavy lengths of cable in difficult locations. It reduces the manpower hours required to meet installation deadlines, and is safer and faster.
- Unlimited length of pull and choice of rope speed
- Compact, lightweight and portable
- 110V or 240V AC model for internal use in buildings and tunnels
- Reverse rotation for controlled release at high loads
- Small drum supplied as standard, please request large drum
-
If not in stock this item can have a lead-time of 1 to 2 weeks, please enquire with sales@rigginguk.co.uk for further information.
Recommended 10mm pulling rope HERE

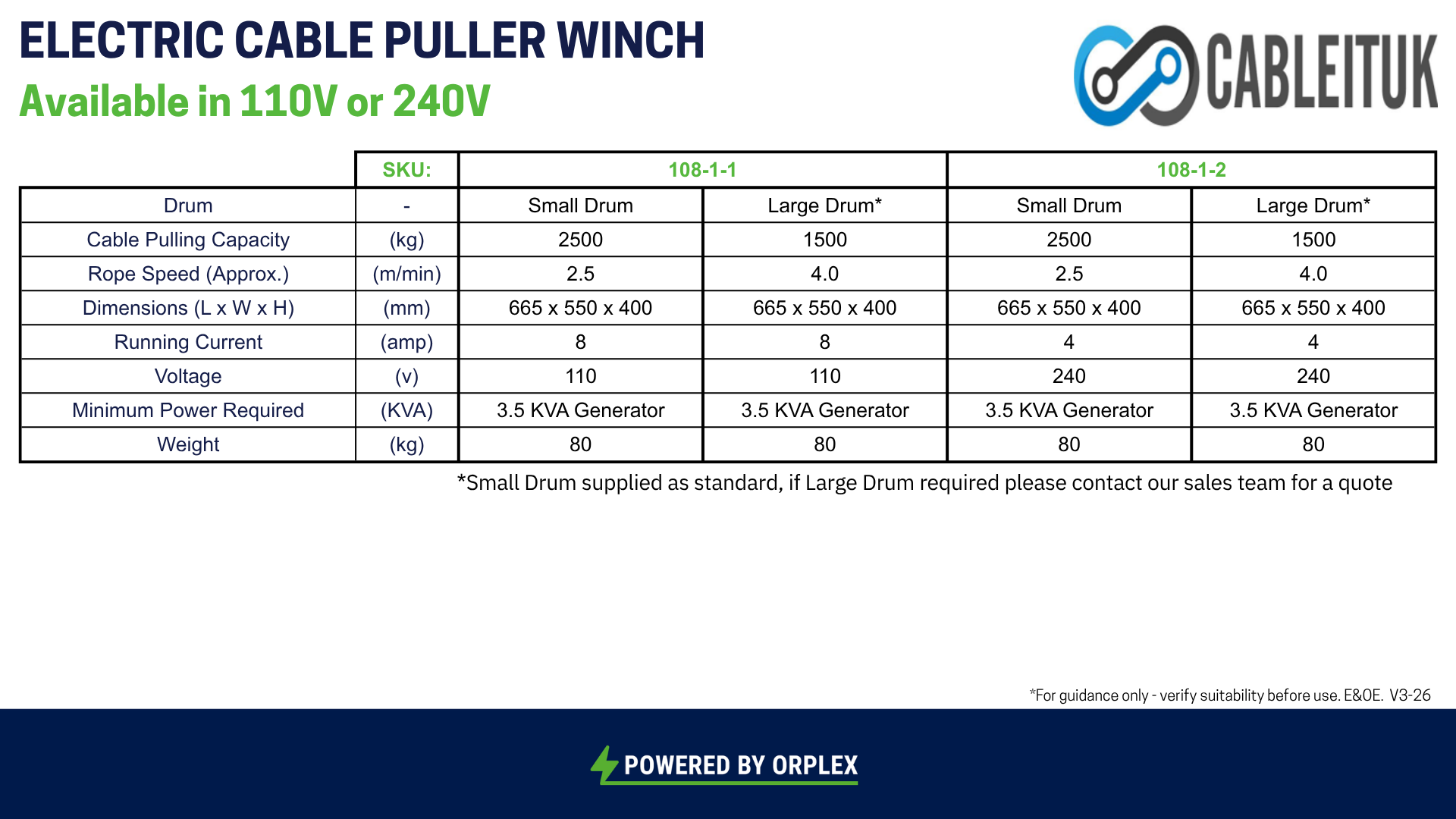

CABLE PULLER |
*SMALL DRUM |
LARGE DRUM
|
Cable Pulling Capacity (kg) |
2500 |
1500 |
Rope Speed m/min (approx.) |
2.5 |
4.0 |
Dimensions (mm) |
L: 665 x W: 550 x H: 400 |
L: 665 x W: 550 x H: 400 |
Weight (kg) |
80 |
80 |
Running current: 8amp = 110v : 4amp = 240v
|
|
|
Minimum Power required: 3.5 KVA Generator
|
|
|
Accessories Included:
Detachable Rope Storage Drum as shown (larger drum available as an option) Deadman Foot Control with 2m cable 2 x Tie-Down Shackle
Downloads
Data Sheet
Manual
