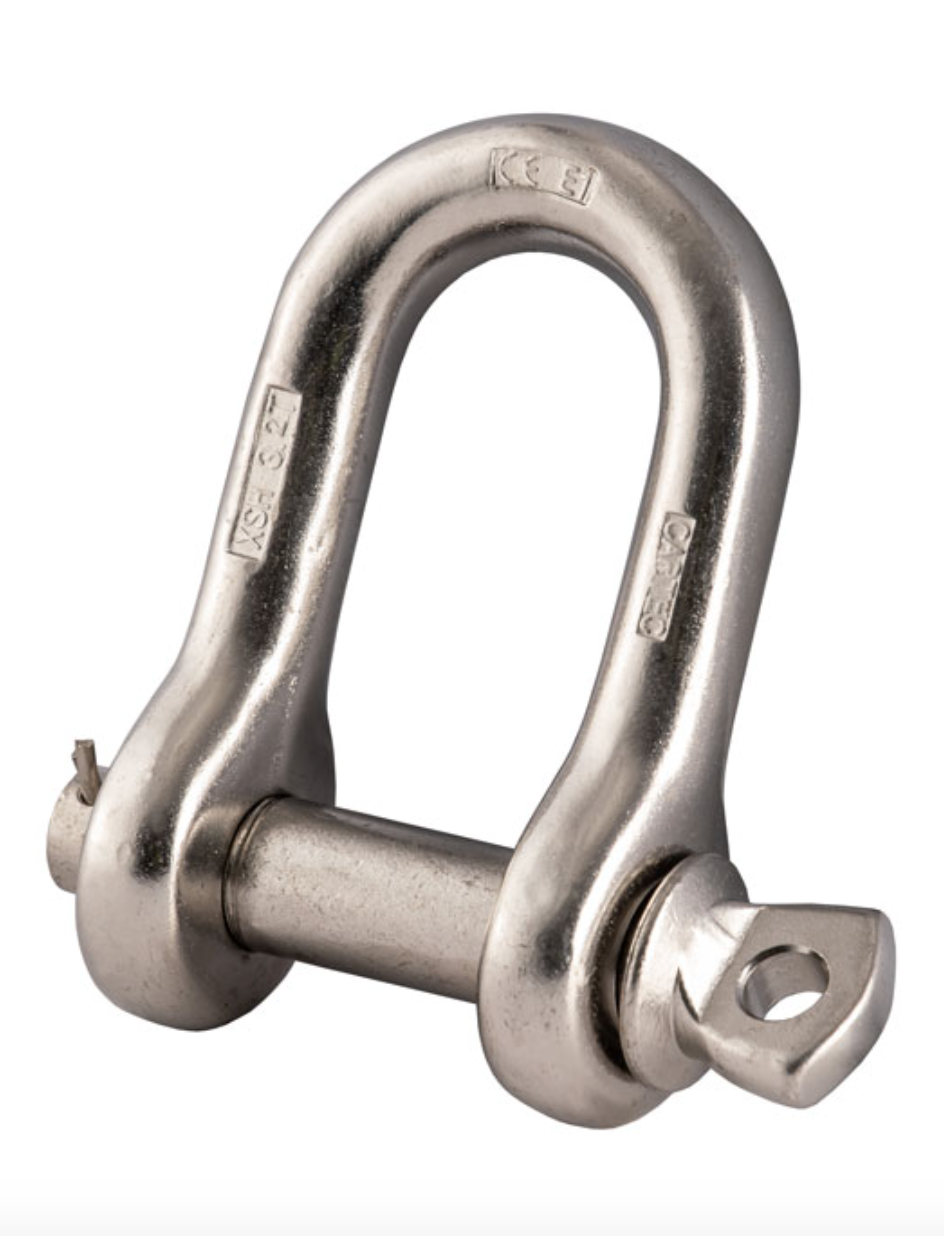

Cartec Grade 6 AISI 316L Dee Shackle with Screw Collar Pin
Cartec SKU: 286-317-1
Grade 6 Dee Shackle with Screw Collar Pin Material: Grade 6 stainless steel, AISI 316L. Finish: Surface blasted for a uniform, smooth finish.... Read More
Regular price
ÂŁ18.00
Regular price
Sale
Sale price
TODAY'S PRICE
ÂŁ18.00
Unit price
per
In stock (6)
StockTax included.
Shipping calculated at checkout.
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description
Grade 6 Dee Shackle with Screw Collar Pin
- Material: Grade 6 stainless steel, AISI 316L.
- Finish: Surface blasted for a uniform, smooth finish.
- Markings: Clearly marked with CE, W.L.L, manufacturer's ID, product ID mark, and traceability code.
- Support: Full CAD support available upon request.
- Certification: Declaration of Conformity (DoC)
Specification
| SKU | A | B | C | D | E | F | M |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| 286-317-1 | 18 | 34 | 18 | 9 | 8 | 33 | M10 |
| 286-317-2 | 25 | 49 | 25 | 13 | 12 | 40 | M14 |
| 286-317-3 | 32 | 64 | 32 | 17 | 16 | 60 | M18 |
| 286-317-4 | 41 | 79 | 47 | 21 | 19 | 78 | M22 |
| 286-317-5 | 56 | 106 | 60 | 29 | 25 | 109 | M30 |
| 286-317-6 | 76 | 144 | 75 | 38 | 34 | 152 |
M39 |
| SKU | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|
| t | kN | kN | kgs | |
| 286-317-1 | 0.5 | 10 | 20 | 0.07 |
| 286-317-2 | 1.25 | 25 | 50 | 0.22 |
| 286-317-3 | 2 | 40 | 79 | 0.52 |
| 286-317-4 | 3.2 | 63 | 126 | 0.8 |
| 286-317-5 | 5 | 99 | 197 | 2.2 |
| 286-317-6 | 13 | 256 | 511 | 7 |
Downloads
Product Questions & Answers
Product Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Cartec Grade 6 AISI 316L Dee Shackle with Screw Collar Pin
Regular price
From ÂŁ18.00
Regular price
Sale price
ÂŁ18.00
Unit price
per

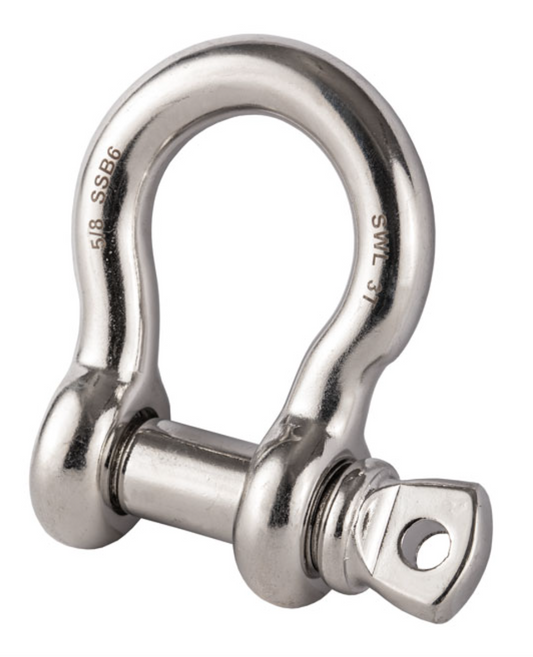

Stainless Steel Load Rated Screw Collar Pin Bow Shackle
Regular price
From ÂŁ9.60
Regular price
Sale price
ÂŁ9.60
Unit price
per
Stainless Steel AISI 316 Load Rated Screw Collar Pin Dee Shackle
Regular price
From ÂŁ8.40
Regular price
Sale price
ÂŁ8.40
Unit price
per

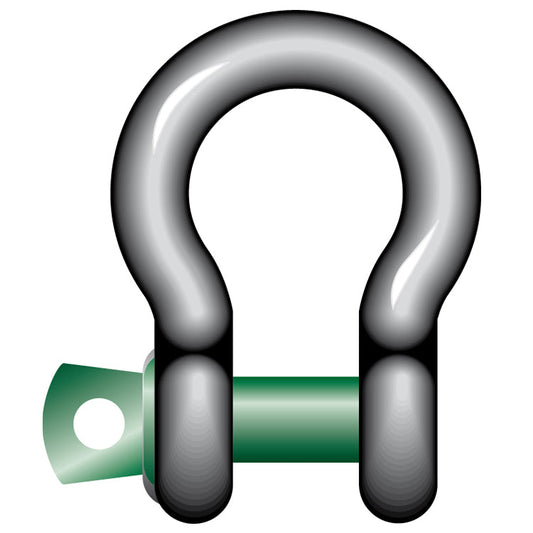

Green Pin Grade 6 Bow Shackles with Screw Collar Pin
Regular price
From ÂŁ4.56
Regular price
Sale price
ÂŁ4.56
Unit price
per

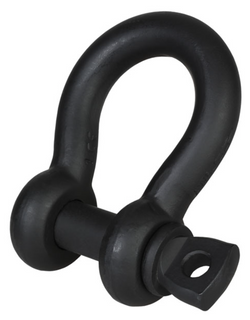

Green Pin Grade 6 Theatre Bow Shackle with Screw Collar Pin - with Matt Black Finish
