Description

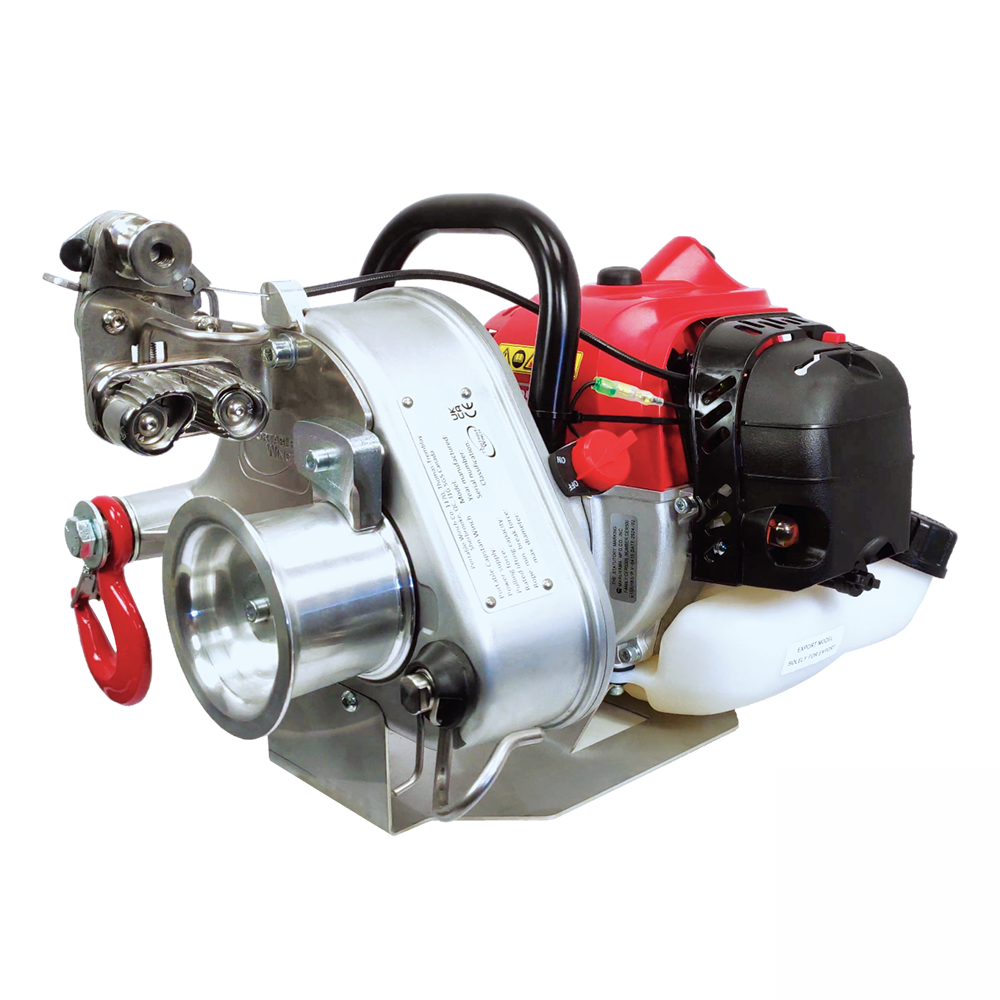

PCW4500 Petrol Pulling Winch 1200kg

Introducing the PCW4500The Pinnacle of Pulling Power

The latest capstan winch designed by Portable Winch Co. The very first model featuring a 2-stroke engine in the product line. Its Maruyama engine makes it the most reliable on the market with its 5-year warranty.

Boast a staggering 1,200 kg (2,650 lb) of TRUE pulling power and reach up to 6,000 kg (13,250 lb) by using 2 double pulleys. Check the Downloads tab to get to the tutorial.

Featuring a unique stainless steel rope brake* (progressive capture system) to hold the load in place, a centrifugal clutch for better control, a protective plate to fit your foot at start up and tension rode on entry hook to prevent rope entanglement.

Built for professionals, experience the simplicity of use and peace-of-mind proposed by the PCW4500.

  • 2-stroke commercial-grade engine by Maruyama Japan
  • Centrifugal clutch & stainless steel rope brake
  • Fuel: same petrol/oil mix as a chainsaw (See manual for all details)
  • Drum size : 76 mm

QUICK RELEASE AUTOMATIC ANTI ROLL-BACK MECHANISM

The Portable Winch Co. engineering team strikes again by designing this simple and ingenious device!

As soon as you pull the rope that goes through the ARM, the centrifugal clutch activates, and the winch begins to pull. As soon as the rope is released, the drum stops rotating and the automatic mechanism does its job by holding the load in position! Disengage the rope in one simple movement! Nothing is easier.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : 5-Year MARUYAMA Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

GTIN / EAN13: 690581022006



Specification

PCW5000 Petrol Pulling Winch 1000kg Ref: 167-2-6

Manufacturer PORTABLE WINCH
Max Pull Capacity 1000kg
Max Lifting Capacity Not Rated For Lifting
Installed Capstan Size 57mm (Optional 85mm Drum Available - Reduces Capacity)
Speed with Installed Capstan 12 m/min
Rope Size Min 10mm | Max 16mm | Ideal 12mm
Engine/Motor Honda 4-stroke GXH-50 cc
Gear Ratio 110:1
Dry Weight 16kg
GTIN / EAN13 690581000010
