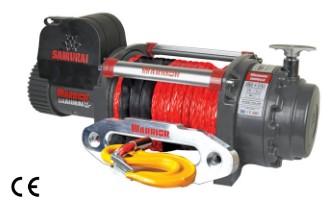

Samurai 20000 (9072kg) Electric Winch with Synthetic Rope 12v

• CORROSION FREE – All brass series wound motor is protected against corrosion.
• DOUBLE SEALED – Features a double sealed motor, sealed waterproof contactor and double sealed drum for extra protection.
• LINE CAPACITY – 20,000lb (9072KG)

Warrior Samurai 20000 Winch - 12v with Synthetic Rope

If you’re in need of incredible pulling power – look no further. Boasting a line capacity of a huge 9000kg, the Samurai S20000 offers one of the best £ for lb ratio on the market right now.

Getting any job done with ease, this winch has a line pull of 0.9m per minute at full load. With you a choice of either steel or synthetic rope, there’s no compromising on power.

Protected against corrosion, the all-brass series wound motor is designed for long-life. Also including a double sealed motor and drum, as well as a sealed waterproof contactor, this Samurai winch is protected and prepared for all weathers.

Heavy-duty, super-strong and long lasting, the efficient full steel planetary gearing is the cherry on top of a high-quality winch that won’t break the bank.

Standard Features:

• Line Capacity: 20000lb (9072kg)
• Motor: Series Wound Motor - Powers In and Out
• Gearbox: Freespooling Clutch - Allows cable to be unwound manually
• Warranty: Limited Lifetime Warranty with 3-Year Electrical Cover

Accessories:

• Wired Hand Control: 3m Wired Hand Control
• Mounting Plate: Available as an optional extra
• Mounting Bolts: Included for Standard installations
• 1.5m Heavy Duty Battery Cables (May need extending depending on application)
• Battery Isolation Switch (Failure to fit will invalidate warranty)
• Instruction Manual

Other Information:

• Dimensions: 610mm L x 218mm D x 272mm H
• Mounting Bolt Pattern: 254mm x 114.3mm and 254mm x 254mm x 165.1mm
• Line Pull - No Load: 6.0 m/min (100 Amps)
• Line Pull - Full Load: 0.9 m/min (480 Amps)

The Samurai 20000lb winch is designed for the toughest of applications & tested in the most extreme environments imaginable, this great piece of kit boasts a massive 7.5 hp Series wound motor, which is housed in full steel supports, ensuring this immense Warrior is ready for any battle.

Available in 12v or 24v this Beast comes packed with all the features you would expect from the Samurai Range, the motor and gearbox are fully double sealed, the high spec motor boasts brass internals, all the external fittings are stainless steel & the smooth planetary gearing is full steel. All this is backed up by the unrivalled Warrior Lifetime Warranty.

12v Option order SKU 161-8-27

24V Option order SKU 161-8-28

Please note : This winch can only be front mounted using the appropriate IST640 mounting plate

Features

• All brass (no corrosion) series wound motor
• Double sealed motor
• Sealed waterproof contactor
• Contactor cover for added protection
• Double sealed drum (gearbox/motor)
• Sealed 3 stage planetary gears
• Stainless steel 4 way fairlead
