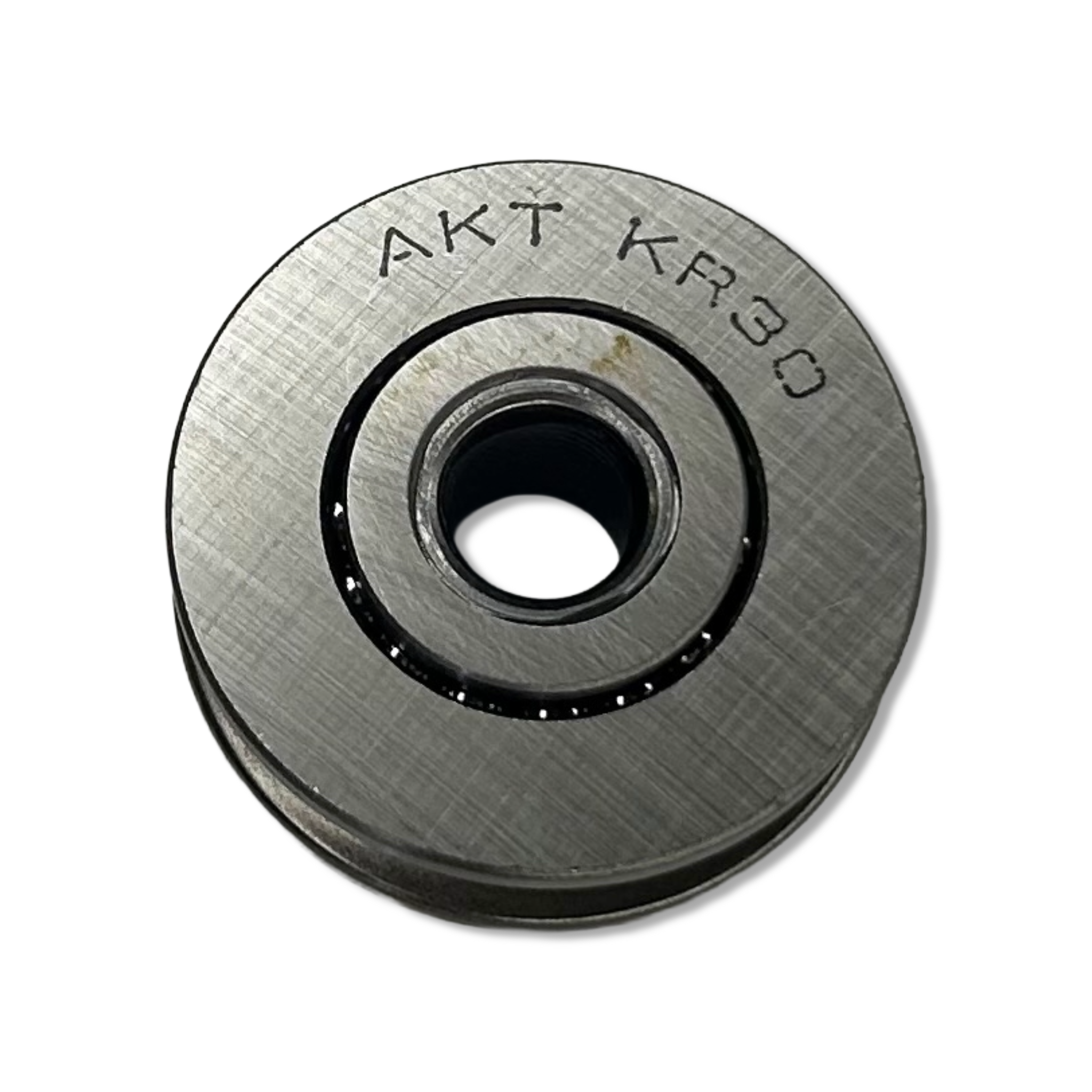

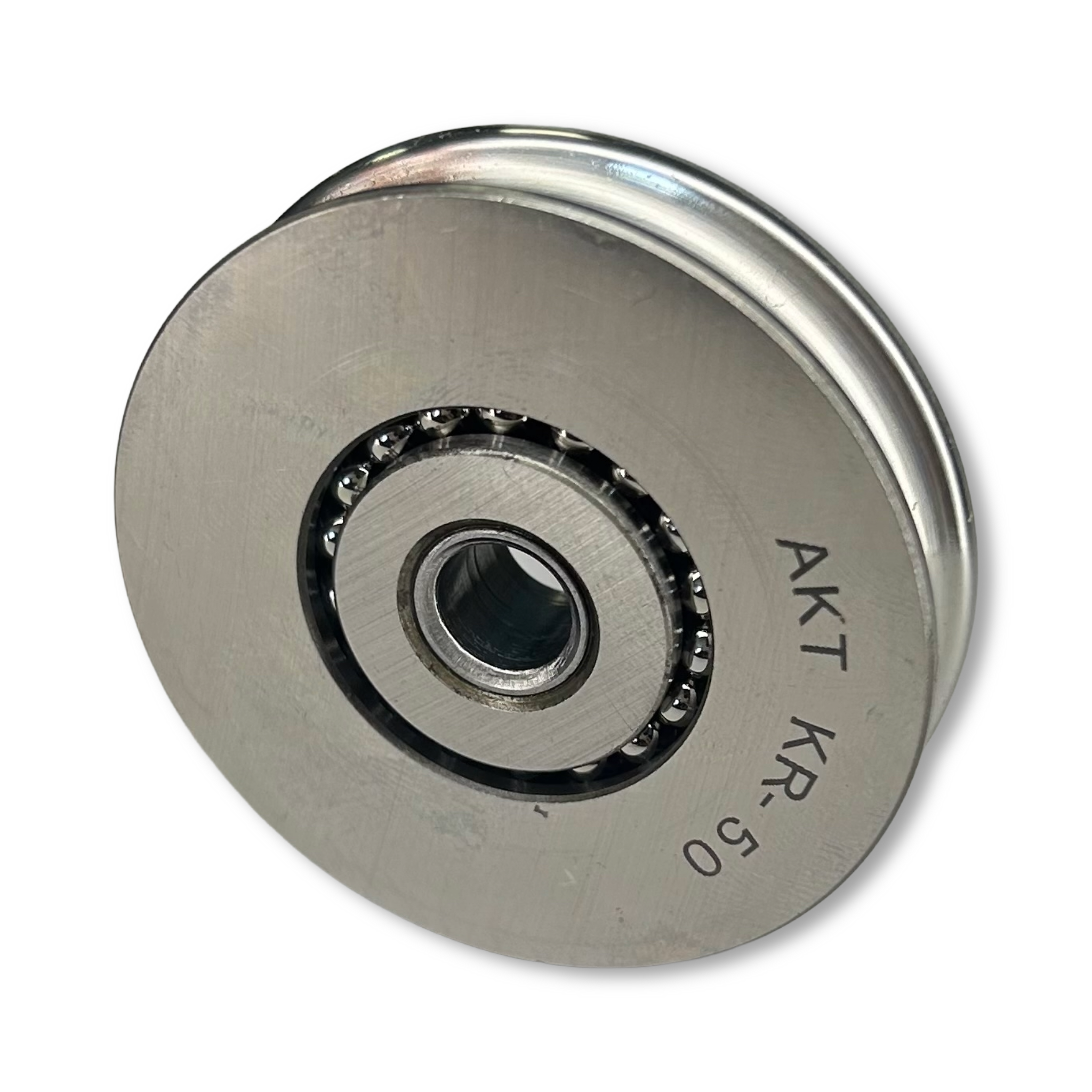

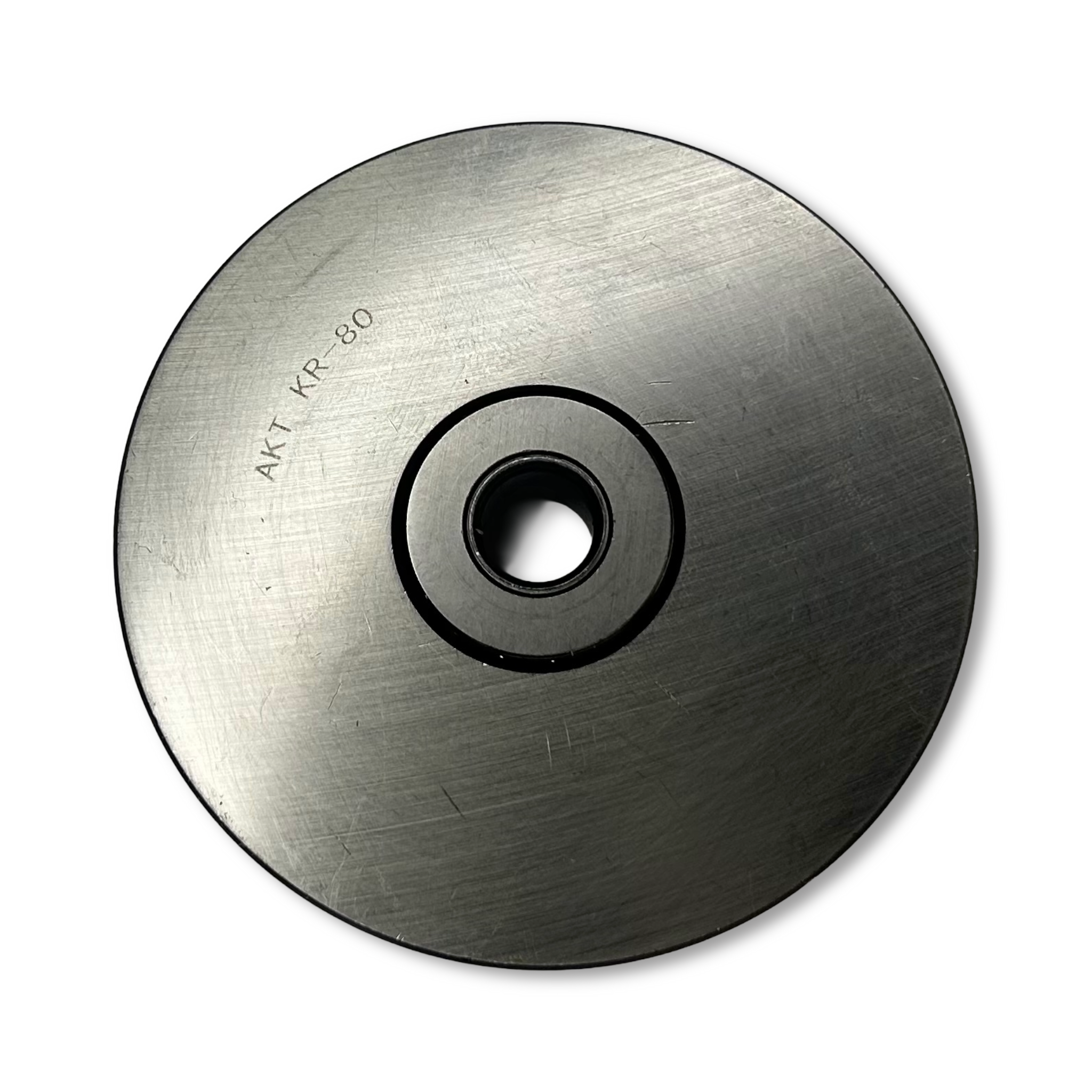

Steel Pulley with Loose Cone Ball Bearings (Model No. 1209)
Pulley with hardened finish, supplied with cone ball bearings.
Range of pulley capacity from 65kg up to 130kg

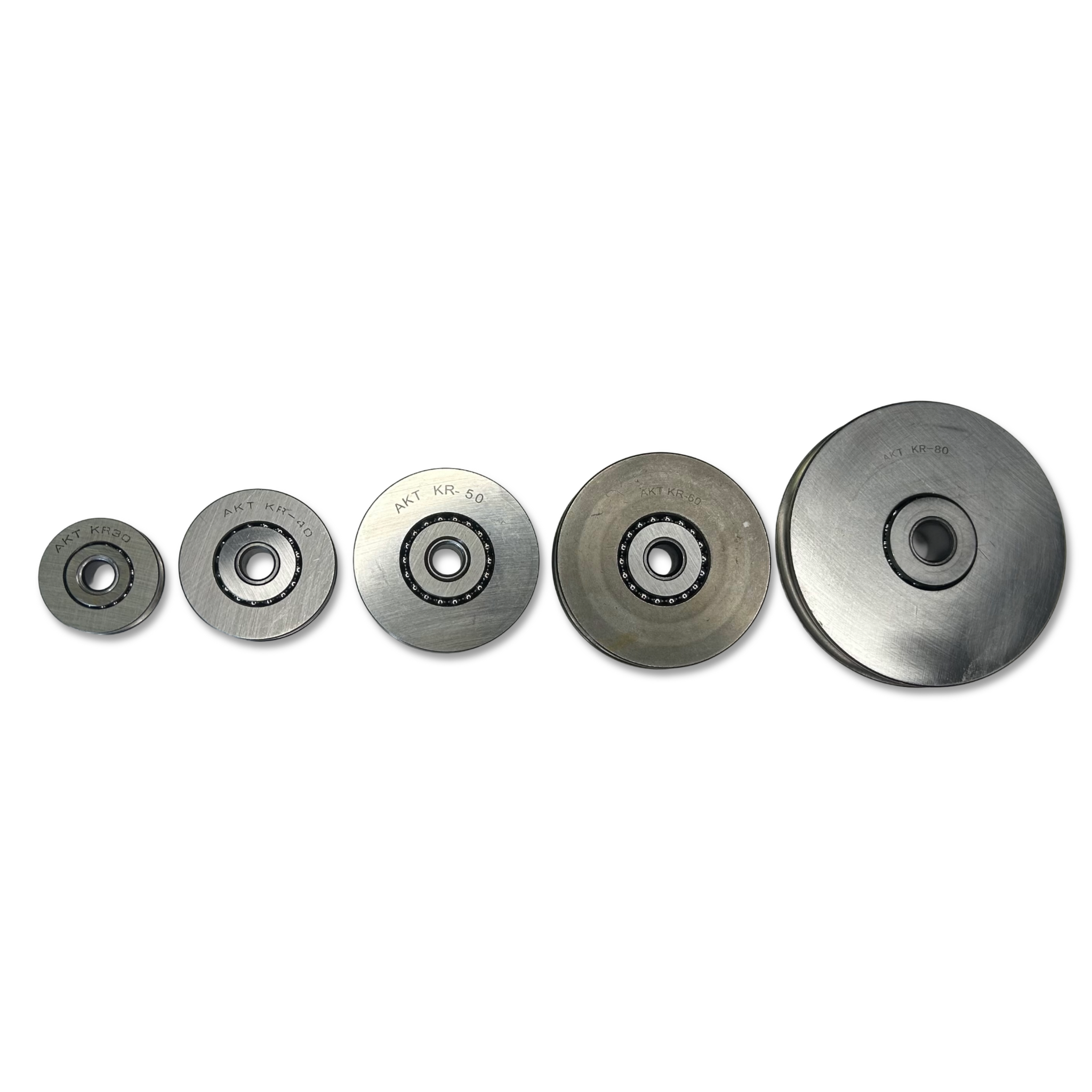

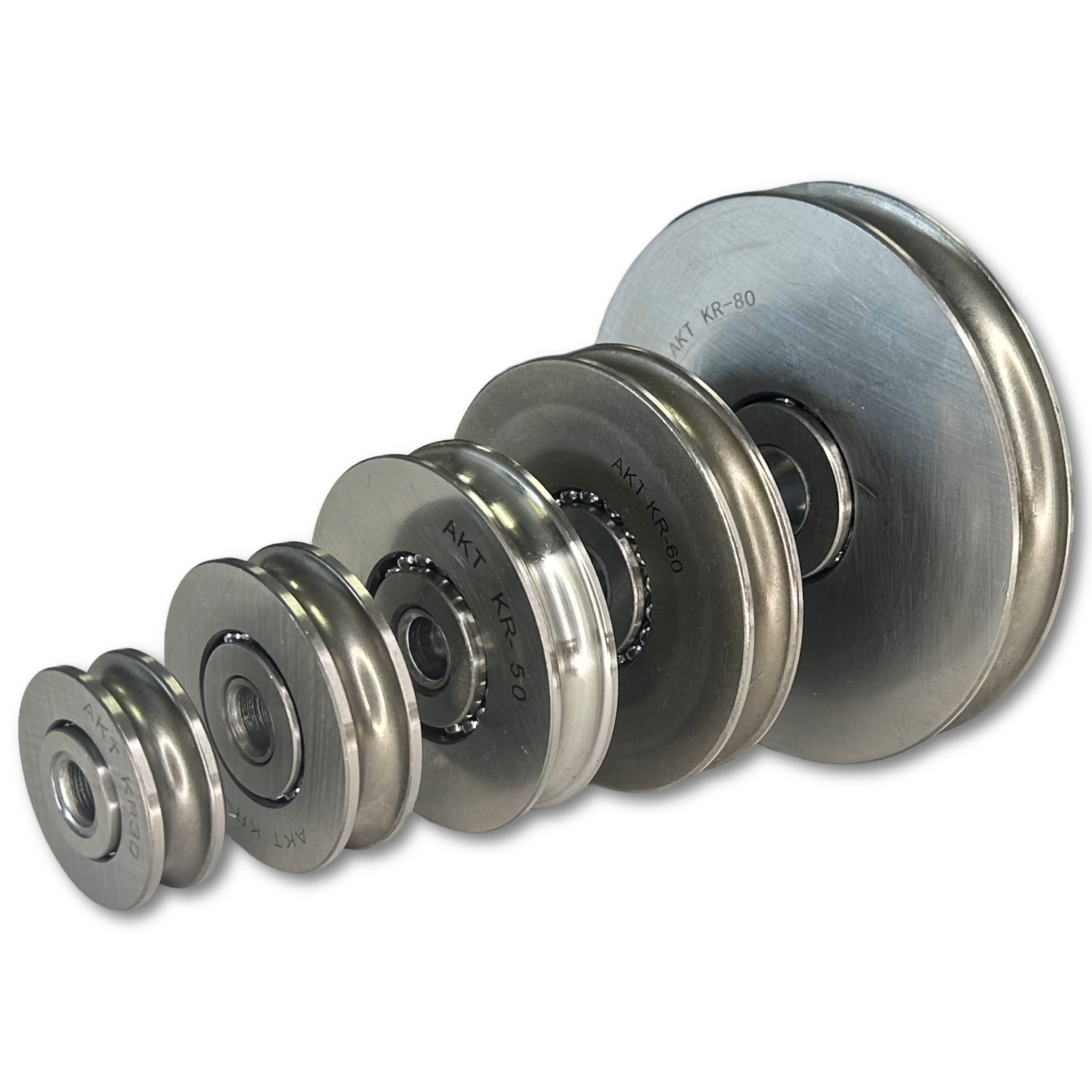

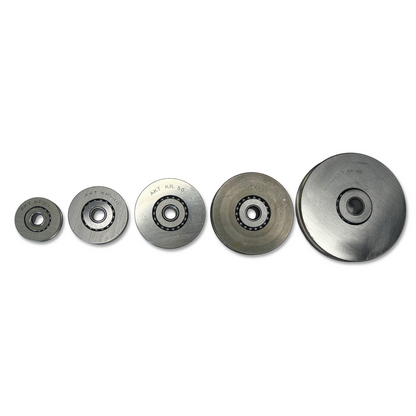

Range of pulley diameter 30mm up to 80mm
Please note, these products have a lead-time of around 3 to 4 weeks from order date if your required quantity is not in stock in our UK warehouse.

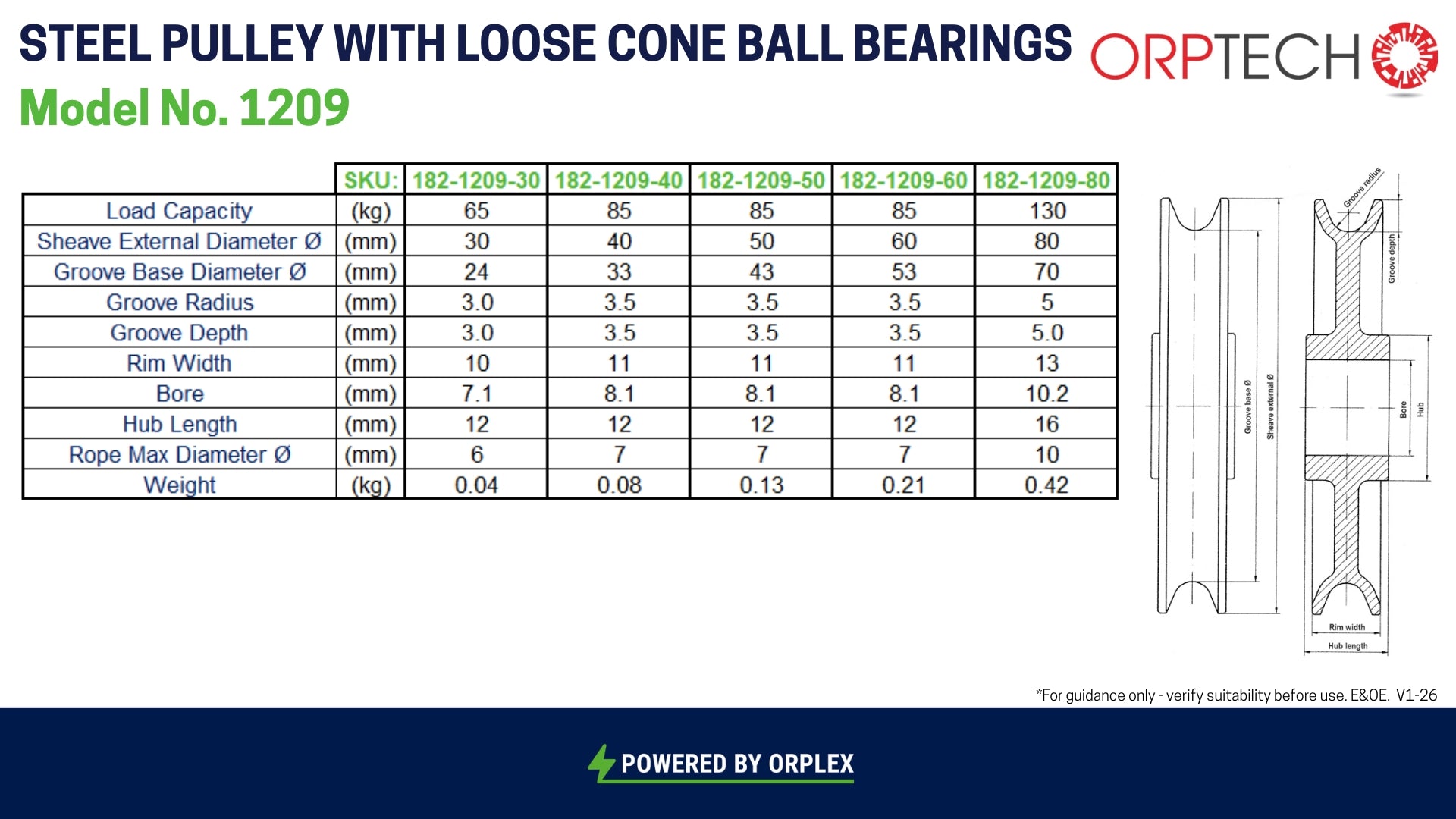

Spec
SKU
|
|
182-1209-30 |
182-1209-40 |
182-1209-50
|
182-1209-60 |
182-1209-80 |
Sheave External Ø
|
mm
|
30
|
40 |
50 |
60 |
80 |
Groove Base Ø
|
mm |
24 |
33 |
43 |
53 |
70 |
Groove Radius
|
mm |
3
|
3.5 |
3.5
|
3.5 |
5
|
Groove Depth
|
mm |
3 |
3.5 |
3.5 |
3.5 |
5
|
Rim Width
|
mm |
10 |
11 |
11
|
11 |
13
|
Bore
|
mm |
7.1 |
8.1
|
8.1
|
8.1 |
10.2 |
Hub Length
|
mm |
12
|
12 |
12 |
12 |
16
|
Rope Ø max.
|
mm |
6 |
7 |
7 |
7 |
10 |
Load Capacity (in kg).
|
kg |
65 |
85 |
85 |
85 |
130 |
Weight (in kg) approx.
|
kg |
0.04 |
0.08 |
0.13 |
0.21 |
0.42 |
