Tecpos

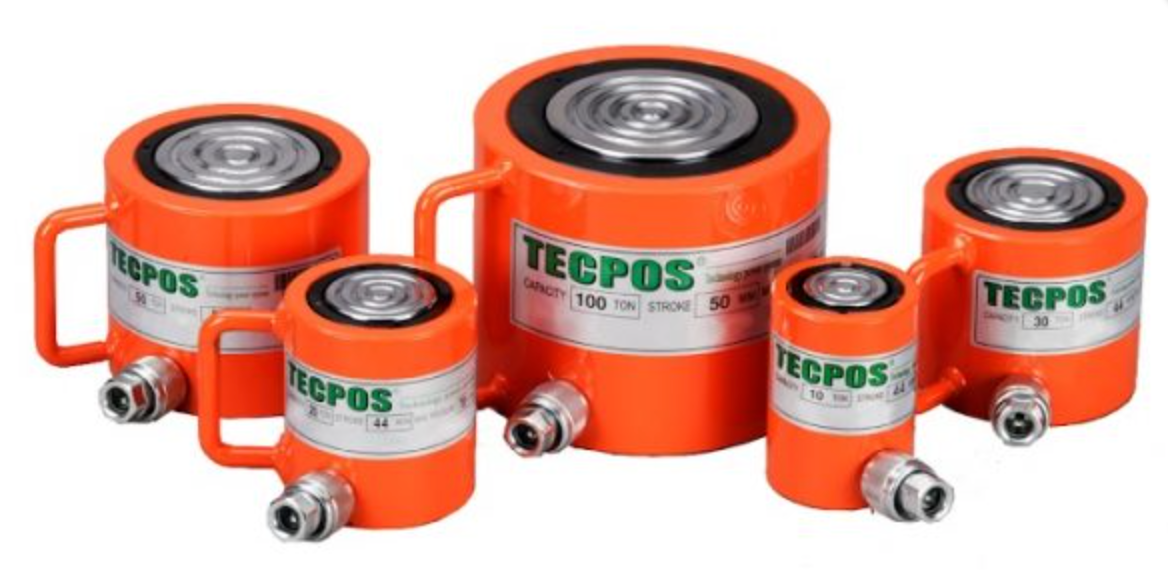

Tecpos Shorty Cylinder

Tecpos Shorty Cylinder

SKU: 286-702-1

Read More
Regular price £358.57
Regular price RRP Sale price TODAY'S PRICE £358.57

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Tecpos Shorty Cylinder - TSSC Series
  • Maximum Pressure: 700 Bar.
  • Hydraulic Coupler: TBC 381F(PT3/8).
  • Orange painted finish.
  • Compact, flat design for use where other cylinders will not fit.
  • Marked with CE, capacity, manufacturers ID, product ID mark and traceability code.
  • Certification available  2.1    DoC

Understanding the Code

  • T – Tecpos
  • SSC – Shorty cylinder
  • 10 – Capacity: 10 tonnes
  • 44 – Stroke: 44mm
      Please refer to specification table for pump to suit cylinder.

        Spec

        SKU Cyl. Cap. Stroke Suits Pump Cyl. Effective Area Oil Cap. Retracted Height Extended Height Cyl. Out Dia. Cyl. Bore Dia. Piston Rod Dia. Base to inlet port Weight Pump
        t mm
        cm2
        cc A mm B mm C mm D mm E mm H mm kgs
        286-702-1 10 44 THP1B or ESP08 15.2 66 99 143 68 44 38 17 2.6 1B or 08
        286-702-2 20 44 THP1B or ESP08 28.3 124 99 143 88 60 51 17 4.3 1B or 08
        286-702-3 30 44 THP1B or ESP08 44.2 194 99 143 105 75 64 17 6.2 1B or 08
        286-702-4 50 50 THP1B or ESP08 63.6 318 109 159 125 90 75 19 10.2 1B or 08
        286-702-5 100 50 THP1C or ESP17 132.7 663 139 189 165 130 100 27 21 1C or 17
        286-702-X 150 50 201 1005 170 220 208 160 135 33 41.1 1C or 17
        286-702-6 200 50 THP1C or ESP17 283.5 1417 180 230 245 190 170 38 60.3 1C or 17
