Tecpos Single Acting Cylinder - TS Series 100t / 150mm / 1991cc

Name: Tecpos Single Acting Cylinder - TS Series 100t / 150mm / 1991cc
Brand: Tecpos
SKU: 286-700-1
Price: 296.98 GBP
Availability: InStock

Tecpos SKU: 286-700-1

1 1

Tecpos Single Acting Cylinder - TS Series Maximum Pressure: 700 Bar. Hydraulic Coupler: TBC 381F(PT3/8). Orange painted finish. Pump: To use 30% more than oil capacity of... Read More

£296.98

Sale TODAY'S PRICE £296.98

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

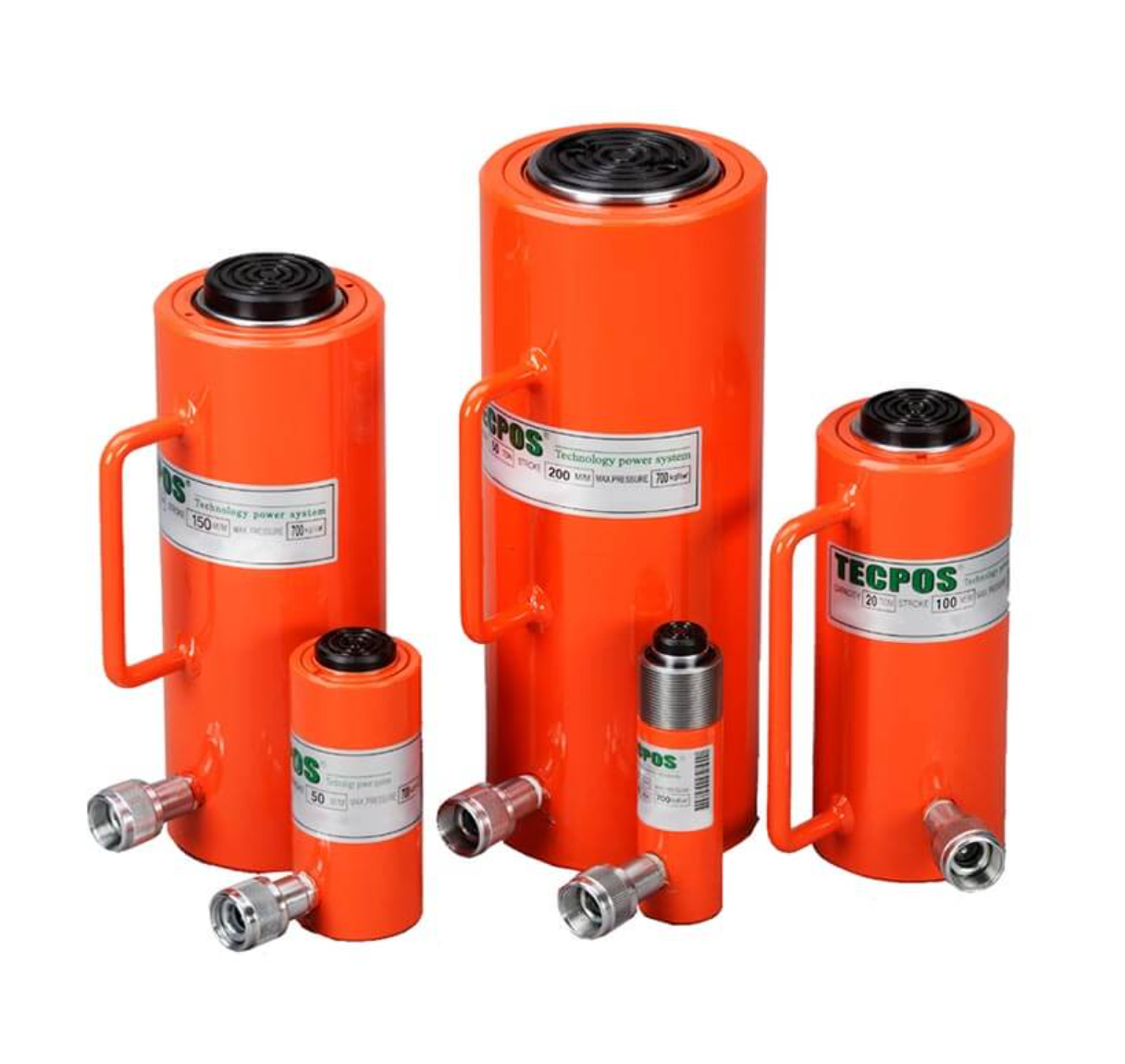

Tecpos Single Acting Cylinder - TS Series

Maximum Pressure: 700 Bar.
Hydraulic Coupler: TBC 381F(PT3/8).
Orange painted finish.
Pump: To use 30% more than oil capacity of Cylinder.
Marked with CE, capacity, manufacturers ID, product ID mark and traceability code.
Certification available DoC

Understanding the Code

T – Tecpos
S – Single Acting
5 – Capacity: 5 tonnes
5 – Stroke: 50mm

Please click here to refer to specification table for pump to suit cylinder. This is the cylinder only, you will need a pump and hose / fittings to enable the cylinder to work.

Specification

SKU	Cyl. Cap.	Stroke	Cyl. Effective Area	Oil Cap.	Retracted Height	Extended Height	Cyl. Out Dia.	Cyl. Bore Dia.
	t	mm	cm(2)	cc	A mm	B mm	C mm	D mm
286-700-1	5	50	6.38	35	134	184	38	28.5
286-700-1A	5	100	6.38	70	184	284	38	28.5
286-700-1B	5	150	6.38	106	234	384	38	28.5
286-700-1C	5	200	6.38	140	284	484	38	28.5
286-700-2	10	50	15.2	76	133	183	58	44
786-700-3	10	100	15.2	152	183	283	58	44
786-700-4	10	150	15.2	228	233	383	58	44
786-700-5	10	200	15.2	304	283	483	58	44
786-700-6	20	50	33.18	166	165	215	88	65
786-700-7	20	100	33.18	332	215	315	88	65
786-700-8	20	150	33.18	498	265	415	88	65
786-700-9	20	200	33.18	664	315	515	88	65
786-700-10	30	50	44.18	220	172	222	102	75
786-700-11	30	100	44.18	440	222	322	102	75
786-700-12	30	150	44.18	660	272	422	102	75
786-700-13	30	200	44.18	880	322	522	102	75
786-700-14	50	50	70.88	355	173	223	127	95
786-700-15	50	100	70.88	710	223	323	127	95
786-700-16	50	150	70.88	1,070	273	423	127	95
786-700-17	50	200	70.88	1,425	323	523	127	95
786-700-18	100	100	132.7	1,330	226	326	165	130
786-700-19	100	150	132.7	1,991	436	436	165	130

SKU	Cyl. Cap.	Stroke	Piston Rod Dia	Base to Inlet port	Piston rod internal thread	Piston rod Thread Length	Weight	Pump
	t	mm	E mm	F mm	G	H mm	kgs
286-700-1	5	50	25	25	3/4-16 UNF	16	1.1	1B or 08
286-700-1A	5	100	25	25	3/4-16 UNF	16	1.4	1B or 08
286-700-1B	5	150	25	25	3/4-16 UNF	16	1.4	1B or 08
286-700-1C	5	200	25	25	3/4-16 UNF	16	2.2	1B or 08
286-700-2	10	50	38	20	1-8 UNC	19	2.1	1B or 08
286-700-3	10	100	38	20	1-8 UNC	19	3.4	1B or 08
286-700-4	10	150	38	20	1-8 UNC	19	4.8	1B or 08
286-700-5	10	200	38	20	1-8 UNC	19	5.6	1B or 08
286-700-6	20	50	57	35	M38x2.0	26	7	1B or 08
286-700-7	20	100	57	35	M38x2.0	26	8.8	1B or 08
286-700-8	20	150	57	35	M38x2.0	26	11	1B or 08
286-700-9	20	200	57	35	M38x2.0	26	12.7	1C or 17
286-700-10	30	50	65	35	M44x2.0	30	9.8	1B or 08
286-700-11	30	100	65	35	M44x2.0	30	12.5	1B or 08
286-700-12	30	150	65	35	M44x2.0	30	16	1C or 17
286-700-13	30	200	65	35	M44x2.0	30	17.5	1C or 17
286-700-14	50	50	85	35	M10x1.5	13	15.8	1C or 17
286-700-15	50	100	85	35	M10x1.5	13	20	1C or 17
286-700-16	50	150	85	35	M10x1.5	13	23.5	1C or 17
286-700-17	50	200	85	35	M10x1.5	13	27.7	1C or 17
286-700-18	100	100	110	40	M10x1.5	15	32.7	25
286-700-19	100	150	110	40	M10x1.5	15	44.5	25
