Wire Rope Grip BS EN Style - Type A

Wire Rope Grip BS EN Style - Type A

SKU: 286-800-1

Read More
Regular price £0.30
Regular price RRP Sale price TODAY'S PRICE £0.30

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

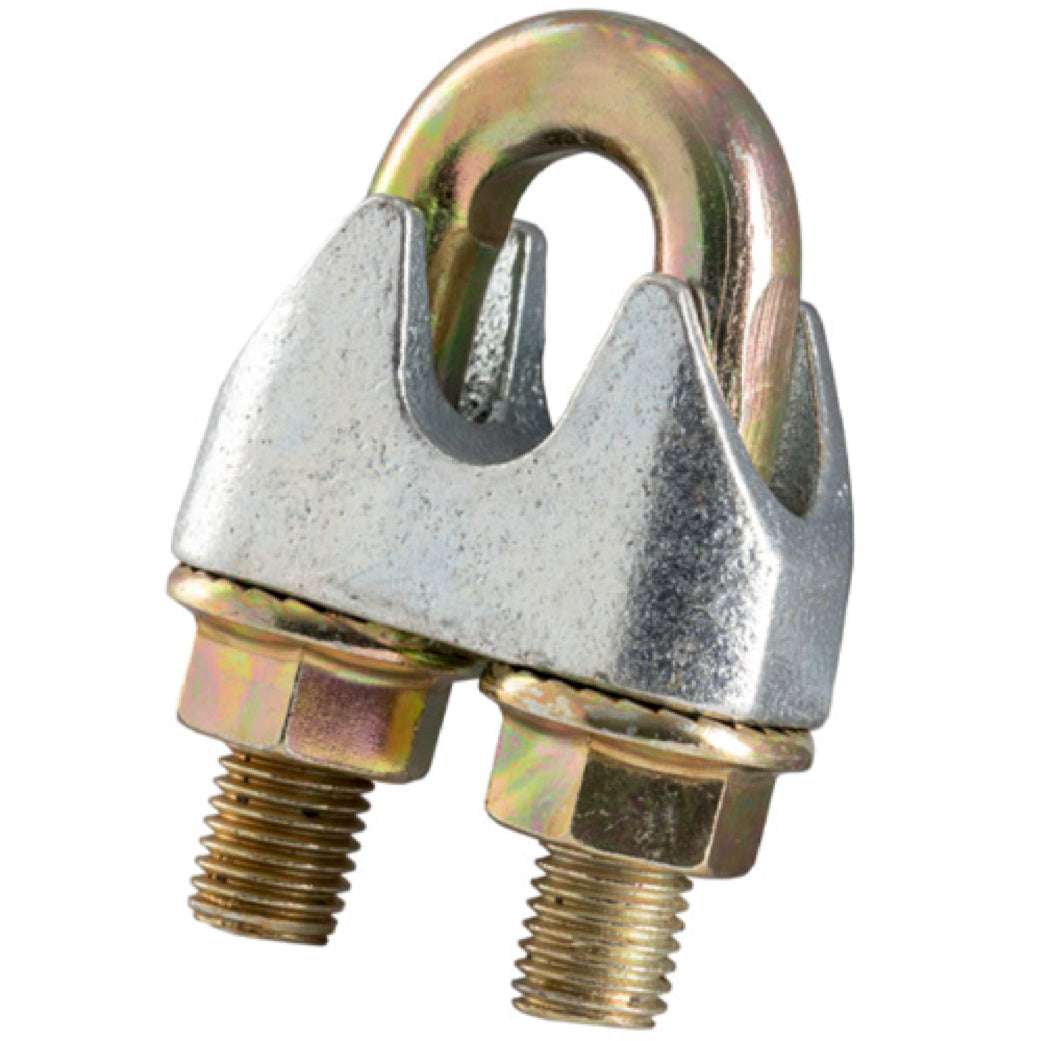

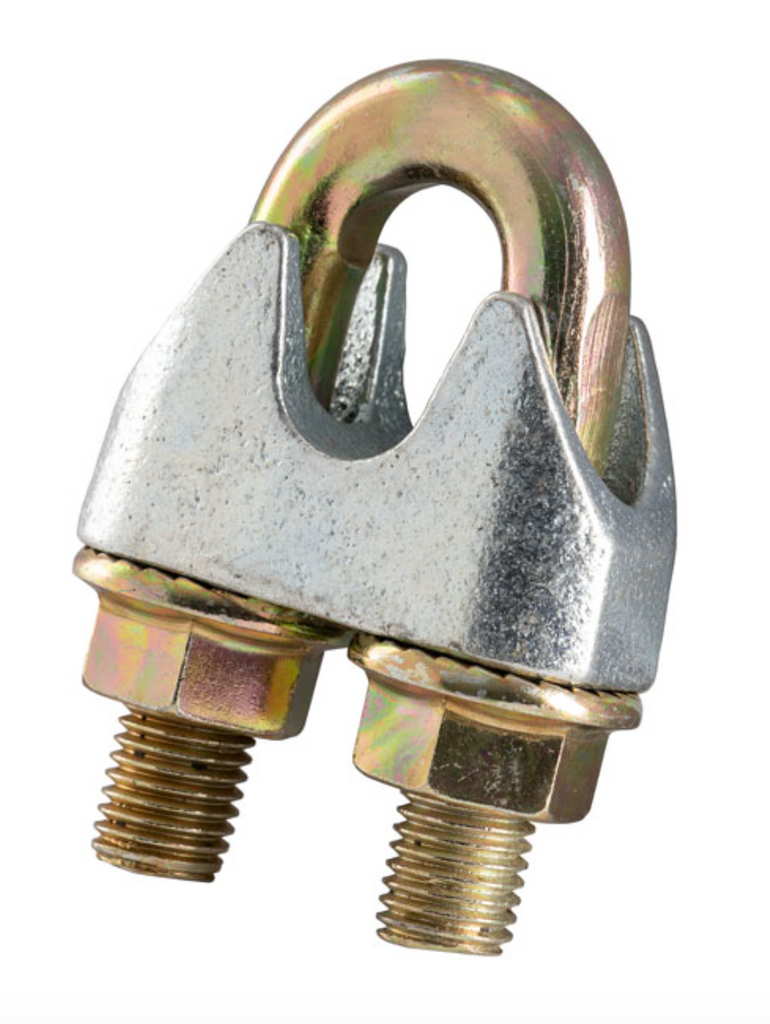

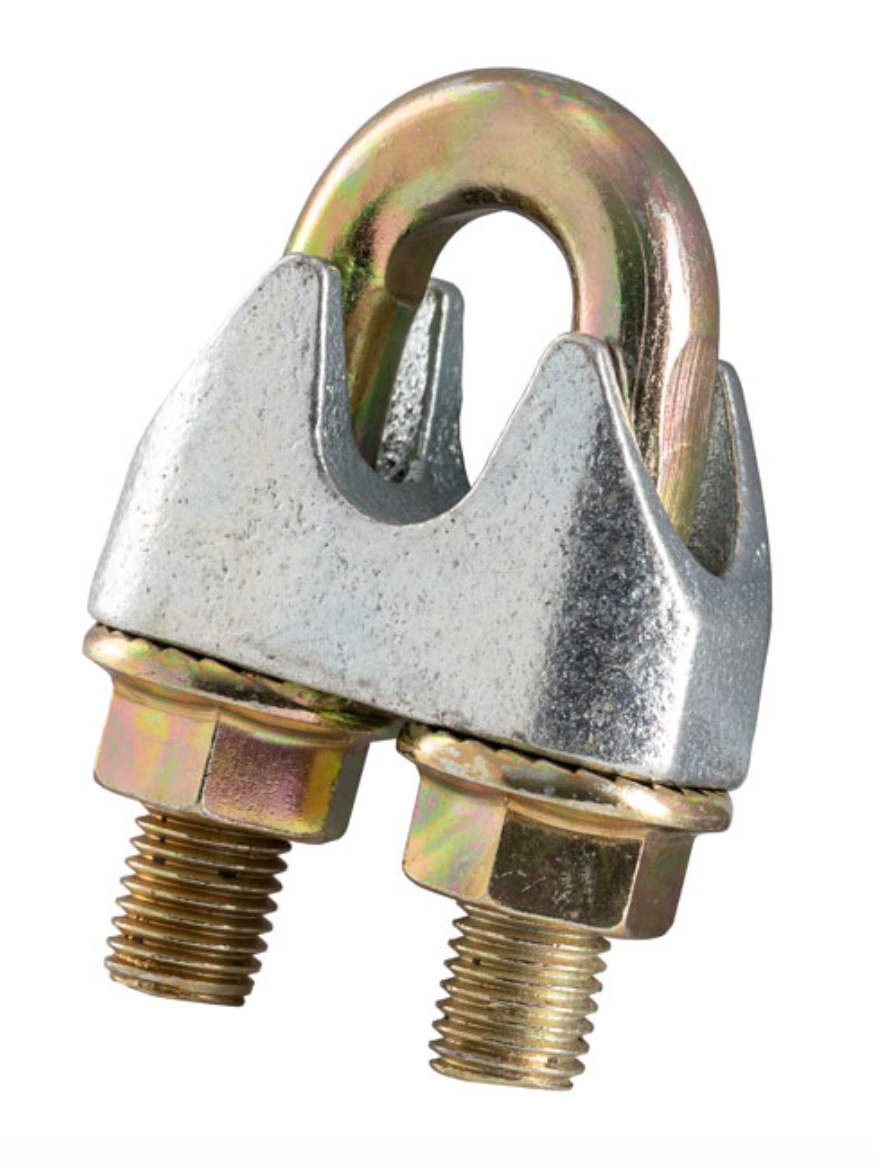

Wire Rope Grip BS EN Style - Type A

  • Malleable steel ungrooved bridge. Mild steel u-bolt and nuts.
  • Electro galvanised finish.
  • Meets the performance requirements of BS EN 13411 Part 5 Type A (Formerly DIN 1142). 13mm is additional and proportional to the standard.*
  • Marked with size on bridge and manufacturers ID on bridge and U bolt.
  • Certification available DoC

Spec

SKU Rope Dia A B C D F H L Weight
mm mm mm mm mm mm mm mm kgs/100
286-800-1 5 5 25 12 13 25 13 13 2.1
286-800-2 6.5 6 32 14 17 30 16 14 4
286-800-3 8 8 41 18 20 39 20 18 8.2
286-800-4 10 8 46 20 24 40 20 21 9.2
286-800-5 12 10 56 24 28 50 24 25 25
286-800-6 13 12 64 27 30 55 28 29 27.5
286-800-7 14 12 66 28 31 59 28 30 35
286-800-8 16 14 76 32 35 64 32 35 43
286-800-9 19 14 83 36 36 68 32 40 49
286-800-10 22 16 96 40 40 74 34 44 68
286-800-11 26 20 111 46 50 84 38 51 117
286-800-12 30 20 127 54 55 95 41 59 140
286-800-13 34 22 141 60 60 105 45 67 213
286-800-14 40 24 159 68 65 117 49 77 268
