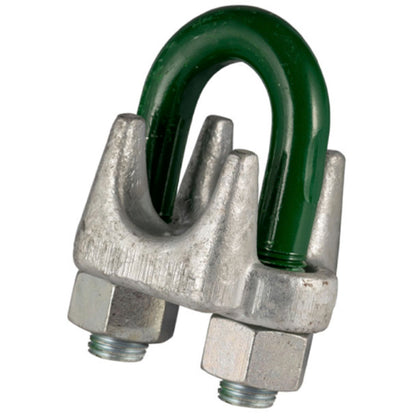

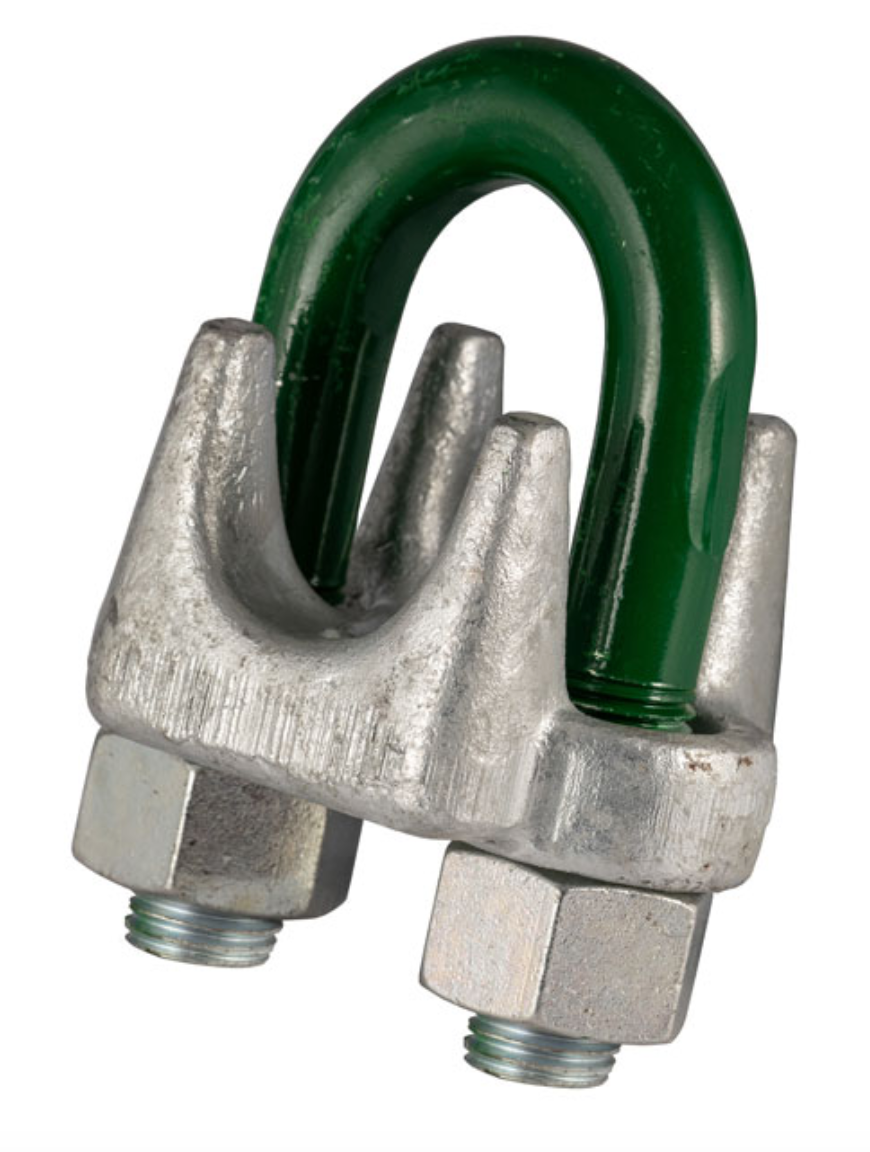

Wire Rope Grip BS EN Style - Type B

Wire Rope Grip BS EN Style - Type B

SKU: 286-801-1

Read More
Regular price £2.40
Regular price RRP Sale price TODAY'S PRICE £2.40

In stock

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

Wire Rope Grip BS EN 13411 Style - Part 5 Type B

  • AISI 1015 steel or equivalent u-bolt, AISI 1035/1045 steel or equivalent grooved bridge.
  • Hot dipped galvanised bridges. Electro galvanised u-bolts and nuts, u-bolts painted.
  • Meets the performance requirements of BS EN 13411 Part 5 Type B (formerly US Fed. Spec. FF-C450D). 13mm is additional and proportional to the standard.*
  • Marked with size and manufacturers ID on the bridge.
  • Certification - Declaration of Conformity

Spec

SKU Rope Dia Size of Grip A B C D E F G Weight
mm inch mm mm mm mm mm mm mm kgs/100
286-801-X 4 1/8 5 24 12 11 24 21 10 2
286-801-1 5 3/16 6 31 15 13 29 24 13 4
286-801-2 7 1/4 8 34 19 13 37 30 18 8
286-801-3 8 5/16 10 45 22 19 43 33 19 14
286-801-4 10 3/8 11 49 26 19 49 42 25 19
286-801-X 11 7/16 12 60 30 25 58 46 26 31
286-801-5 13 1/2 13 61 30 25 58 48 31 34
286-801-X 15 9/16 14 72 33 32 63 52 31 36
286-801-6 16 5/8 14 74 33 32 64 54 36 45
286-801-7 20 3/4 16 86 38 37 72 57 38 68
286-801-8 22 7/8 19 98 45 41 80 62 40 108
286-801-9 26 1 19 108 48 46 88 67 47 113
286-801-10 30 1 1/8 19 117 51 51 91 73 48 140
286-801-11 34 1 1/4 22 130 59 54 105 79 56 207
286-801-12 36 1 3/8 22 140 60 59 108 79 58 234
286-801-13 40 1 1/2 22 147 66 60 112 85 64 266
286-801-XX 42 1 5/8 25 161 70 67 121 92 67 329
286-801-14 46 1 3/4 29 174 78 70 134 97 76 441
286-801-15 52 2 32 195 86 78 150 113 85 603
286-801-16 58 2 1/4 32 213 98 81 162 116 100 707
286-801-17 65 2 1/2 32 227 105 87 168 119 113 806
286-801-XX 72 2 3/4 32 243 112 91 174 127 124 1,000
