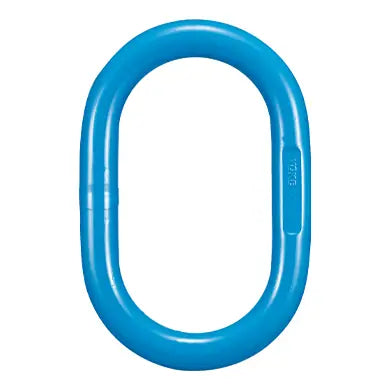

YOKE X-001 Grade 100 Master Link to suit 2-Leg Chain Slings

Name: YOKE X-001 Grade 100 Master Link to suit 2-Leg Chain Slings
Brand: YOKE
SKU: 276-54-21
Price: 9.18 GBP
Availability: InStock

YOKE SKU: 276-54-21

1 1

YOKE X-001 Grade 100 Welded Master Link to suit 2-Leg Chain Slings Quenched and Tempered Alloy Steel At least 25% greater WLL than traditional Grade 80 products Manufactured in... Read More

£9.18

Sale TODAY'S PRICE £9.18

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more yoke grade 100 lifting chain fittings

Description

YOKE X-001 Grade 100 Welded Master Link to suit 2-Leg Chain Slings

Quenched and Tempered Alloy Steel
At least 25% greater WLL than traditional Grade 80 products
Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184
Certified by DGUV GS-OA-15-05
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
Design Factor 5:1
Fatigue rated to 20,000 cycles at 1.5 times the WLL
Tempering temperature at a minimum of 400°C
Welded Master Link designed for 1-2 legs Chain, Wire Rope and Webbing Slings

to suit 1-Leg Chain Sling - SKU 276-54-1 through to 276-54-12
to suit 2-Leg Chain Sling - SKU 276-54-21 through to 276-54-32

Each link is marked with batch number that links to the test certificate with full traceability to raw materials

Specification

SKU	For Grade 100 Chain (mm)	Capacity (t)	Proof Load (kN)	Weight (kg)
276-54-21	6	2.8	69	0.5
276-54-22	7 , 8	4	98	0.8
276-54-23	10	6.7	164	1.2
276-54-24	10	8.9	208	1.7
276-54-25	13	11.5	282	2.5
276-54-26	13	13	319	4
276-54-27	16	17.1	417	5.2
276-54-28	20	24	588	7
276-54-29	22	28.1	688	9
276-54-30	26	38.3	938	12.9
276-54-31	26	45	1103	16.7
276-54-32	26	45	1103	16.7
