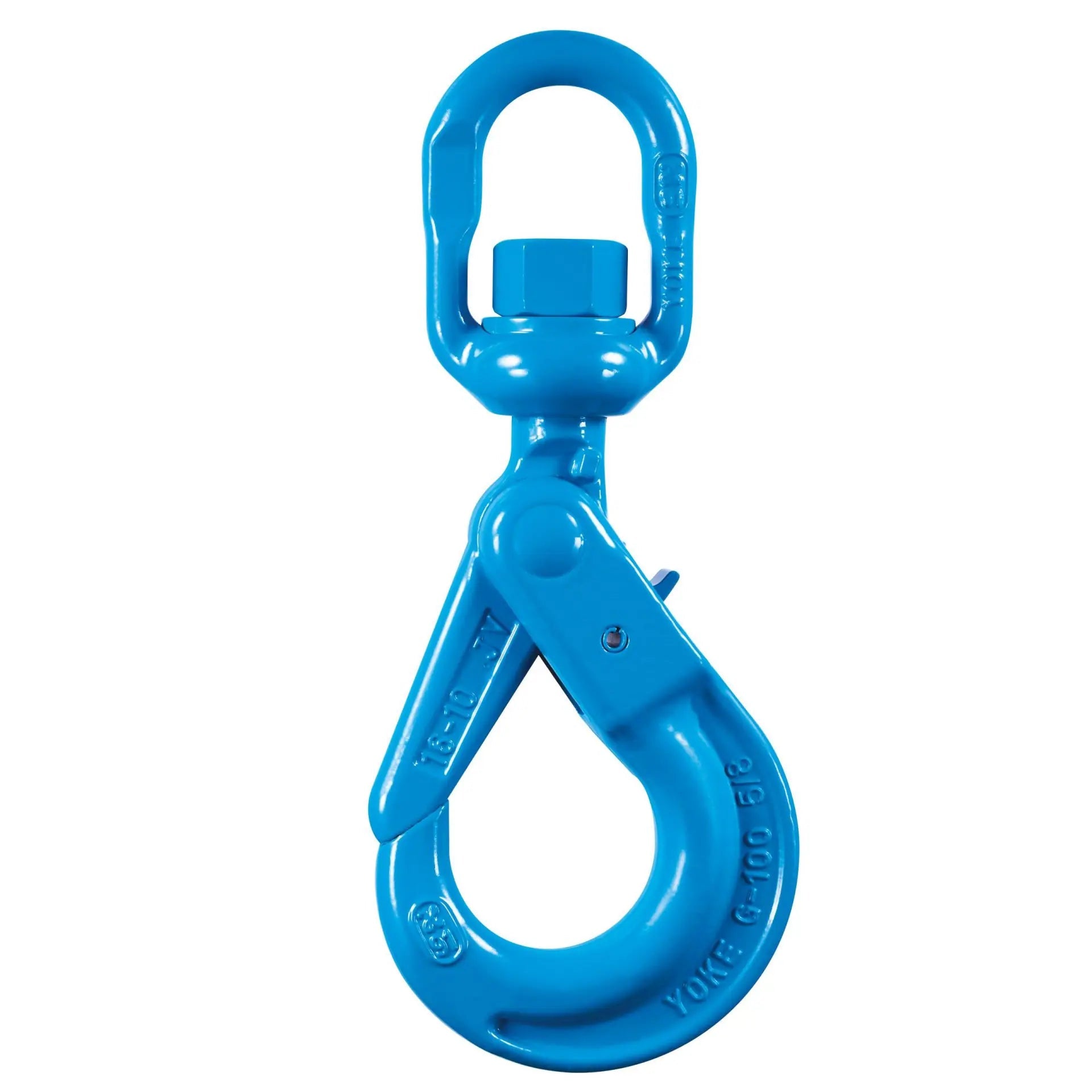

YOKE X-27N Grade 100 Swivel Self Locking Ball Bearing Hook

Name: YOKE X-27N Grade 100 Swivel Self Locking Ball Bearing Hook
Brand: YOKE
SKU: 276-61-2
Price: 112.20 GBP
Availability: OutOfStock

YOKE SKU: 276-61-2

1 1

YOKE X-27N Grade 100 Swivel Self Locking Ball Bearing Hook Quenched and Tempered Alloy Steel At least 25% greater WLL than traditional G80 products Manufactured in accordance with EN... Read More

£133.20

Sale TODAY'S PRICE £133.20

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more tiger yoke chain fittings

Description

YOKE X-27N Grade 100 Swivel Self Locking Ball Bearing Hook

Quenched and Tempered Alloy Steel
At least 25% greater WLL than traditional G80 products
Manufactured in accordance with EN 1677- 3 and ASME B30.26, ASME B30.10, PAS1061
Certified by DGUV GS-OA-15-05
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
Design Factor 4:1
Fatigue rated to 20,000 cycles at 1.5 times the WLL
Tempering temperature minimum 400°C
Magnaflux crack detection is performed 100% on each batch

Specification

SKU	Capacity (t)	For Grade 100 Chain (mm)	Weight (kg)
276-61-1	1.4	6	0.7
276-61-2	2.5	7, 8	1.2
276-61-3	4	10	2
276-61-4	6.7	13	4.1
276-61-5	10	16	7.2
276-61-6	16	20	13
