KITO Weissenfels

KITO - Grade 8 Eye Sling Hook with Safety Catch to BS-EN 1677-2

KITO - Grade 8 Eye Sling Hook with Safety Catch to BS-EN 1677-2

SKU: 286-20-9

Read More
Regular price £9.60
Regular price RRP Sale price TODAY'S PRICE £9.60

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

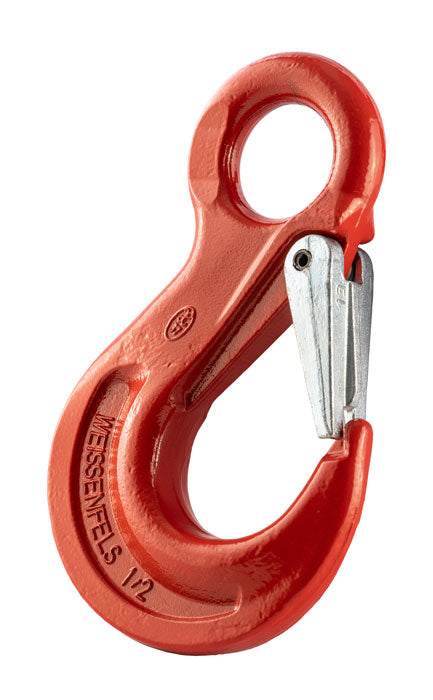

KITO WEISSENFELS Grade 8 Eye Sling Hook with Safety Catch to BS-EN 1677-2
  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Conforms to BS EN 1677-2.
  • Supplied with EC Declaration of Conformity

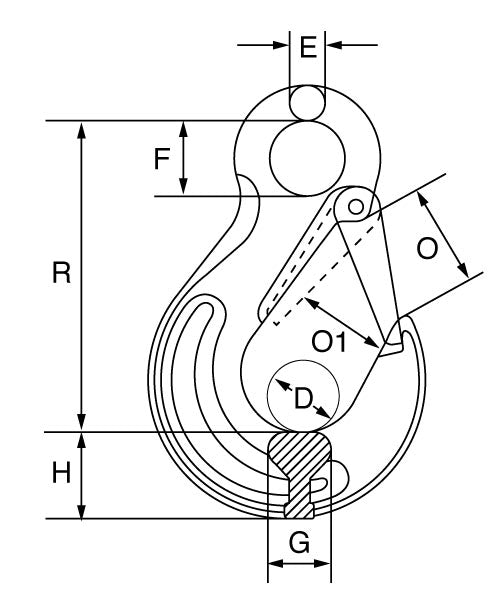

Spec

SKU Chain Dia Part No. D E F G H O O1 R
mm mm mm mm mm mm mm mm mm
286-20-9 6 WA29S 18 10 20 16.5 21 25 19 84.5
286-20-1 7/8 WA30S 24 11 25 19 27 32 25 106
286-20-2 10 WA31S 30 16 34 26 33 40 31 131
286-20-3 13 WA32S 38 19 43 33 42 48 39 164
286-20-4 16 WA33S 44 25 50 40 50 55 45 182.5
286-20-5 20 WA34S 53 27 55 48 54 61 54 205
286-20-6 22 WA35S 60 30 60 50 61 71 61 225
286-20-7 26 WA36S 72 36 70 60 69 84 73 265
286-20-8 32 WA37S 80 39 76 71 89 95 87 259



Technical Data

SKU Product Code W.L.L. M.P.F. M.B.F. Weight
t kN kN kgs
286-20-9 G8ESH6 1.12 28.3 45.2 0.24
286-20-1 G8ESH8 2 50.3 80.4 0.5
286-20-2 G8ESH10 3.15 78.5 126 0.9
286-20-3 G8ESH13 5.3 133 212 1.5
286-20-4 G8ESH16 8 201 322 2.75
286-20-5 G8ESH20 12.5 314 503 4.9
286-20-6 G8ESH22 15 380 608 8.8
286-20-7 G8ESH26 21.2 520 849 13.8
286-20-8 G8ESH32 31.5 772 1,240 27
