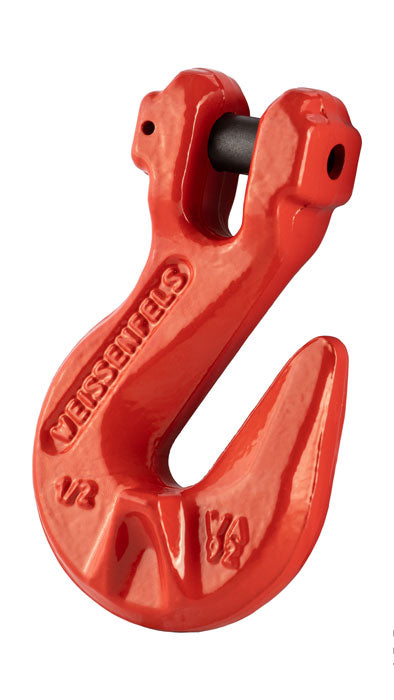

Grade 8 Clevis Grab Hook to BS-EN 1677-1
- Alloy steel, quenched and tempered.
- Red painted finish.
- Conforms to BS EN 1677-1.
- Temperature range: -40 °C to +400 °C (Reductions in W.L.L apply).
- Clevis fitting enables direct connection to chain.
- Our grab hooks can be used as a shortening device without any reduction of SWL of the chain sling capacity.
- The ‘T’ shape in the bowl of the hook supports the chain and helps prevent possible deformation of the link when used as a shortening device.
- For correct safe use, the clevis grab hook must be assembled to the master link via three links of chain.
- Certification - Declaration of Conformity
Spec
SKU
|
Chain Dia |
Part No. |
A |
G |
H |
O |
R |
P x L |
|
mm |
|
mm |
mm |
mm |
mm |
mm |
mm |
286-21-1
|
7/8 |
WA90 |
9 |
30 |
24 |
10 |
50 |
9 x 23 |
286-21-2
|
10 |
WA91 |
13 |
44 |
31 |
13 |
72 |
13 x 31.5 |
286-21-3
|
13 |
WA92 |
17 |
53 |
38 |
17 |
88 |
16 x 42 |
286-21-4
|
16 |
WA93 |
21 |
64 |
44 |
20 |
102 |
21 x 51.5 |
286-21-5
|
20 |
WA94 |
24 |
85 |
53 |
24 |
117 |
24 x 61.5 |
286-21-6
|
22 |
WA95 |
26 |
97 |
62 |
27 |
139 |
26 x 72 |
Technical Data
SKU |
Chain Dia |
W.L.L. |
M.P.F. |
M.B.F. |
Packing Qty |
Weight |
|
mm |
t |
kN |
kN |
|
kgs |
286-21-1 |
7/8 |
2 |
50.3 |
80.4 |
40 |
0.3 |
286-21-2 |
10 |
3.15 |
78.5 |
126 |
16 |
0.75 |
286-21-3 |
13 |
5.3 |
133 |
212 |
10 |
1.4 |
286-21-4 |
16 |
8 |
201 |
322 |
7 |
2.5 |
286-21-5 |
20 |
12.5 |
314 |
503 |
5 |
4.3 |
286-21-6 |
22 |
15 |
380 |
608 |
1 |
6.4 |
