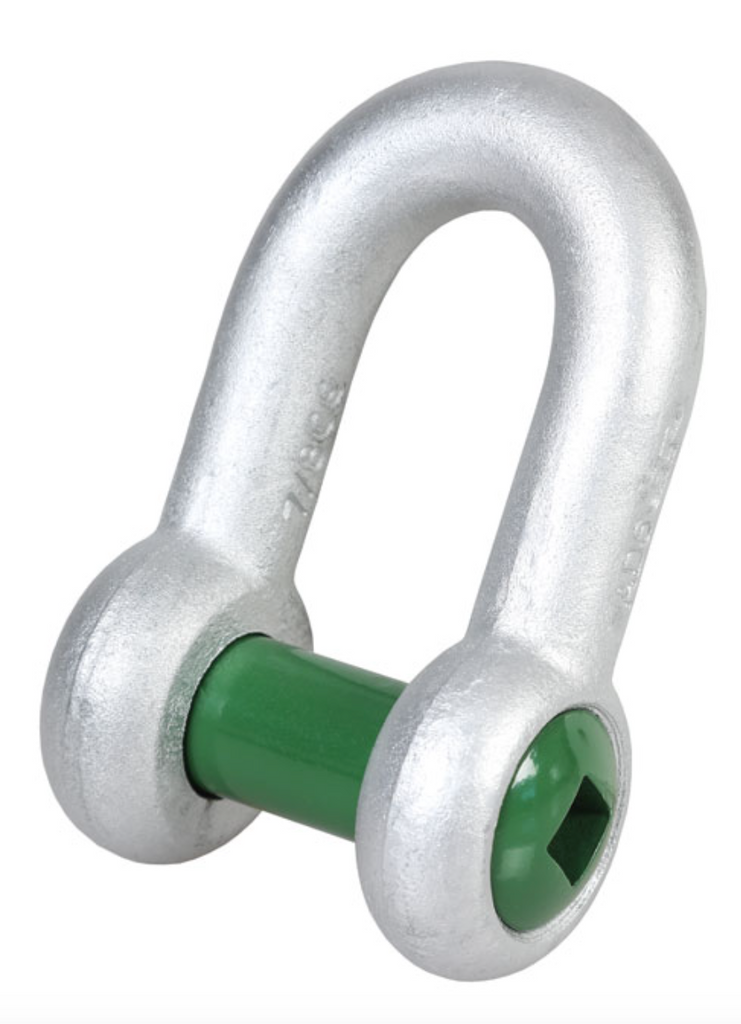

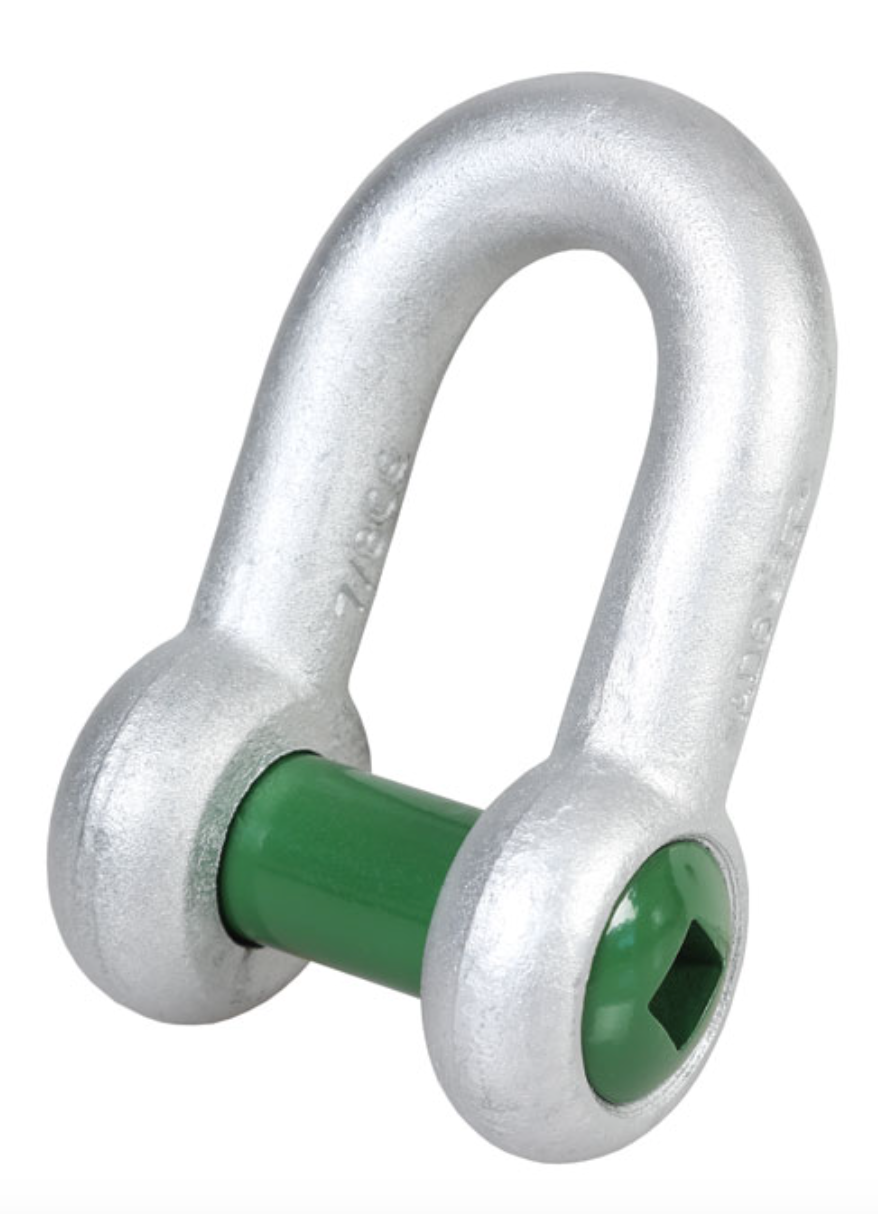

Green Pin Grade 6 Square Sunken Hole Dee Shackle

Green Pin Grade 6 Square Sunken Hole Dee Shackle

SKU: 269-32-1

Read More
Regular price £17.40
Regular price RRP Sale price TODAY'S PRICE £17.40

In stock (6)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Green Pin Grade 6 Square Sunken Hole Dee Shackle

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
  • Minimum breaking load is 6 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Key for unscrewing pin supplied separately (E-4170).
  • Supplied with an EC Declaration of Conformity
  • G-4159

Spec

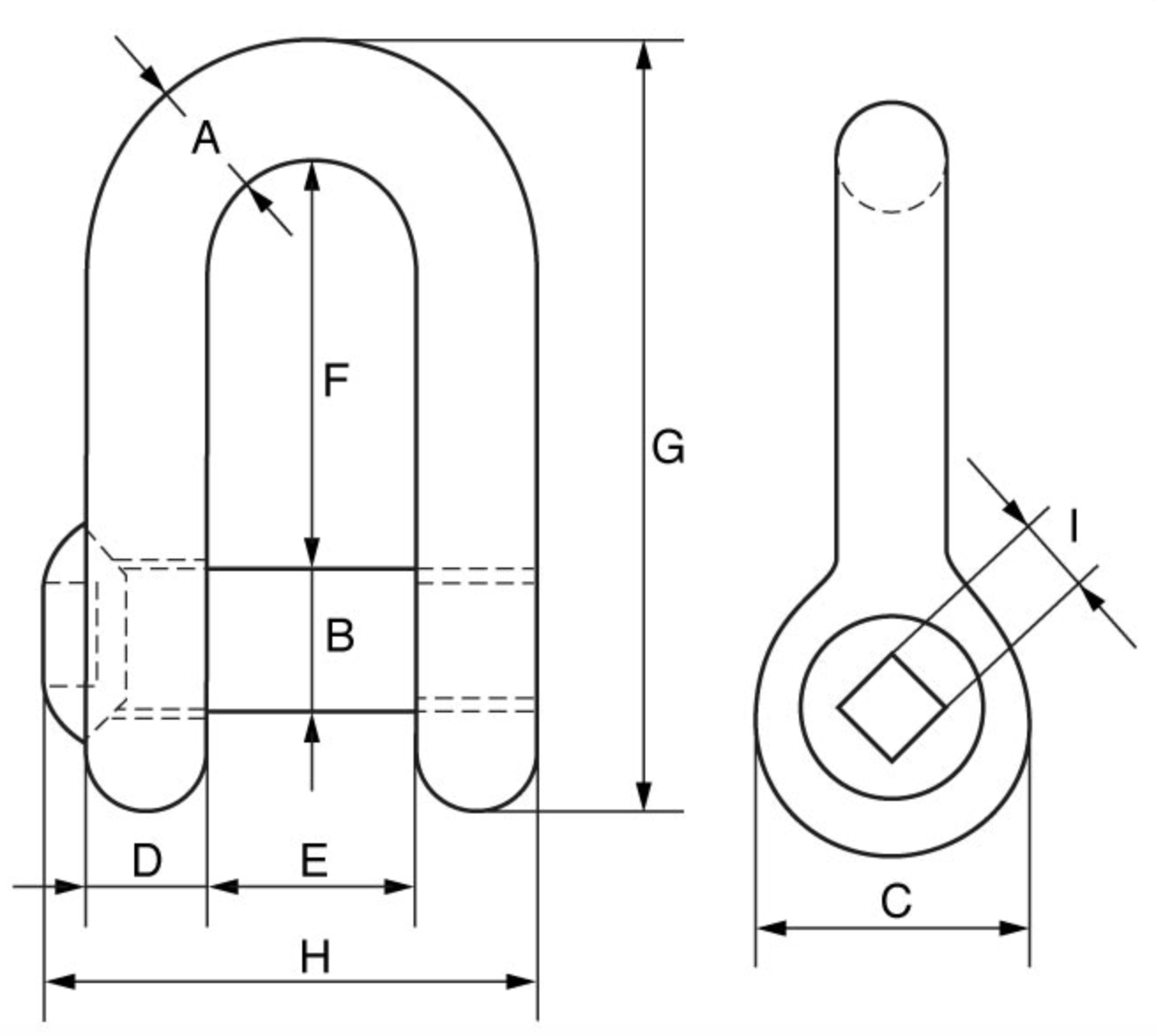

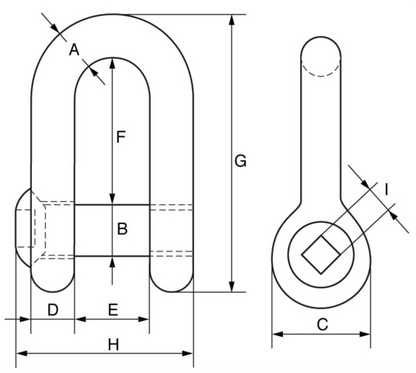

SKU W.L.L A B C D E F G H I Weight
t
mm
mm
mm
mm mm mm mm mm mm
kgs
269-32-1 2 13.5 16 34 13 22 43 81 51 11 0.34
269-32-2 3.25 16 19 40 16 27 51 97 63 11 0.6
269-32-3 4.75 19 22 46 19 31 59 112 74 11 0.98
269-32-4 6.5 22 25 52 22 36 73 134 85 13 1.26
269-32-5 8.5 25 28 59 25 43 85 154 99 13 2.14
269-32-6 9.5 28 32 66 28 47 90 167 110 17 3.05
269-32-7 12 32 35 72 32 51 94 180 122 17 3.56
269-32-X 13.5 35 38 80 35 57 115 209 135 17 5.17
269-32-8 17 38 42 88 38 60 127 230 145 17 6.84
