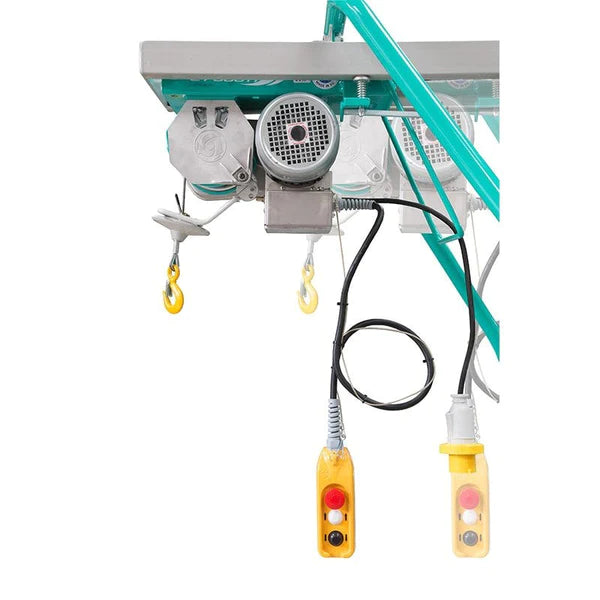

IMER ET300 Scaffold Hoist 300kg - 110v

Name: IMER ET300 Scaffold Hoist 300kg - 110v
Brand: IMER
SKU: 294-2-1
Price: 1411.20 GBP
Availability: InStock

IMER SKU: 294-2-1

1 2

IMER ET300 Scaffold Hoist 300kg - 110v

IMER ET300 Scaffold Hoist 300kg - 110v - 30m High Capacity Please note you will need the gantry frame to operate this hoist. Stand hoist. Single-phase 110V/50Hz electric motor. Average full load lifting speed:... Read More

IMER SKU: 294-2-1

£1,411.20

Sale TODAY'S PRICE £1,411.20

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more imer hoists

Description

IMER ET300 Scaffold Hoist 300kg - 110v - 30m High Capacity

Please note you will need the gantry frame to operate this hoist.

Stand hoist. Single-phase 110V/50Hz electric motor.

Average full load lifting speed: 19 m/min. Max. capacity 300 kg

It ensures maximum reliability and durability. The gearmotor is built with helical-toothed steel gears in oil bath.

Single-phase 230V/50Hz electric motor
IP67 plug
Frame with 4 aluminium wheels
Upper limit safety device
Direct controls with 3-pushbutton 1.5-m pendant control
Positioning brake
Self-braking motor with magnetic device

SCAFFOLD HOIST ONLY

Available as part of a Complete Gantry Hoist Kit (294-2-11)

110v (294-2-1) and 230v (294-2-2) versions available.

Spec

SKU		294-2-1
Max Capacity	kg	300
Av. Full Load Lifting Speed	m/min	19
Max. Working Height	m	30
Steel Rope Dia.	mm	5
Rope Length	m	31
Electric Power Supply	V /Hz	230 / 50 Sph 110 / 50 Sph
Motor Power Rate	kW	1.1
Motor Speed	rpm	1320
Running Current 230v (110v)	A	12 (18)
Weight	kg	50
Dimensions w/l/h	mm	330/780/380
Packing Dimensions w/l/h	mm	350/820/440
