IMER ET 200 NEO Scaffold Hoist 200kg - 110v - 30m High Capacity Scaffold Hoist ONLY - No 3 Point Fixing Pole Supplied*
Features at a glance:
Maximum Capacity |
200kg |
Maximum Working Height |
30m |
Rope Length |
31m |
Motor |
110v |
3 Point Attachment Pole Supplied *
|
No* (see SKU 294-1-7) |
IMER Scaffold Hoists are the perfect, high-end equipment for any scaffolding job! IMER Scaffold Hoists are often used by large and small contractors alike.

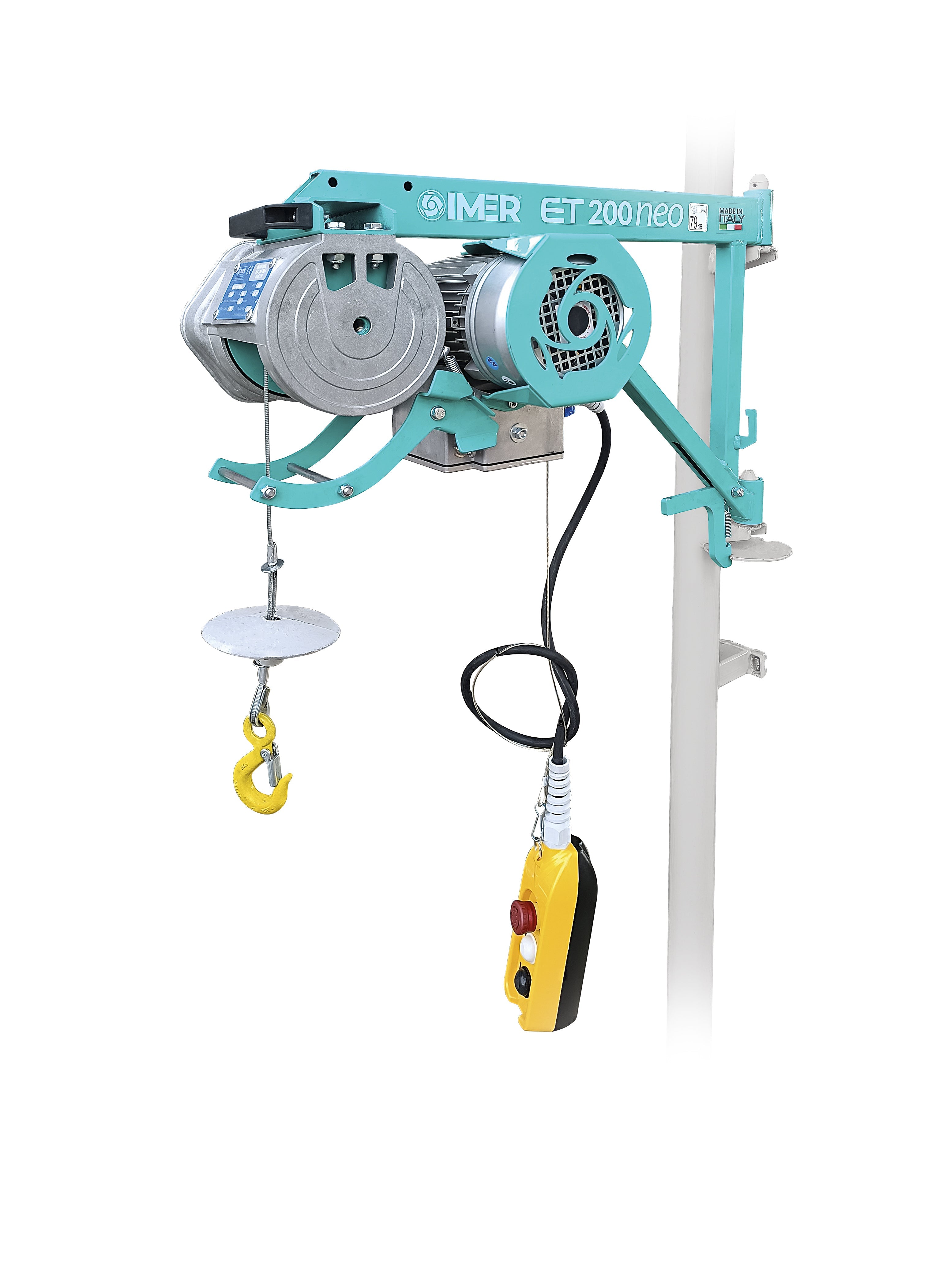

The IMER ET200 NEO is a pivoting 200kg electric hoist with a lifting height of 30m and is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely.
It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift safely. The hook has a spring loaded safety catch to keep the load carrier within the hook for added security when lifting.
The ET 200 NEO IMER Scaffold Hoist - 200Kgs is supplied with a top mounting bracket, lifting height of 30m, and fast lifting speed of 19m/min. The hoist is a 110-volt power supply and is supplied with a waterproof 1.5m pendant and plug. These quality-made hoists are fitted with upper-limit safety devices to protect from over lifting of goods.
110v power (SKU 294-1-4) or 230v power (SKU 294-1-3) versions available.
*This SKU 294-1-4 is for an ET 200 NEO Scaffold Hoist ONLY - NOT the complete kit which includes a 3 Pont Fixing Bracket. Please order our SKU 294-1-7 for complete kits to include the 3 point fixing bracket.
Specification
SKU |
|
294-1-4 |
Max Capacity |
kg |
200 |
Av. Full Load Lifting Speed |
m/min |
19 |
Max. Working Height |
m |
30 |
Steel Rope Dia. |
mm |
4 |
Rope Length |
m |
31 |
Electric Power Supply |
V /Hz |
110 / 50 Sph
|
Motor Power Rate |
kW |
0.75 |
Motor Speed |
rpm |
1380 |
Running Current 230v (110v) |
A |
7.2 (14) |
Machine Weight |
kg |
42 |
SPL in operator's position |
da(A) |
<70 |
Dimensions w/l/h |
mm |
330/770/520 |
Packing Dimensions w/l/h |
mm |
390/810/590 |
3 Pont Attachment Scaffold Pole*
|
|
No |
