IMER TR 225 NEO Scaffold Hoist 200kg- 110v 110v

Name: IMER TR 225 NEO Scaffold Hoist 200kg- 110v 110v
Brand: IMER
SKU: 294-1-11
Price: 1510.80 GBP
Availability: InStock

IMER SKU: 294-1-11

1 1

IMER TR 225 NEO Scaffold Hoist 200kg- 110v 110v

IMER TR 225 NEO Scaffold Hoist with Extendable Bracket 200kg - 110v - 30m High Capacity Scaffold Hoist ONLY. The TR225N heavy duty IMER Scaffold Hoist is designed for... Read More

IMER SKU: 294-1-11

£1,510.80

Sale TODAY'S PRICE £1,510.80

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more imer hoists

Description

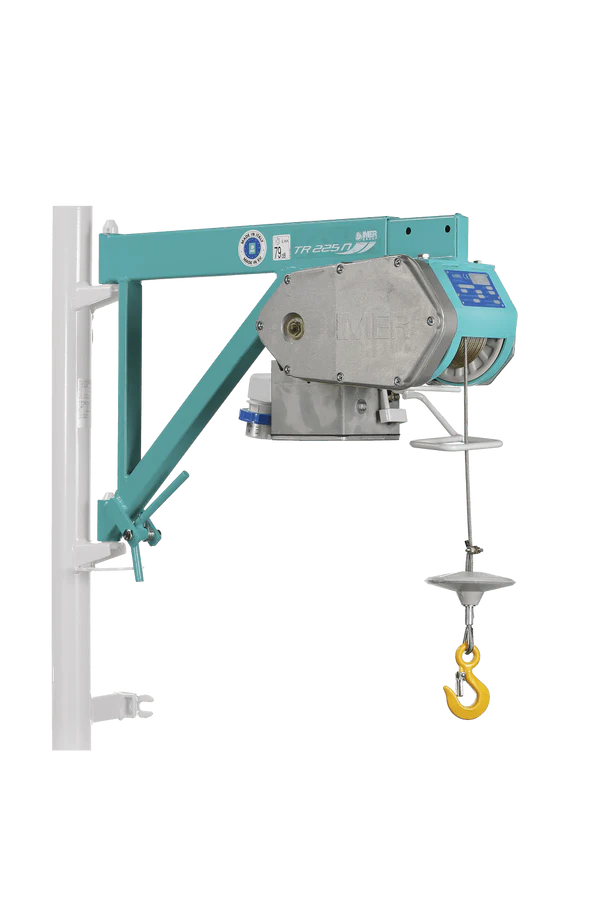

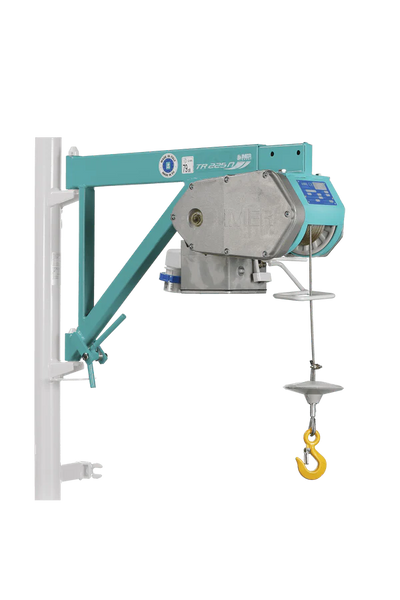

IMER TR 225 NEO Scaffold Hoist with Extendable Bracket 200kg - 110v - 30m High Capacity Scaffold Hoist ONLY.

The TR225N heavy duty IMER Scaffold Hoist is designed for use in industrial or construction applications and is the perfect choice by many of the leading rental companies.

Fitted with front loading drum – this reduces the risk of bunching when used on scaffolding that is not perfectly straight.

This Scaffold Hoist has a lifting capacity of 200kg and a lifting height of 30m.

Scaffold Hoist ONLY.

Available to buy as part of a Complete Hoist Kits (with Pendant 294-1-13 and Scaffold Attachment 294-1-5) under our SKU 294-1-15- see link below.

- 110v (294-1-15)

- 230v (294-1-16)

Spec

SKU (Scaffold Host Only)		294-1-11
Max Capacity	kg	200
Av. Full Load Lifting Speed	m/min	19
Max. Working Height	m	30
Steel Rope Dia.	mm	5
Rope Length	m	31
Electric Power Supply	V /Hz	110 / 50 Sph
Motor Power Rate	kW	0.75
Motor Speed	rpm	1380
Running Current 230v (110v)	A	7.2 (14)
Weight	kg	46
Dimensions w/l/h	mm	330/770/520
Packing Dimensions w/l/h	mm	350/820/500
