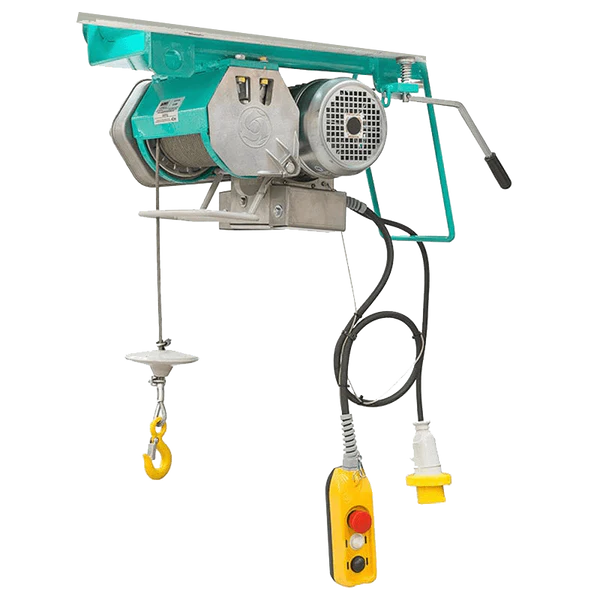

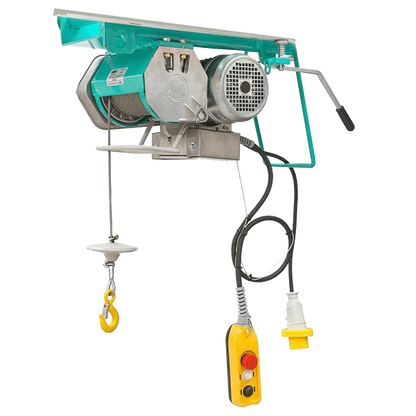

IMER G500 Scaffold Hoist 500kg - 110v - 42m High Capacity
Stand hoist. Single-phase 110V/50Hz electric motor. Average full load lifting speed: 17 m/min. Max. capacity 500kg
Thanks to their sturdy structure and powerful motor, G500 and G1000 are particularly suitable for heavy duty use on site.
- Single-phase 110V/50Hz electric motor
- IP67 plug
- Frame with 4 steel wheels
- Upper limit safety device
- Direct control with 3-push button IP65 1.5-m pendant control
- Positioning brake
- Self-braking motor with magnetic device
SCAFFOLD HOIST ONLY.
Available to buy as part of a Complete Gantry Hoist Kit (294-2-21)
110v (294-2-13) and 230v (294-2-14) versions available.

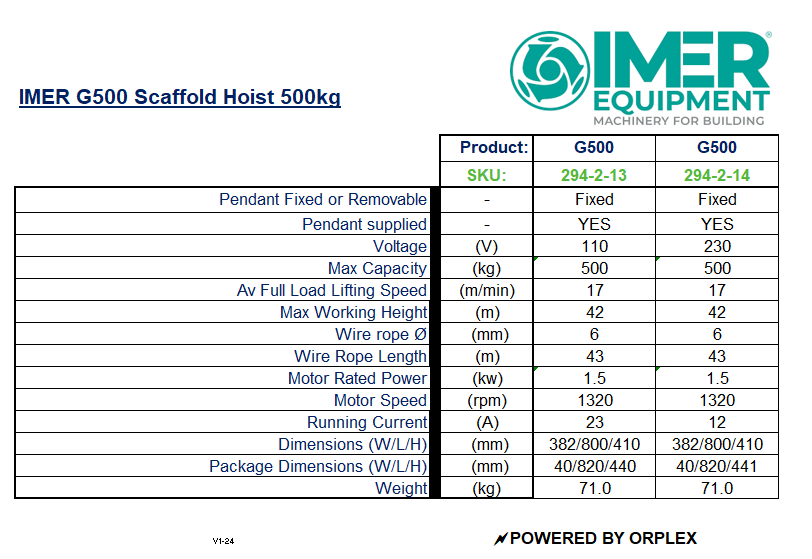

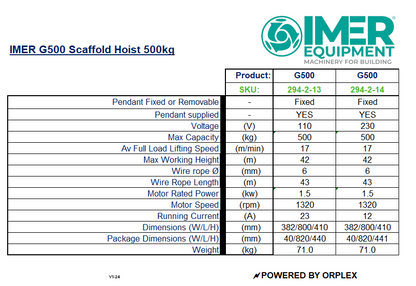

Spec
SKU |
|
294-2-13 |
Max Capacity |
kg |
500 |
Av. Full Load Lifting Speed |
m/min |
17 |
Max. Working Height |
m |
42 |
Steel Rope Dia. |
mm |
6 |
Rope Length |
m |
43 |
Electric Power Supply |
V /Hz |
230 / 50 Sph 230 / 60 SPh 110 / 50 Sph |
Motor Power Rate |
kW |
1.5 |
Motor Speed |
rpm |
1320 |
Running Current 230v (110v) |
A |
12 (23) |
Weight |
kg |
71 |
Dimensions w/l/h |
mm |
382/800/410 |
Packing Dimensions w/l/h |
mm |
400/820/440 |
