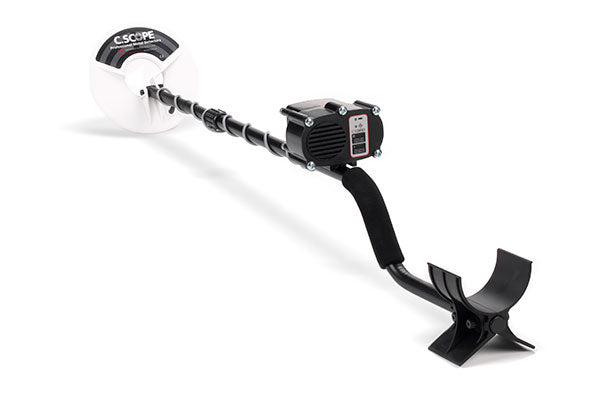

The CS880 Metal Cover Locator detects lost or hidden metal objects such as manhole covers and stopcock covers.

The CS880 Metal Cover Locator is a metal detector that will locate lost or hidden metal objects. It is most commonly used for locating manhole covers through tarmac and grass. It can be used successfully to find stopcock covers, steel reinforcement rods in concrete road surfaces (rebar), fuel tanks, valve heads and metal pipes or any metallic objects that are buried under tarmac or earth.

The CS880 is incredibly simple to operate providing a reliable, neat and quick solution to the problem of pinpointing the position of metal covers buried under earth or tarmac.

OVERVIEW

• Simple to use.
• Audio and visual target identification.
• Induction balance.
• Target Hold.
• Auto power Off .
• Simple On/Off Control Buttons.
• Sealed separate battery compartment.
• Waterproof highly robust search coil.
• Waterproof construction.
• Twist lock stem length adjustment.
• LED Display.
• Comfortable hand grip with arm rest.
• Fascia mounted loudspeaker with socket for optional headphones.
• Two part stem for easy stowage.
• Protective carry bag available.

SPEC

Product Name
CS880 Metal Cover Locator

Controls
Simple on / off push buttons

Construction
Waterproof highly robust search coil
Waterproof construction

Design
Twistlock stem length adjustment
Comfortable hand grip with arm rest
Fascia mounted loudspeaker with socket for optional headphones
Protective carry bag available.

Dimensions
Search Head diameter 20cm
Overall Length 107cm – 140cm
Length from Hand Grip to Search Face: 80cm – 114cm

Detection Range
Stopcock: 25cm
Valve Cover: 50cm
Cable Pit Cover: 90cm
Manhole Cover: 90cm

Batteries
Sealed separate battery compartment
8 x AA (LR6) Alkaline clip in battery pack
Compatible with NiMH rechargeable batteries.

Battery Life
Greater than 100hours (typical usage)

Search Head IP Rating
67

DOWNLOADS

CS880 Metal Cover Locator Manual

CS880 Metal Cover Locator Brochure
