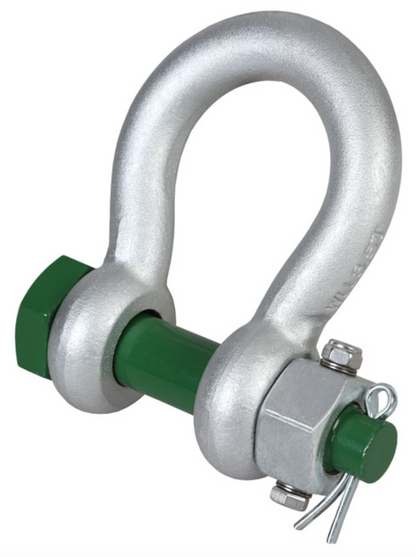

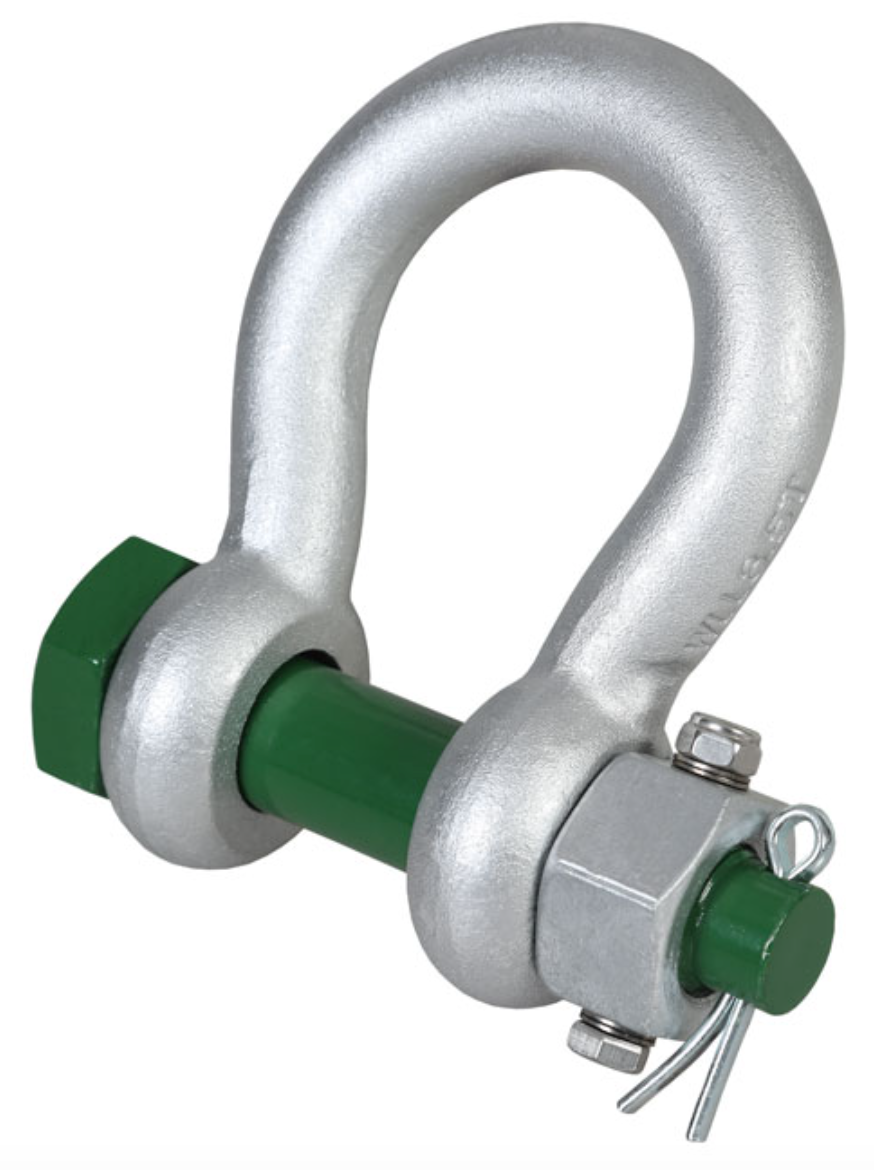

Green Pin Grade 6 Standard Bow Shackle with Fixed Nut Safety Pin

Green Pin Grade 6 Standard Bow Shackle with Fixed Nut Safety Pin

SKU: 269-34-1

Read More
Regular price £64.52
Regular price RRP Sale price TODAY'S PRICE £64.52

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Green Pin Grade 6 Standard Bow Shackle with Fixed Nut Safety Pin

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised.
  • Conforms to BS EN 13889, ASME B30.26 and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
  • Minimum breaking load is 6 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Extra AISI 316 securing bolt drilled through the nut and shackle pin.
  • Complete with Nord-Lock® wedge-locking washers that lock when subjected to extreme vibration or dynamic loads.
  • Certification - Declaration of Conformity
  • G-4143

Spec

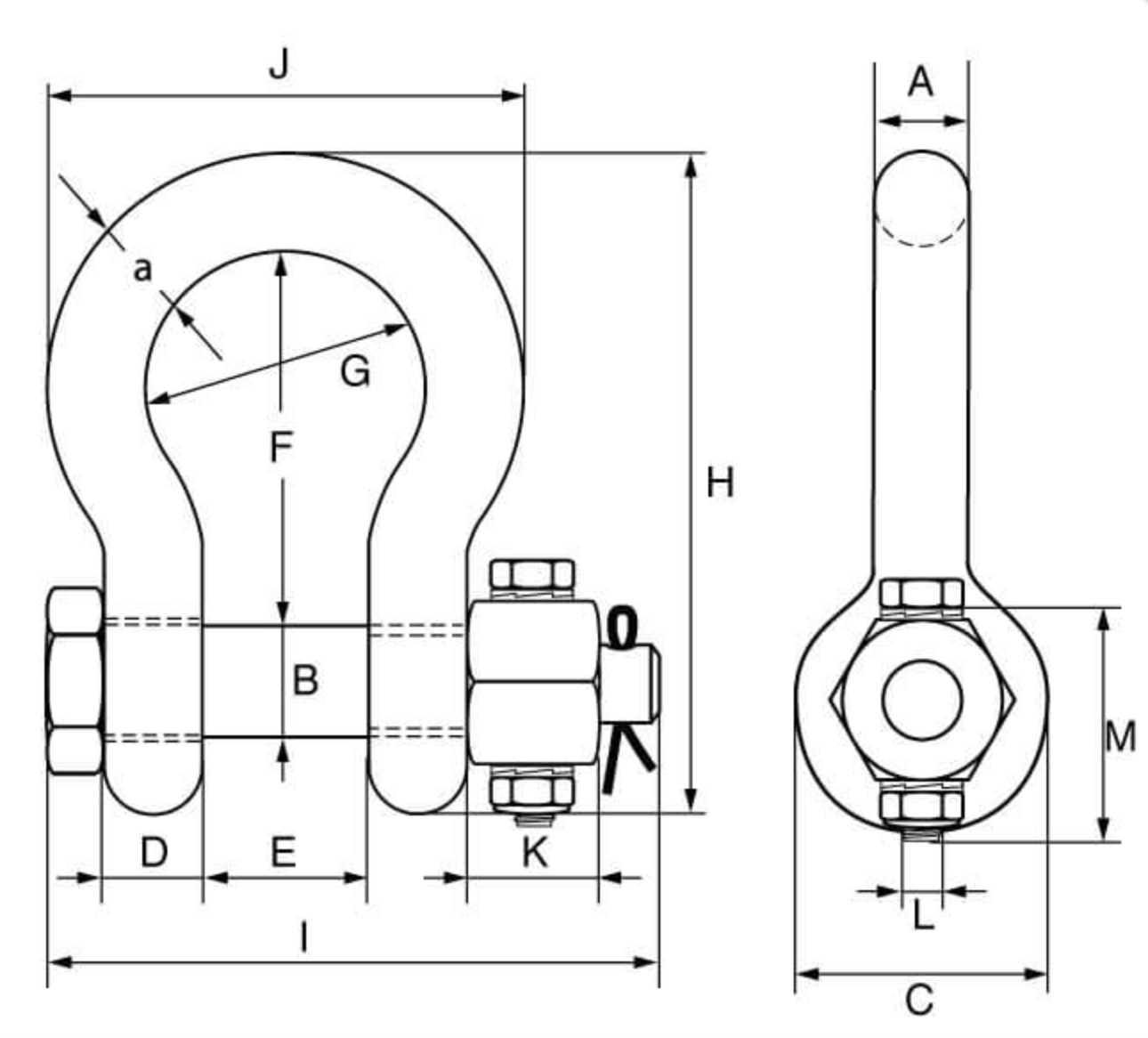

SKU W.L.L. A B C D E F G H I J K L M Torque Weight
t mm mm mm mm mm mm mm mm mm mm mm mm mm Nm kgs
269-34-1 2 13.5 16 34 13.5 22 51 32 89 82 63 13 M6 35 8.4 0.42
269-34-2 3.25 16 19 40 16 27 64 43 110 98 79 17 M6 40 8.4 0.74
269-34-3 4.75 19 22 47 19 31 76 51 129 114 94 19 M6 45 8.4 1.18
269-34-4 6.5 22 25 53 22 36 83 58 144 130 107 22 M8 50 20 1.77
269-34-5 8.5 25 28 60 25 43 95 68 164 150 124 25 M8 55 20 2.58
269-34-6 9.5 28 32 67 28 47 108 75 185 166 137 27 M10 60 39 3.66
269-34-7 12 32 35 74 32 51 115 83 201 178 154 30 M10 65 39 4.91
269-34-8 13.5 35 38 80 35 57 133 92 227 197 170 33 M10 70 39 6.54
269-34-9 17 38 42 89 38 60 146 99 249 202 183 19 M8 75 20 8.19
269-34-10 25 45 50 104 45 74 178 126 300 249 226 23 M8 90 20 14.22
269-34-11 35 50 57 111 50 83 197 138 331 269 250 26 M10 100 39 19.85
269-34-12 42.5 57 65 134 57 95 222 160 377 301 287 29 M12 110 68 28.33
269-34-13 55 65 70 145 65 105 260 180 433 330 329 32 M12 120 68 39.59
269-34-14 85 75 83 162 73 127 329 190 527 380 355 39 M12 140 68 62
