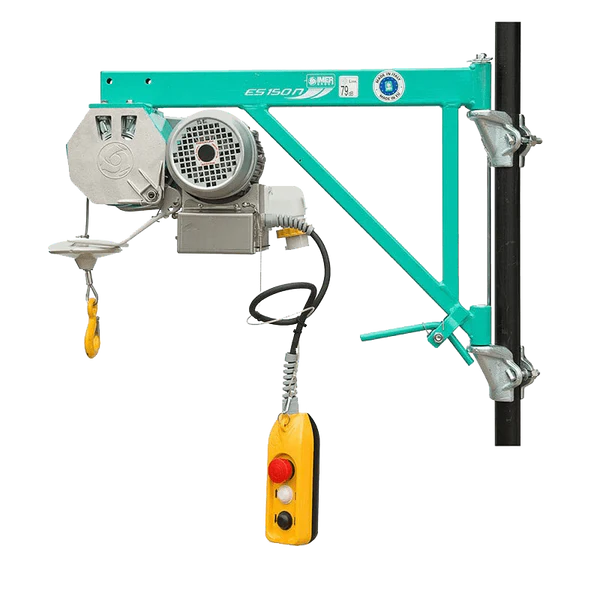

IMER ES150 Scaffold Hoist 150kg - 110v - 30m High Capacity
The ES150 IMER Scaffold Hoist - 150Kgs from IMER is a quality, reliable industry favourite site hoist. 150 kg capacity, boasting a lifting height of 30m and a fast lifting speed of 18.5m/min. 110-volt power supply and waterproof 1.5m pendant and plug. These quality-made hoists are fitted with upper-limit safety devices to protect from the over the lifting of goods.
- IP67 plug
- Trolley available for use with a gantry
- Upper limit safety device
- Direct control with 3-pushbutton IP65 1.5 m pendant control
- Scaffold clamps
- Self-braking motor
Please note some images show 230v connector, these are not standard supply within the UK market and are shown for illustration purposes only.
SCAFFOLD HOIST ONLY
110v and 230 versions available.
For 110v Please order SKU 256-1-2 and 230v please order SKU 256-1-1
Spec
SKU |
|
294-1-2 |
Max Capacity |
kg |
150 |
Av. Full Load Lifting Speed |
m/min |
19 |
Max. Working Height |
m |
30 |
Steel Rope Dia. |
mm |
5 |
Rope Length |
m |
31 |
Electric Power Supply |
V /Hz |
110 / 50 Sph (294-1-2)
|
Motor Power Rate |
kW |
0.45 |
Motor Speed |
rpm |
1310 |
Running Current 230v (110v) |
A |
4.8 (14) |
Weight |
kg |
39 |
Dimensions w/l/h |
mm |
330/770/520 |
Packing Dimensions w/l/h |
mm |
350/820/500 |
