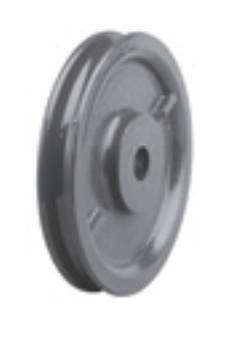

Heavy Wire Rope Sheaves made of Cast Iron (Model No. 27)
Skip to product information
1 of 1

ORPTECH

Heavy Wire Rope Sheaves made of Cast Iron (Model No. 27)

Heavy Wire Rope Sheaves made of Cast Iron (Model No. 27)

SKU: 182-27-110

Read More
Regular price £43.20
Regular price RRP Sale price TODAY'S PRICE £43.20

In stock (3)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Heavy Wire Rope Sheaves made of Cast Iron (Model No. 27)

Turned groove, drilled shaft hole, with solid web.

Also available with red brass bushing (version "R").

Range of pulley capacity from 1000kg up to 3200kg.

Range of pulley diameter from 110mm up to 400mm

Please note, these products have a lead-time of around 3 to 4 weeks from order date if not shown in stock, please email sales@rigginguk.co.uk for a formal quotation if required

Specification

SKU   182-27-110 182-27-135 182-27-165 182-27-190 182-27-220 182-27-245 182-27-270 182-27-300 182-27-325 182-27-350 182-27-400
 Sheave External Ø mm 110 135 165 190 220 245 270 300 325 350 400
Groove Base Ø mm 92 115 139 160 184 207 230 254 279 300 355
Groove Radius mm 6 6 7 8 10 12 12.5 12.5 12.5 13 14
Groove Depth mm 9 10 13 15 18 19 20 23 23 25 26
Rim Width mm 21 22 24 28 32 37 38 39 39 43 48
Bore for Bolt mm 18 20 24 26 28 32 34 40 48 50 60
Hub Length mm 24 24 29 31 36 40 42 42 46 46 50
Hub Ø mm 50 57 65 72 82 94 100 100 110 130 140
Rope Ø Max. mm 11 11 13 15 19 22 23 23 23 24 26
Load Capacity (in kg). kg 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 3200
Weight (in kg) approx. kg 0.8 1.3 2 2.9 4.2 6 6.8 7.5 9.7 12 17.6
