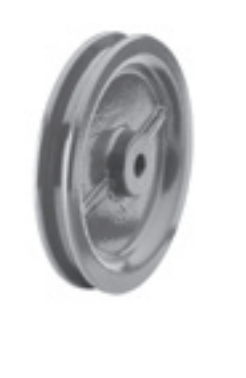

Rope and Gate Sheaves made of Cast Iron (Mode No. 30)
With round, turned groove and drilled shaft hole.
Range of pulley capacity from 125kg to 350kg
Range of pulley diameter from 80mm to 200mm
Please note, these products have a lead-time of around 3 to 4 weeks from order date if your required quantity is not in stock in our UK warehouse, please email your enquiry to sales@rigginguk.co.uk.
Specification
SKU |
|
182-30-80
|
182-30-100 |
182-30-120 |
182-30-140 |
182-30-160 |
182-30-180 |
182-30-200 |
Sheave External Ø
|
mm
|
80
|
100
|
120
|
140
|
160 |
180 |
200 |
Groove Base Ø
|
mm
|
64 |
80 |
96 |
112
|
130 |
148 |
166 |
Groove Radius
|
mm
|
5
|
6 |
7 |
8 |
8.5 |
9 |
10 |
Groove Depth
|
mm
|
8 |
10 |
12 |
14 |
15 |
16 |
17 |
Rim Width
|
mm
|
18 |
21 |
22 |
24 |
24 |
27 |
30 |
Bore for Bolt
|
mm
|
10 |
12 |
14 |
16 |
18 |
18 |
18 |
Hub Length
|
mm
|
22 |
24 |
25 |
27 |
34 |
35 |
38 |
Hub Ø
|
mm
|
24 |
28 |
32 |
38 |
42 |
45 |
50 |
Rope Ø Max.
|
mm
|
9 |
11 |
13 |
15 |
16 |
17 |
19 |
Load Capacity (in kg).
|
kg
|
125 |
150 |
200 |
250 |
300 |
300 |
350 |
Weight (in kg) approx.
|
kg
|
0.28 |
0.5 |
0.7 |
1.19 |
1.54 |
2.17 |
3.45 |
All dimensions in mm.
