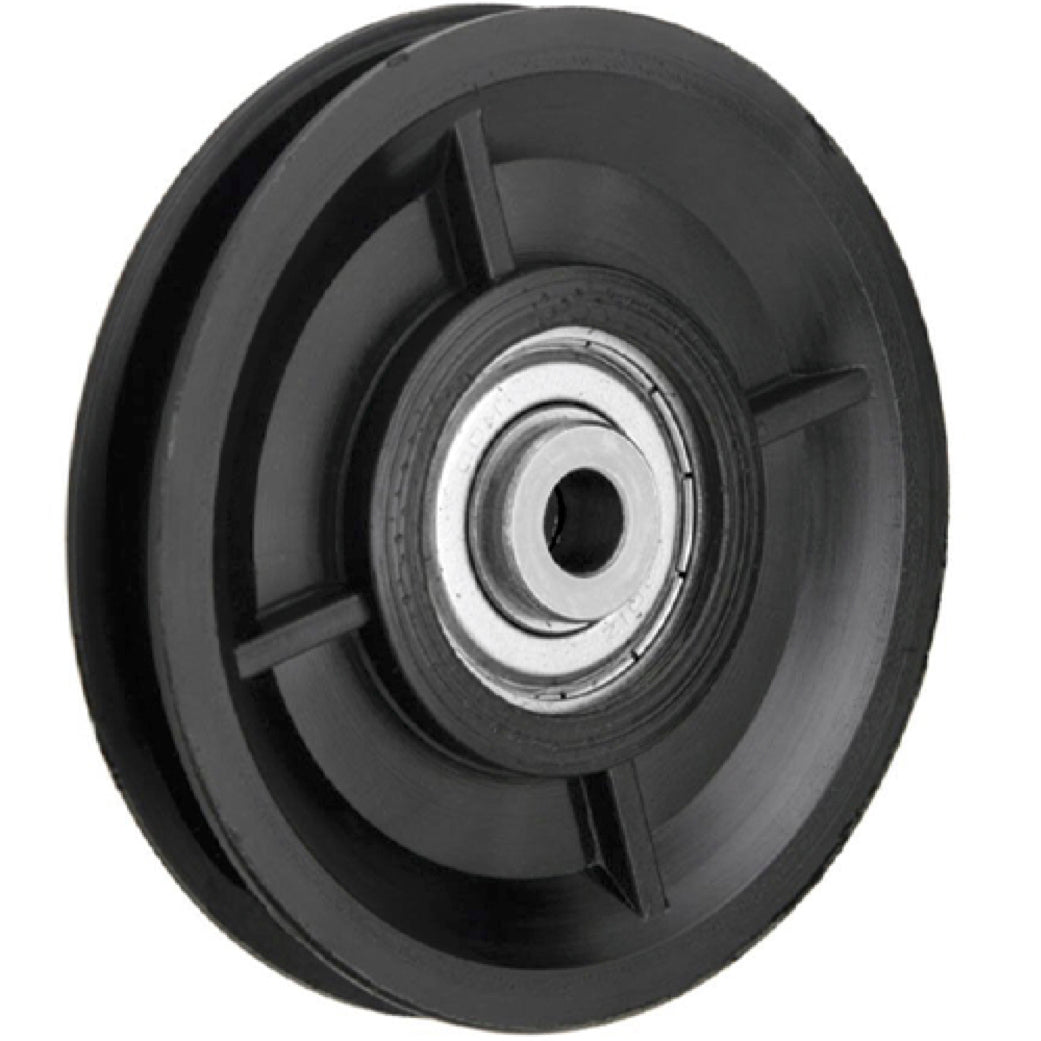

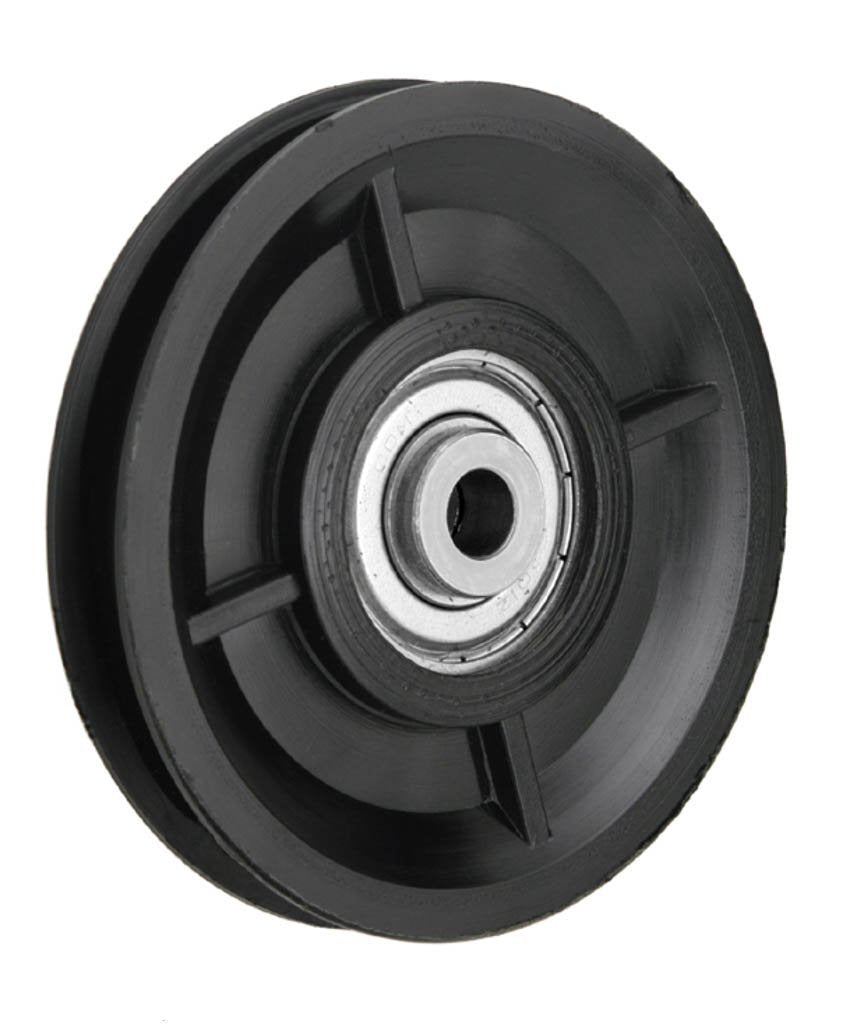

WEBI Pulley, Type ETT-104P- Polymide (Black) Pulley with ball bearing (ETTER)
- WEBI, High-resistance Polyamide (Ultramide) black pulley with ball bearing - Type ETT-104P
- The 104P range has capacities from 60kg - to 150kg
- Four models, to suit 3, 4, 5 mm - wire rope (see specification PDF for full details)
- For use with manual and powered winches
- SWISS MADE "ETTER"
- All four model types available from stock
- Suitable for applications in wet / damp / offshore / pharmaceutical / oil & gas applications, where high resistance is required.
Spec
Model |
Capacity |
Pulley Diameter |
Rope Diameter |
Weight |
155-6-1 |
60 kg |
50 mm |
3 mm |
0.05kg |
155-6-2 |
70 kg |
60 mm |
4 mm |
0.05kg |
155-6-3 |
100 kg |
80 mm |
5 mm |
0.06kg |
155-6-4 |
150 kg |
100mm |
5 mm |
0.12kg |
Downloads
Pulley Cat 2018
Etter 104P Pulley Data Sheet
