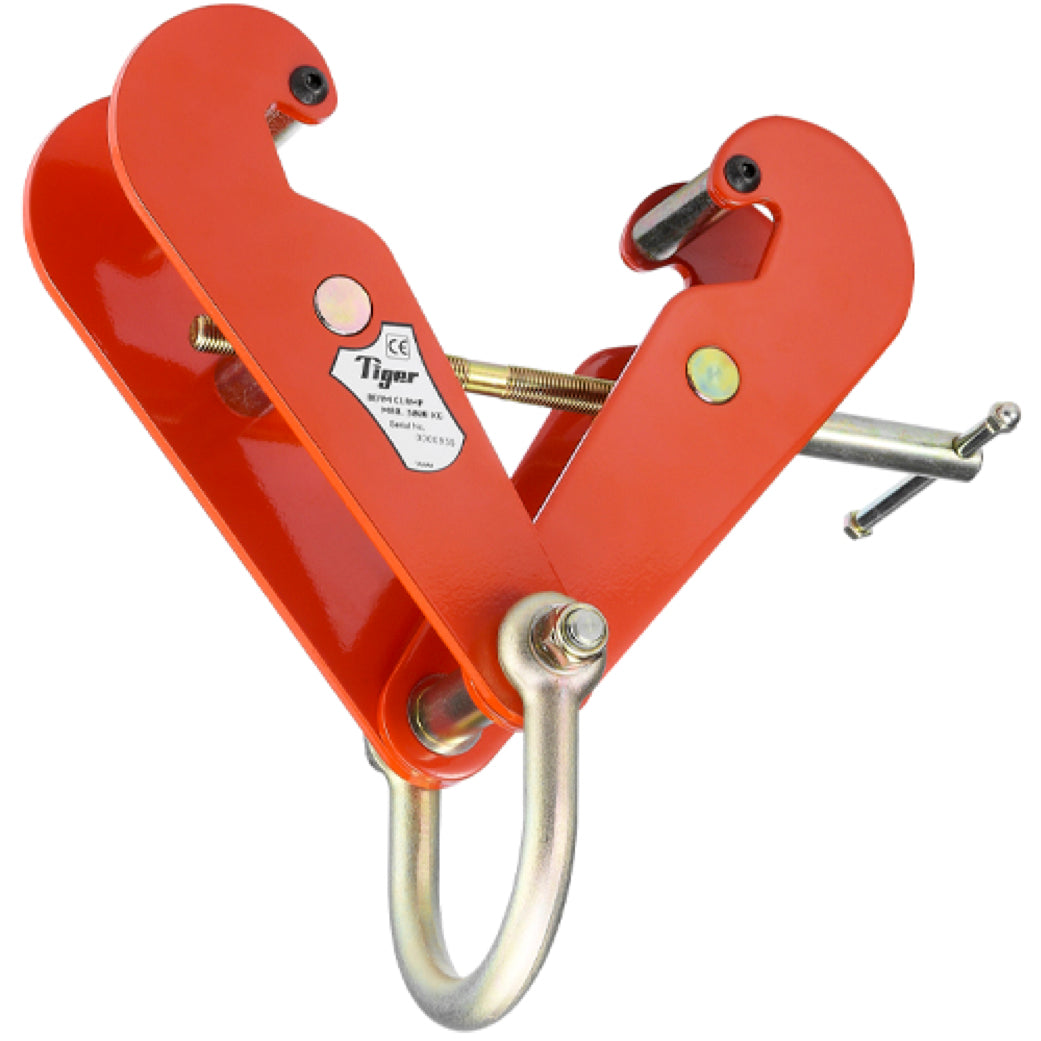

Beam Clamp with Shackle Type BCS

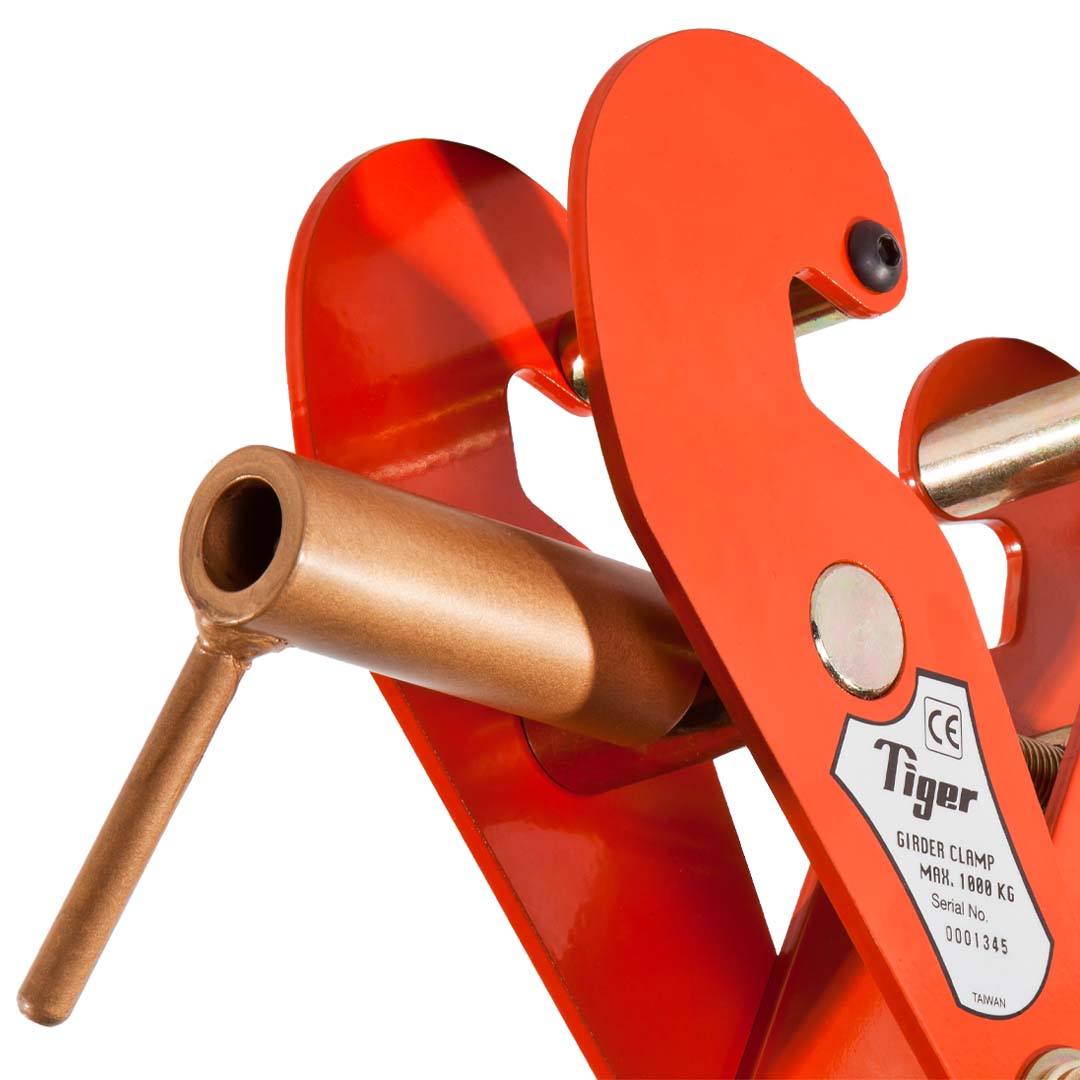

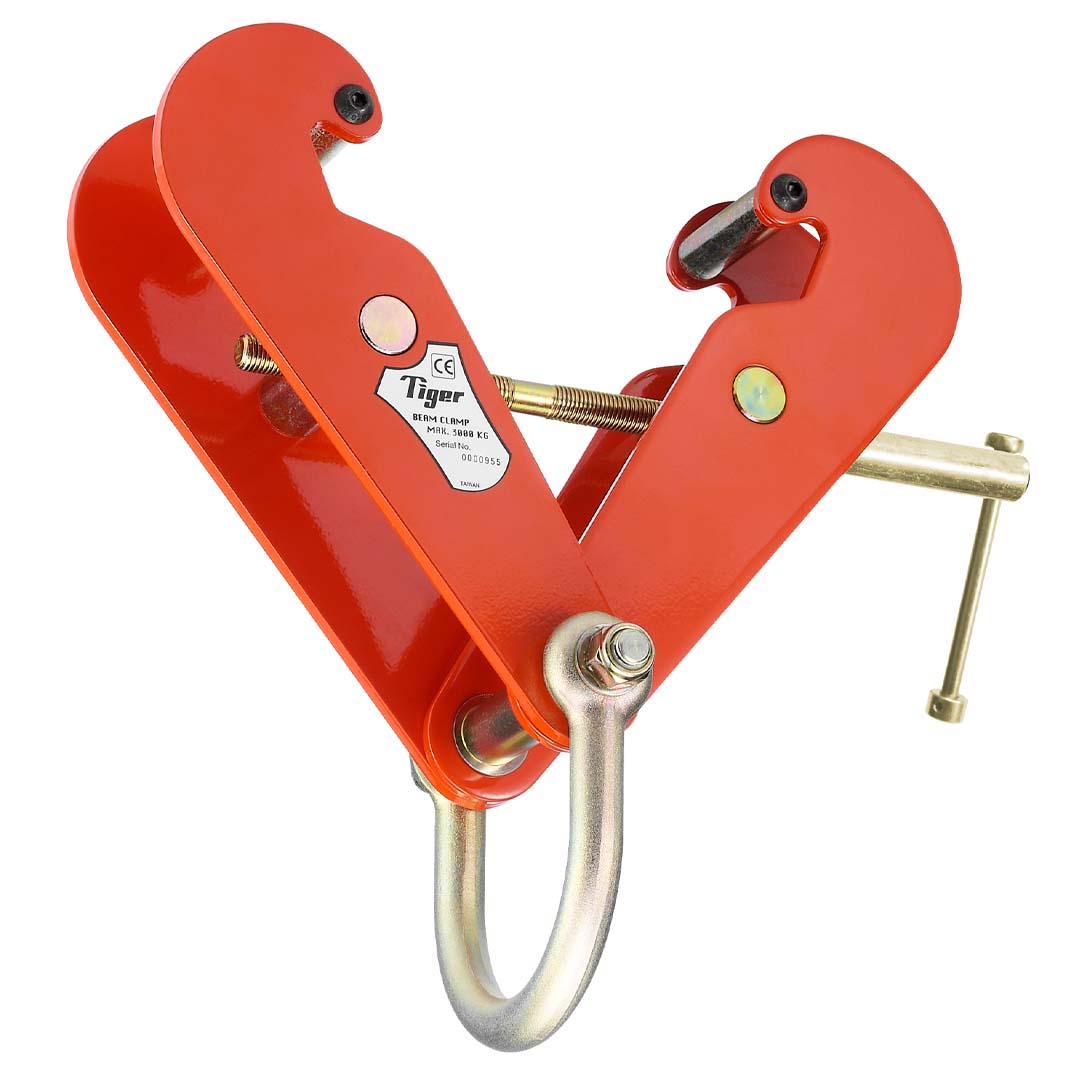

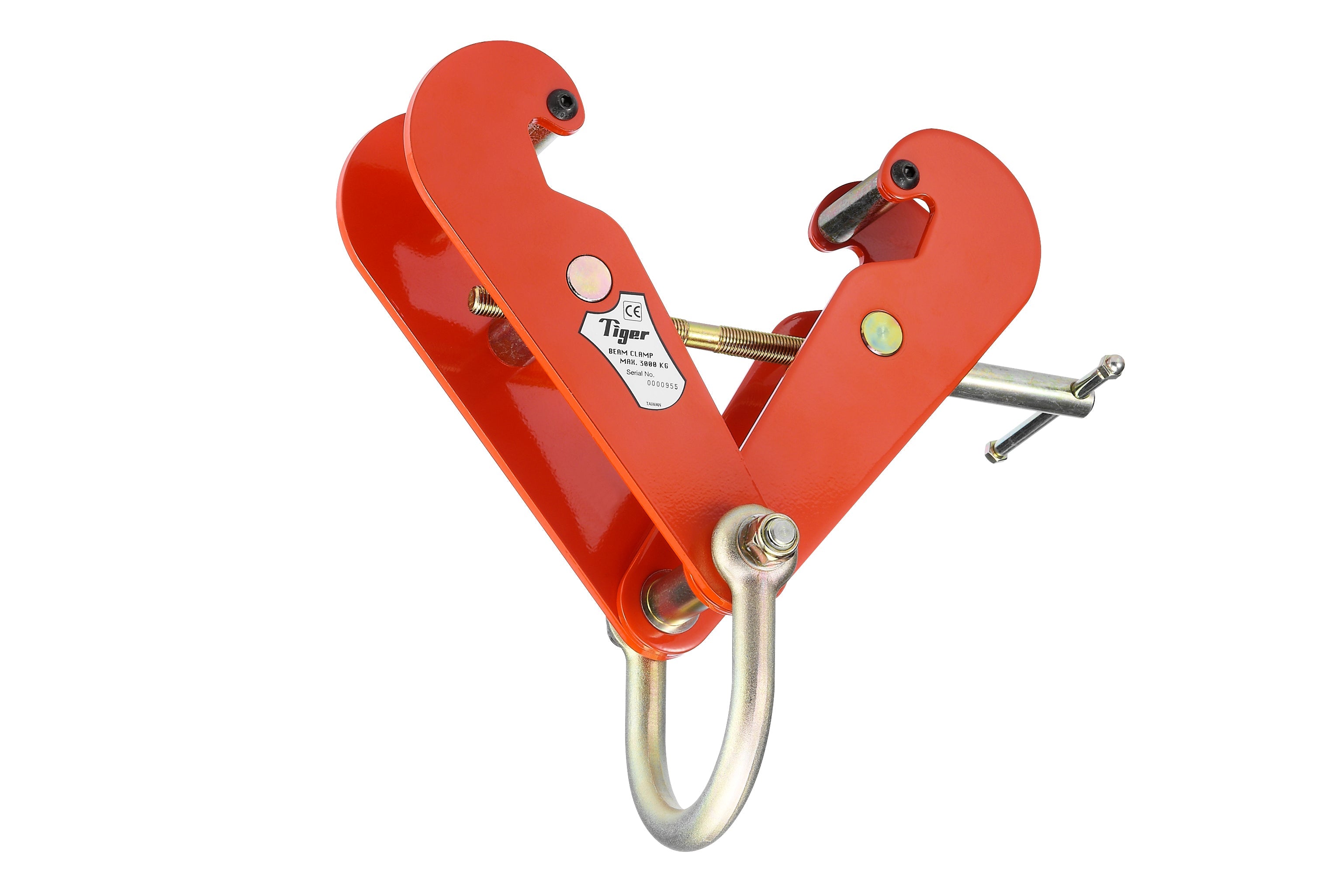

Tiger Adjustable Beam Clamp with Shackle.

Features

• Range from 1.0t to 10.0t
• Quick and versatile rigging point for hoisting equipment
• Shackle suspension point
• Highly flexible – for lifting, pulling or as an anchor point
• Multidirectional adjusting screw spindle for easy attachment and safe and secure grip
• Wide Beam flange adjustment range
• Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
• Factor of safety: 5:1 for straight pulling and lifting, 4:1 at angles up to 45°(applying the appropriate reduction in WLL)
• Optional locking device


These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991.

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

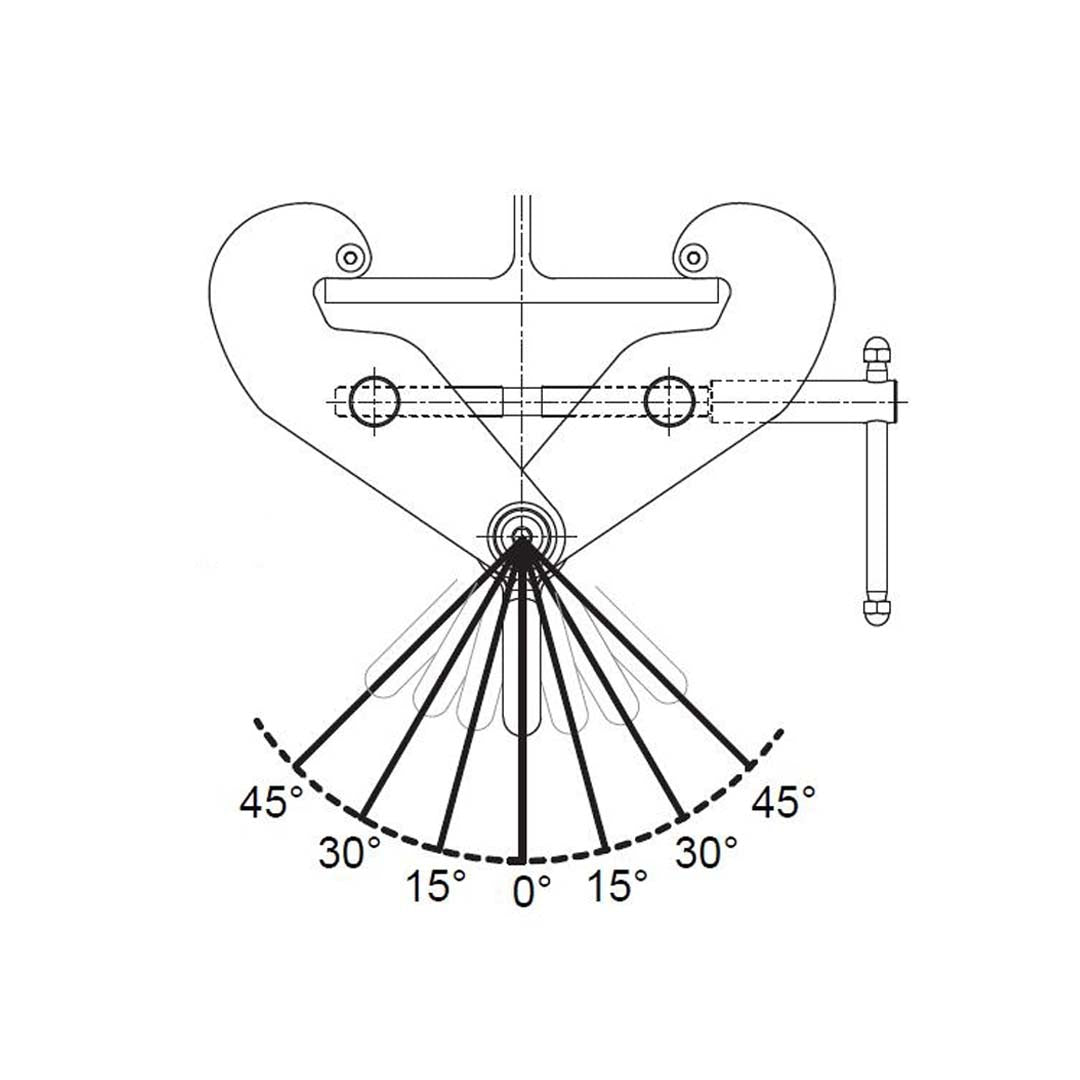

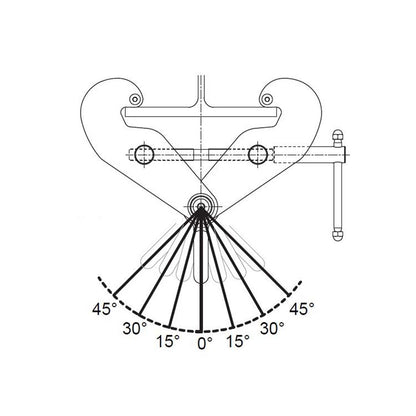

Reduction in working load limits when side loads applied:

Angle from vertical	0°	0°   – 15°	15°   – 30°	30°   – 45°
Reduction Factor	Nil	17%	34%	50%
Product Code	WLL	WLL	WLL	WLL
BCS-0100	1000kg	830kg	660kg	500kg
BCS-0200	2000kg	1660kg	1320kg	1000kg
BCS-0300	3000kg	2500kg	2000kg	1500kg
BCS-0500	5000kg	4100kg	3300kg	2500kg
BCS-1000	10000kg	8300kg	6600kg	5000kg







The above working load limits and derations have been established for Tiger BCS model clamps and apply only for overhead beam attachments. They DO NOT apply when used for lifting beams. Our Tiger BCU clamp has been specifically designed for this purpose. The above tables apply only to the Tiger BCS model and we advise that structural calculations are carried out on all beams and supporting steel work by qualified engineering departments to ensure safe operation.



Download - Technical-sheet-BCS-202410.pdf
