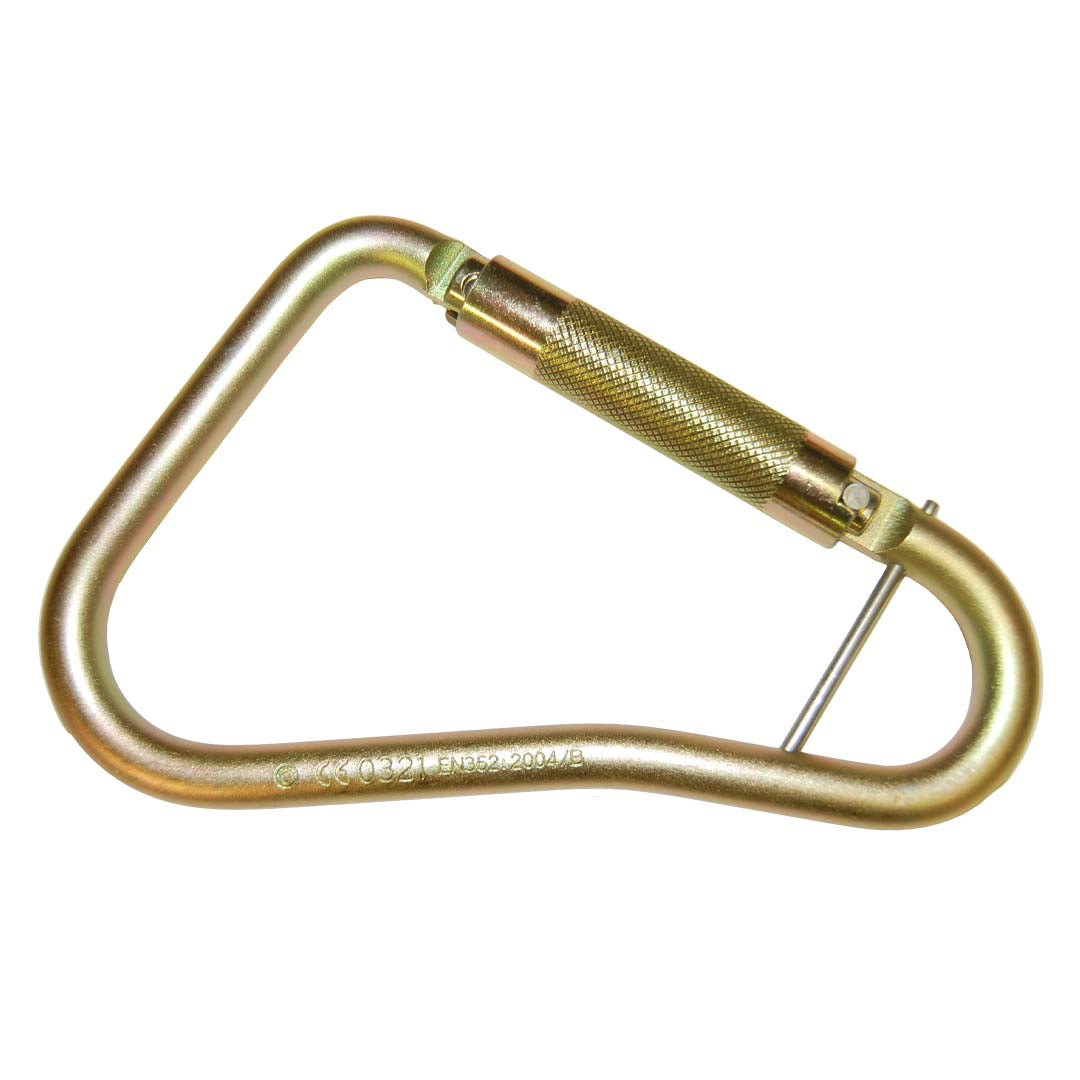

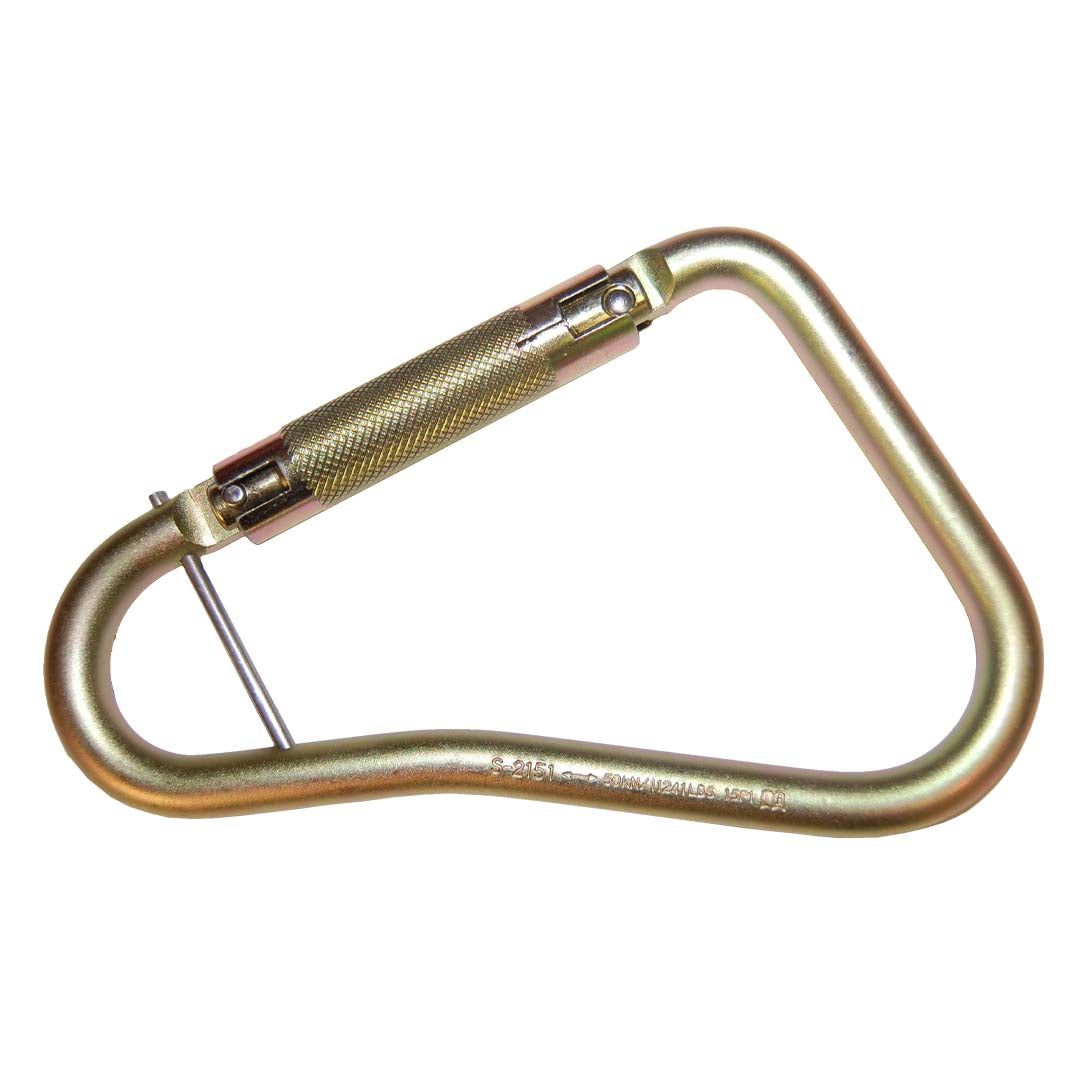

Tiger Rated Offset Steel Scaffold Hook with Captive Pin / Twist Lock
- Quick and versatile rigging point for personal fall protection equipment
- These units meet the requirements within EN 362:2004/B
- Minimum breaking strength 50kN / 11240lb
- High tensile steel
- CE Certified - CE 0321
- Scaffold hooks are provided with captive pins to prevent rotation during use
Spec
Product Code |
Description |
Minimum Breaking Strength |
Dimensions (mm) |
Weight (g) |
A |
B |
C |
224-1-21 |
Offset Steel 'Scaffold' Hook with Captive Pin/Twist Lock |
50kN / 11240lb |
142 |
222 |
56 |
723 |
Downloads
Product data sheet
Legislation
Certification:
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. Each unit is also supplied with Manufacturer’s Instructions for Use.
Recommendation:
We advise that structural calculations are carried out on all beams and supporting steel work by qualified engineering departments to ensure safe operation.
